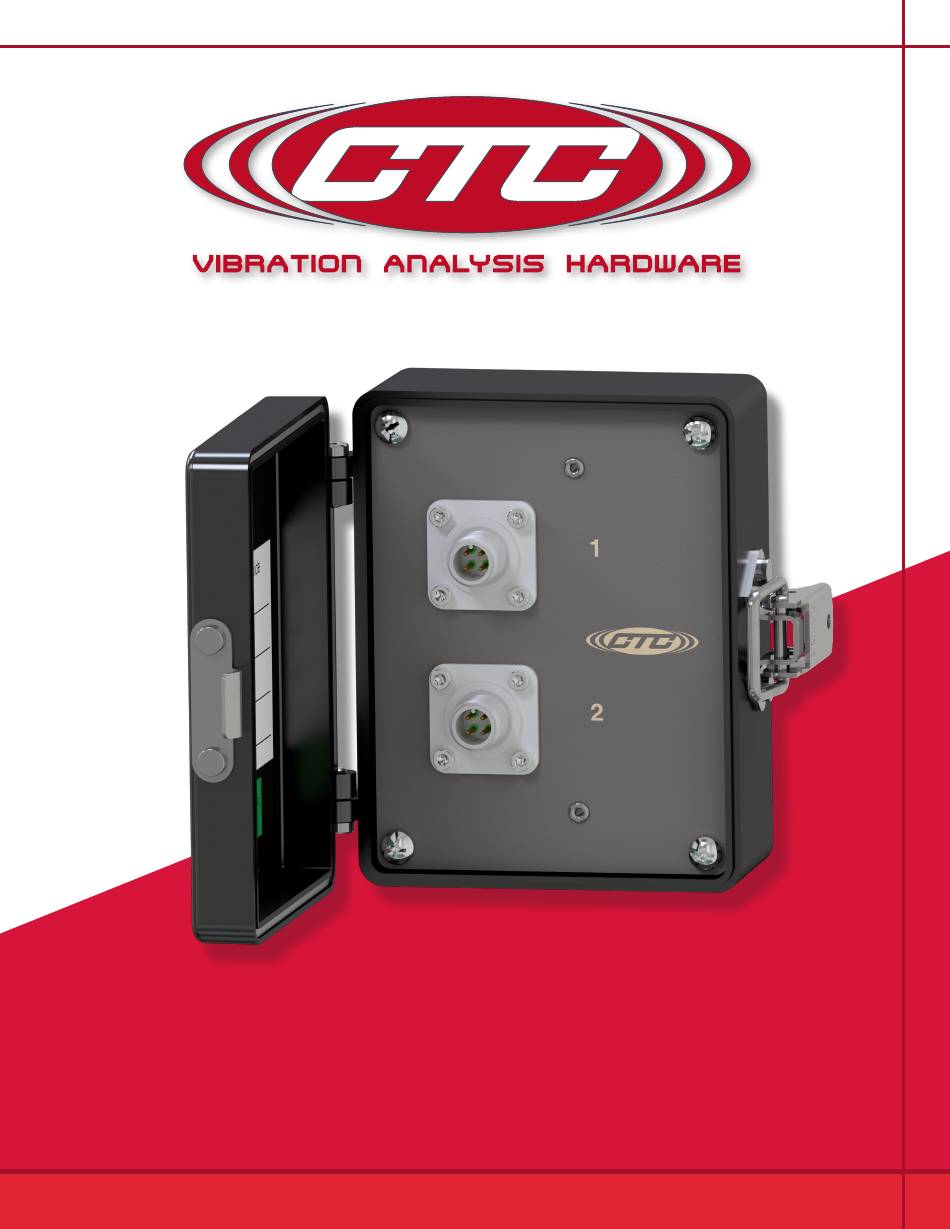

- Page 1 MX505 Mini-MA X X Enclosure MX505 Mini-MA X X Enclosure 2 Triaxial Inputs 2 Triaxial Inputs Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
Introduction CTC’s MX505 Mini MAXX Box is a common cable termination point for triaxial sensors to interface with portable data collectors . CTC MX505 Series Boxes provide M12 connector mini-MIL outputs for each channel . MX505 Overview The MX505 is a powder-coated aluminum junction box that provides connection for up to two triaxial accelerometers through four-conductor input wiring to a portable data collection unit . -
Page 4: Product Dimensions & Diagram
Product Dimensions Front View Side View Figure 1. Dimensions Measurement M12 Style Location Card Connector Figure 2. Diagram... -
Page 5: Mounting Instructions
Mounting Instructions Independent stainless steel mounting feet are included on the enclosure . Wall anchoring screws are not included . Note: If you have purchased a MX505 Box without cable entries provided, you should add your own entry prior to mounting the enclosure . CTC does not recommend putting holes in the top of the enclosure as it will cause restricted access to the wire termination connection points and also allow possible moisture ingression . -
Page 6: Conduit Entry
Conduit Entry If you are running conduit to your enclosure, ensure the conduit cable entry is located at the bottom of the enclosure when mounted . Note: To ensure moisture will not flow into the enclosure, a hole should be drilled at the lowest point in the conduit to provide drainage for any moisture . -
Page 7: Grounding
Grounding Ensure the shield ground wire on the MX505 Series MAXX Box is grounded to earth ground . A. Mounting to Earth Ground When mounting an MX505 Series MAXX Box to earth ground (such as an I-Beam), no additional steps are necessary, as the enclosure is grounded internally . Figure 5. -
Page 8: Sensor Installation
B. Mounting to Non-Grounded Structure When mounting the MAXX Box to a non-grounded structure, ensure the shield ground wire or customer-supplied ground wire is tied to a source of earth ground . Figure 6. Ground Wire Placement Sensor Installation Installation of Sensors/Signal Input Cable Feed blunt-cut end through the cable entry at the bottom of the enclosure . - Page 9 Figure 8. Bottom View Figure 7. Front View Strip outer jacket of cable back 1¼ in . and remove all of the shielding . Separate the internal wires from the shield and twist the shield . Strip red and black insulation back ¼ in . ¼”...
- Page 10 Inputs SENSOR #1 SENSOR #2 Sensor Inputs Red = Positive Y Axis Green = Positive X Axis White = Positive Z Axis Black = Common Grey = Shield (Ground) Figure 10. Field Wiring for Four-Conductor Triaxial Sensor Inputs Mark the Measurement Location Card located on the inside front cover with a description of each measurement location .
-
Page 11: Post-Installation Testing
Post-Installation Testing The TM1018 Accelerometer Verification Meter can be used to verify cable conductivity, sensor location and proper wiring connections . The Verification Meter will indicate if the sensor, cable and/or junction box is in working condition . It will also confirm bias voltage of the accelerometer, which will inform you of the operation of the internal accelerometer amplifier . -
Page 12: Contact Information
Person B disconnects the cable from the accelerometer, and the TM1018 should respond with an “OPEN” LED . Reconnect the cable to the accelerometer, and the TM1018 should respond with a “NORMAL” LED . Repeat for each measurement location to verify that accelerometer location is properly identified at the termination box .
