- Page 1 USER GUIDE Pace RNG210N BRINGING TECHNOLOGY HOME www.pace.com...
-
Page 3: Table Of Contents
CableCARD™ is a trademark of Cable Television Laboratories, Inc. TERMS AND CONDITIONS FOR USE OF SOFTWARE (“TERMS”)......18 Other trademarks listed herein are the property of their respective owners. © 2011 Pace plc. All rights reserved. Pace and are trademarks and/or registered trademarks of Pace plc... -
Page 4: Safety Information
Note to the installer To ensure correct operation, use this set-top only with the Pace-approved power supply unit provided. If you use an unapproved alternative, you will This reminder is provided to call the attention of the cable-TV-system invalidate the warranty. -
Page 5: Important Safety Instructions
The wide blade or the third prong are provided for your safety. If the Service address: provided plug does not fit into the outlet, consult an electrician for Pace Americas Inc. replacement of the obsolete outlet. 3701 FAU Boulevard, Suite 200, Boca Raton, Florida 33431 U.S.A. -
Page 6: Power Sources
SAFETY INFORMATION (cont.) In addition to the Important Safety Instructions, please read the Safety temperature is too high, make sure there is sufficient ventilation (see below) Information below. and that your set-top is not directly on top of or underneath other equipment. Ventilation Power sources Slots and openings in the casing of your set-top are provided for ventilation,... -
Page 7: Replacement Parts
SAFETY INFORMATION (cont.) Water and moisture Replacement parts Do not expose your set-top to rain or moisture, dripping or splashing, and When replacement parts are required, be sure that the service technician has ensure that no objects filled with liquids, such as vases, are placed on your used replacement parts specified by the manufacturer or that have the same set-top. -
Page 8: Safety Aspects Of Connections
Therefore you must install your set-top near to the wall AC outlet, which Pace-approved power should be easily accessible. supply unit provided. If you use an unapproved If you are in any doubt about the power supply cord, its plug or its alternative, you will connection, consult a qualified electrician. -
Page 9: Regulatory Information
SAFETY INFORMATION (cont.) Regulatory information CAUTION: Do not attempt to modify your set-top without written authorization from the manufacturer. Unauthorized modification could void your authority to operate your set-top. NOTE Your set-top has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 10: Rear Panel
REAR PANEL CableCARD™ module AUDIO OUT (behind cover) Removal Audio outputs (stereo, L and R) will interrupt your service eSATA COMPONENT VIDEO HDMI For connection to an optional Component video output Video and audio output for external hard disk (if enabled). for analog HDTV digital HDTV. - Page 11 REAR PANEL (cont.) CABLE IN Connect the cable service here. 1394 Connect to a TV with a 1394 port or to any other 1394-compatible device. COMPONENT VIDEO If your HDTV does not have an HDMI connector, connect your HDTV here. AUDIO OUT Connect to the L and R audio inputs on your stereo TV, stereo VCR, or optional stereo amplifier.
-
Page 12: Connecting The Equipment
CONNECTING THE EQUIPMENT In order for you to view programs broadcast in high-definition, your set-top must be connected to a suitable HDTV WARNINGS or computer monitor. Do not connect your set-top (or Your equipment should have been connected up by your installer. However, if you need to disconnect and any other equipment such as a TV or VCR) to the power supply until reconnect your equipment, read pages 10 through 14. -
Page 13: Setup A - Home Theater System With Hdtv (Hdmi Connection)
CONNECTING THE EQUIPMENT (cont.) Setup A - Home theater system with HDTV NOTE (HDMI connection) Copy protection via an HDMI secure link Setup A (see page 12) uses an HDMI connector to connect to the HDTV. This displays the highest quality picture on the HDTV and also means there will be no picture degradation on any copy-protected programs (provided the The HDMI link between your set- link remains secure –... - Page 14 CONNECTING THE EQUIPMENT (cont.) Setup A: (HDMI) HDTV RIGHT AUDIO IN LEFT AUDIO IN ANTENNA/ VIDEO IN RF IN COMPONENT VIDEO IN HDMI COMPOSITE COMPONENT Y IN VIDEO OUT VIDEO OUT POWER LEFT PB IN AUDIO DIGITAL AUDIO OUT RIGHT POWER PB/CB PR IN...
- Page 15 CONNECTING THE EQUIPMENT (cont.) Setup B: (Component video) RIGHT HDTV AUDIO IN LEFT AUDIO IN VIDEO IN ANTENNA/ RF IN COMPONENT VIDEO IN HDMI COMPOSITE COMPONENT Y IN VIDEO OUT VIDEO OUT POWER LEFT PB IN AUDIO DIGITAL AUDIO OUT RIGHT POWER PB/CB...
-
Page 16: Connecting The Power Supply Unit To Your Set-Top
CONNECTING THE EQUIPMENT (cont.) WARNINGS Do not connect your set-top (or any other equipment such as a TV or VCR) to the AC power supply until you have properly connected all the other cables. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. -
Page 17: Lightning Storms
CONNECTING THE EQUIPMENT (cont.) Lightning storms Disconnect your set-top’s power cord during lightning storms. A lightning storm may affect your set-top, if it is on during the storm. It may appear that it has stopped working, but you can easily restore its operation as follows: Unplug your set-top’s power supply unit from the wall AC outlet. -
Page 18: Pairing Your Remote Control With Your Set-Top
CONNECTING THE EQUIPMENT (cont.) Pairing your remote control with your set-top NOTES Before using your set-top with your TV, you must pair your remote control with your set-top. Your cable TV service-provider determines the digital channels, 1. Put the two AA batteries provided into your remote control. services, and screen information 2. -
Page 19: Front Panel

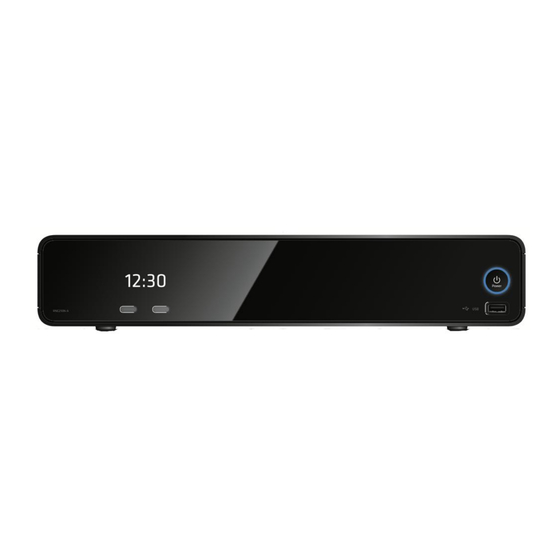

FRONT PANEL Power button Display (power) light Shows the time or the current To turn your set-top Lights blue when your set-top channel number, and the setting on/off. is on and is not lighted when when you make user settings. your set-top is off. -
Page 20: Terms And Conditions For Use Of Software ("Terms")
3. You may not transfer any of your limited rights in the Software without the prior the Software); or written consent of Pace, and if consent is provided then the Software shall only be transferred in conjunction with the transfer of the Product AND ONLY IF the 5. -
Page 21: Open Source Licenses
These Terms are governed by the laws of the State of New York and you may only bring Copyright © 1998, 1999, 2000 Thai Open Source Software Centre Ltd and Clark Cooper. claims exclusively in New York courts and Pace shall be entitled to bring a claim in the Copyright © 2001, 2002, 2003 Expat maintainers. - Page 22 NOTES...
- Page 23 NOTES...
- Page 24 Pace and are trademarks and/or registered trademarks of Pace plc. 501-3443200...
