Pace TDC575D series Manual

Pace TDC575D Series

CONNECTING THE EQUIPMENT

This Quick Start Guide shows a typical connection set-up for a TV, VCR, DVD player and home theater receiver. The set-up shown below uses a component
video connection to connect to the TV. This displays a much higher-quality picture on the TV than can be obtained using baseband video.
Variation
S-video also provides a better TV picture than baseband video, therefore, if the TV and VCR have S-video connectors, replace the baseband video connection
with an S-video connection to the VCR, then connect directly via an S-video connection from the VCR to the TV (or loop through the home theater receiver if
you prefer).

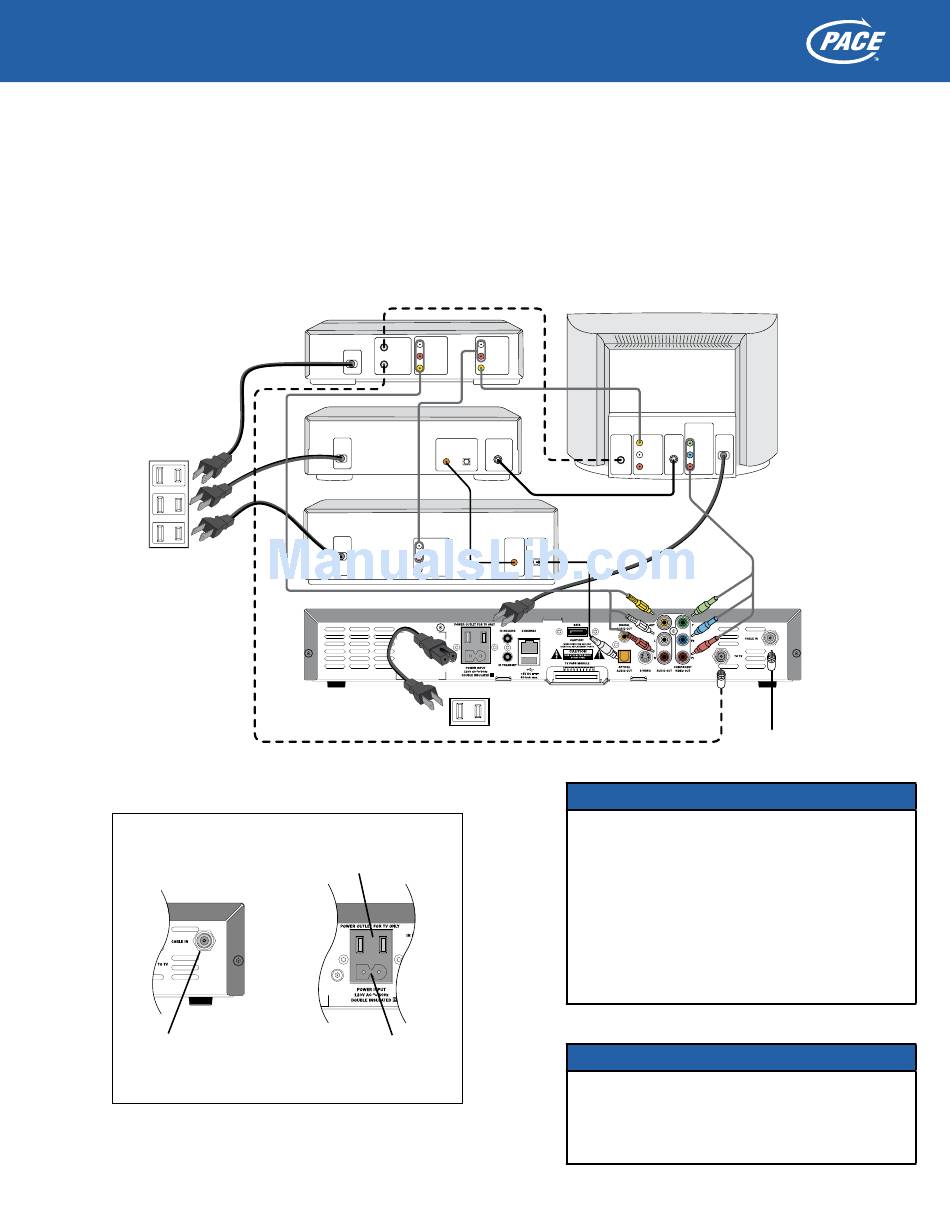

Set-up - home theater system with component video / YPbPr connection
WALL AC OUTLETS
The POWER OUTLET plug is designed only for connection to the AC
power cord for a TV. The maximum power it can supply is 500 Watts.
Do not connect any equipment that uses more than 500 Watts, or any
non-TV equipment such as a toaster or hair dryer.
The CABLE IN connector is designed for
connection to a cable network only.
You must not connect any other
equipment, such as a VCR, to this input.
VCR
LEFT LEFT
TV / RF
AUDIO IN AUDIO OUT
OUT
RIGHT RIGHT
POWER
AUDIO IN AUDIO OUT
ANTENNA/
RF IN VIDEO IN VIDEO OUT
DVD
DIGITAL AUDIO OUT
S-VIDEO OUT
POWER
COAXIAL OPTICAL
HOME THEATER RECEIVER
VCR IN
LEFT
AUDIO IN
POWER
RIGHT
AUDIO IN
VIDEO IN
WALL AC OUTLET
POWER INPUT
Quick Start Guide
TV
VIDEO IN
S-VIDEO
ANTENNA/
RF IN IN
LEFT
AUDIO IN
RIGHT
AUDIO IN
DIGITAL AUDIO IN
COAXIAL OPTICAL
AUDIO IN AUDIO IN
Do not connect your set-top (or any other equipment such
as a TV or VCR) to the AC power supply until you have
properly connected all the other cables. Disconnect your set-
top from the AC power supply before you disconnect any
other equipment from its rear panel.
The only way to disconnect your set-top from the AC power
supply is to remove the AC power cord (or switch the wall
socket-outlet switch, if present, to its OFF position). Your
set-top must therefore be installed near to the AC power
socket-outlet, which should be easily accessible.
How you set up your equipment may depend on your home
theater receiver. For example, the optical and digital audio
inputs may be associated with particular video inputs. Please
see your home theater user information for further details.
COMPONENT
VIDEO IN
Y IN
POWER
PB/CB IN
PR/CR IN
CABLE INPUT
WARNINGS
NOTE
