Alcatel-Lucent 7310

AC Metro Cell AWS (B4) Kit

MC-AR1, MC-AR2, MC-AR3

Installation Manual

Need help?

Do you have a question about the 7310 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alcatel-Lucent 7310

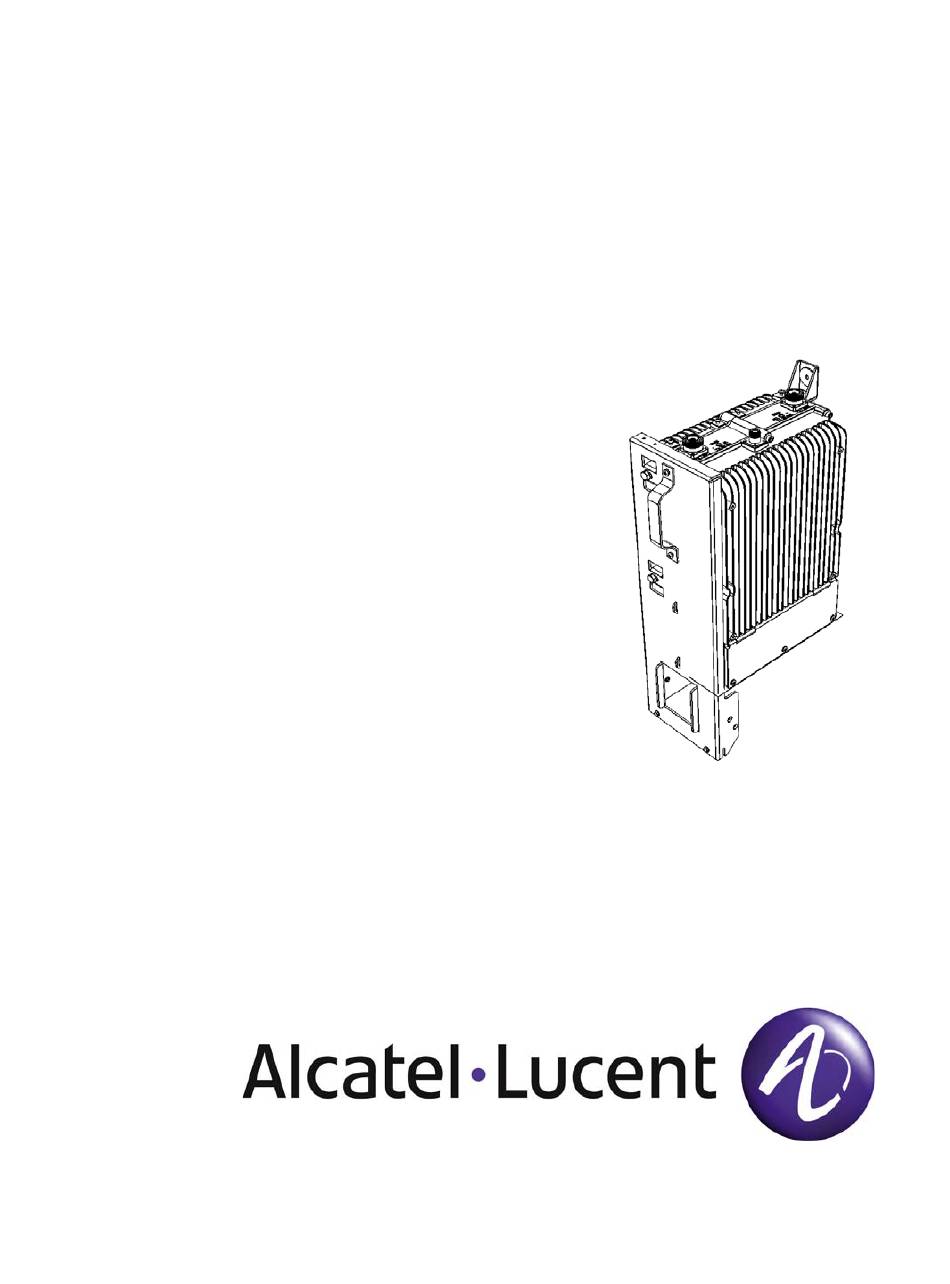

Page 1 Alcatel-Lucent 7310 AC Metro Cell AWS (B4) Kit MC-AR1, MC-AR2, MC-AR3 Installation Manual...
Page 2 AC M AWS (B4) K LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Document Information Identification Alcatel-Lucent AC Metro Cell AWS (B4) Installation Instructions 1000023160 Rev 01 7/14...
Page 3 NSTRUCTIONS Before You Begin How to Get Assistance If you need help with your Alcatel-Lucent products, contact one of our TAC Engineers at 866-582-3688. Packaging Inspection If the shipping container shows evidence of rough handling, inspect the equipment carefully for shipping damage.
Page 4 Failure to comply with these precautions or with specific warnings elsewhere in this manual risks personal injury and violates safety standards of design, manufacture, and intended use of the equipment. Alcatel-Lucent is not responsible for any equipment damage or poor operating performance when these guidelines are not followed or when noncertified installers perform the work.
Page 5 Substituting Parts or Making Modifications Do not install substitute parts or perform any modifications to factory-installed equipment without permission from Alcatel-Lucent. Moving Cabinet Factor in the combined weight of all materials in the cabinet before engineering a lifting apparatus; consult a site engineer to verify adequate support.
Page 6 AC M AWS (B4) K LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Notes...
Page 7 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Introduction These instructions describe how to install an AC Metro Cell MCO#2 into the 7310 Metro Cell (MC-AR1, MC-AR2, MC-AR3) cabinet. MCO#1 SAR-W Rear Bracket MCO#2 Assembly Handle AC Metro Cell...
Page 8 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Kit Contents (1) Front bracket (1) Liquid-tight seal   (1) Rear bracket assembly (5) M5x10mm screws   (1) Shot-protector bracket (2) M6x16mm hex bolts   (1) Handle (2) M6 split-lock washers ...
Page 9 Failure to follow these precautions will result in death or serious injury! Threat Releases The on-site technician is responsible for acquiring threat releases before work begins. Neither Alcatel-Lucent nor its representatives will start any work without site management approval. Assemble the AC Metro Cell AWS (B4) ≡≡...
Page 10 Install the shot-protector bracket onto the AC Metro Cell. Secure the shot-protector bracket to the AC Metro Cell with (2) M5x10mm screws. Torque to 25 in-lb. Note Install spacer bracket onto the front bracket on model 7310-MC AR1. Secure with shot-protector bracket hardware and torque as listed above.
Page 11 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the handle onto the front bracket. Secure the handle to the front bracket with (2) 10-32 screws and (2) #10 split-lock washers. Torque to 25 in-lb. Screw Handle Screw Front Bracket Use a T25 Torx bit screwdriver to loosen the 3 Torx screws on the AC Metro Cell access cover.
Page 12 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Locate the gland assembly in the kit. Remove the compression nut and sealing gland from the gland body. Set the sealing gland and compression nut aside. Install the gland body into the knock-out hole from the outside.
Page 13 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Route the fiber cable through the gland body into the AC Metro Cell. Remove and discard the 2 fiber contact covers to expose the fiber contacts. Install the fiber cable connector into the SX SFP module.
Page 14 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Use a T20 torx wrench to remove the screw securing the isolation cover. Remove the isolation cover. Remove and discard the knock-out assembly illustrated below. Screw Isolation Cover Knock-out Assembly Locate the liquid-tight seal and fitting in the kit.
Page 15 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Set Up the Power Distribution Unit (PDU) ≡≡ To set up the power distribution unit (PDU) Open the PDU cover by using a flat blade screwdriver to turn the locks counterclockwise. PDU cover Locks CAUTION...
Page 16 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Remove 3 plugs from the bottom of the PDU as illustrated. Discard the plugs. PDU Bottom Plugs Install 3 liquid-tight fittings into the PDU knock-out holes as illustrated. Torque inner gland nut to 50 in-lb.
Page 17 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Insert the following cables through the liquid-tight fittings into the PDU as illustrated. PDU#2 AC feed cable through the left-side liquid-tight fitting.  MCO#2 power cable (end with longer conductors) through middle liquid-tight fitting. ...
Page 18 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Close the PDU cover. Use a flat blade screwdriver to secure the cover by turning the locks clockwise. PDU cover Locks Install the Power Distribution Unit (PDU) ≡≡ To install the Power Distribution Unit (PDU) Install the PDU onto mounting pems in the cabinet rear wall.
Page 19 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Secure the MCO#2 power and MCO#2 hold-up cables with 5 cable ties as illustrated. Note Do not connect the AC power feed at this time. MCO#2 MCO#2 Power Hold-up Cable Cable MC-AR1 or MC-AR3 Installation (only for RF cable PNs: 4000013492 and 4000013489)
Page 20 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the MCO#2 rear antenna cable (PN 4000013489) onto the diplexer port (labelled 1710-2200MHz) as illustrated. Torque to 20 ft-lb. Note Ensure rear antenna cable is positioned downward as illustrated. 1710-2200MHz Diplexer Port MCO#2 Rear...
Page 21 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Secure both MCO#2 antenna cables with (4) 8-in. cable ties as illustrated.  Important Ensure cables are not kinked or twisted. Do not bend the cable within 2 in. of the AC Metro Cell connector.
Page 22 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Feed the MCO#2 antenna cables through the front bracket opening from the rear of the AC Metro Cell. View from Front Front Bracket MCO#2 Antenna Cables Install the AC Metro Cell onto the hinge pin. Secure the AC Metro Cell to the hinge pin with (2) 12-24 self-tapping screws as illustrated.
Page 23 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the tether link and tether onto the rear bracket. Apply medium-strength thread-lock to tether link threads. Torque to 25 in-lb. Tether AC Metro Cell Tether Link Rear Bracket Install the MCO#2 antenna cables onto the top of the AC Metro Cell as illustrated. Torque MCO#2 antenna cable connectors to 20 ft-lb.
Page 24 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Secure the antenna cables to the handle and lances with (4) 8-in. cable ties as illustrated.  Important Ensure the cables are not kinked or twisted. Do not bend the cable within 2 in. of the AC Metro Cell connector.
Page 25 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Secure the GPS cable to handle, lances, and antenna cables with (4) 8-in. cable ties and feed through the front bracket opening as illustrated.  Important Ensure cables are not kinked or twisted. Do not bend the cable within 2 in. of the AC Metro Cell connector.
Page 26 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Carefully cut the cable tie securing the MCO#2 ground cable inside the cabinet. Apply oxide-inhibiting, electrically-conductive grease to the flat side of the ground cable lug. Install the ground cable onto the rear of the AC Metro Cell as illustrated. Secure the ground cable to the AC Metro Cell with (2) M6x16mm hex bolts and (2) M6 split-lock washers.
Page 27 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Route the power cord through the liquid-tight fitting in the AC Metro Cell. AC Metro Cell Liquid-tight Fitting Power Cord Refer to the AC input connection diagram on the MCO#2 access cover to connect the AC power cord wires to the terminal block.
Page 28 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Use a T20 Torx bit screwdriver to re-secure the retained isolation cover with the retained Torx screw. Hand-tighten. Screw Isolation Cover Tighten the liquid-tight fitting until the power cord is secure. Liquid-tight Fitting Power Cord...
Page 29 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Close the AC Metro Cell access cover. Use a T25 Torx bit screwdriver to tighten the 3 Torx screws on the AC Metro Cell access cover. Torque to 25 in-lb. Access Cover Torx...
Page 30 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Remove the cover from Port 2 (SFP) on the bottom of the SAR-W. Install the fiber cable into Port 2. Secure the FullAXS gland to the SAR-W. SAR-W Ports SAR-W Bottom SAR-W Bottom Port 2 (SFP) Fiber Cable...
Page 31 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Return the AC Metro Cell AWS (B4) and SAR-W to their upright position. Use a 3/16-in. Allen wrench to hand-tighten the hardware securing the AC Metro Cell AWS (B4) and SAR-W rear-equipment mounting brackets to the cabinet. Rear Equipment Mounting Brackets SAR-W...
Page 32 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the MCO#2 front (PN 4000014441) and rear (PN 4000014442) antenna cable bulkhead connectors into the upper and lower openings in the cabinet as illustrated. Secure each cable with a nut and washer on the outside of the cabinet. Torque to 10 ft-lb. ...
Page 33 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Re-install the protector caps onto the bulkhead connectors outside the cabinet. Cabinet Rear Protector Caps (Nuts and Washers Underneath) Install the Metro Cell ≡≡ To install the Metro Cell Install the tether onto the tether bracket. Secure the tether to the tether bracket with (1) 3/8-16 3 1/2-in.
Page 34 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Feed the MCO#2 antenna cables through the front bracket opening from the rear of the Metro Cell. View from Front Front Bracket MCO#2 Antenna Cables Install the Metro Cell onto the hinge pin. Secure the Metro Cell to the hinge pin with (2) 12-24 self-tapping screws as illustrated.
Page 35 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the tether link and tether onto the rear bracket. Apply medium-strength thread-lock to tether link threads. Torque to 25 in-lb. Tether AC Metro Cell Tether Link Rear Bracket Carefully cut the cable tie securing the MCO#2 ground cable inside the cabinet. Apply oxide-inhibiting, electrically-conductive grease to the flat side of the ground cable lug.
Page 36 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the MCO#2 hold-up cable into the MCO#2. MCO#2 MCO#2 Hold-up Cable Route the power cord through the liquid-tight fitting in the Metro Cell. AC Metro Cell Liquid-tight Fitting Power Cord...
Page 37 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Refer to the AC input connection diagram on the MCO#2 access cover to connect the AC power cord wires to the terminal block. AC Input Diagram AC Power Cord Wire Color AC Input White L2/N...
Page 38 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Tighten the liquid-tight fitting until the power cord is secure. Liquid-tight Fitting Power Cord Close the AC Metro Cell access cover. Use a T25 Torx bit screwdriver to tighten the 3 Torx screws on the AC Metro Cell access cover.
Page 39 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Secure the MCO#2 ground cable to the MCO#2 power cable with 2 cable ties. Note Image shows MCO#1. Cable tie location is the same for MCO#2. Ground Cable Cable Tie MCO#2 Power Cable Cable Tie Remove the cover from Port 2 (SFP) on the rear of the SAR-W.
Page 40 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the MCO#2 rear antenna cable onto the rear AC Metro Cell connector as illustrated. Finger-tighten; cable will be torqued in a later step. MCO#2 Rear Antenna Cable Rear AC Metro Cell Connector Carefully bend the front MCO#2 antenna cable as illustrated.
Page 41 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the MCO#2 front antenna cable onto the front AC Metro Cell connector as illustrated. Finger-tighten; cable will be torqued in a later step. MCO#2 Front Antenna Cable Front AC Metro Cell Connector Secure both MCO#2 antenna cables to the Metro Cell handle lances with 4 cable ties.
Page 42 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Torque the MCO#2 antenna cable connectors to 20 ft-lb. MCO#2 Antenna Cable Connector MCO#2 Antenna Cable Connector Secure the MCO#2 front antenna cable to the MCO#2 rear antenna cable with 1 cable tie as illustrated.
Page 43 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the GPS cable connector onto the Metro Cell as illustrated. Torque to 20 in-lb. GPS Cable Connector Feed the GPS cable through the Metro Cell opening. GPS Cable AC Metro Cell Opening...
Page 44 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Install the GPS cable connector onto the GPS splitter as illustrated. Torque to 20 in-lb. GPS Splitter GPS Cable Connector Secure the GPS cable to the Metro Cell handle and lances with 4 cable ties. Handle Cable Ties GPS Cable Lance Cable Ties...
Page 45 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Secure the GPS cable to the MCO#2 front antenna cable as illustrated. MCO#2 Front Antenna Cable GPS Cable Cable Tie Remove the AC distributor cap and connect the PDU#2 cable to the AC distributor as illustrated below.
Page 46 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS Use a 3/16-in. Allen wrench to hand-tighten the hardware securing the AC Metro Cell AWS (B4) and SAR-W rear-equipment mounting brackets to the cabinet. Rear Equipment Mounting Brackets SAR-W AC Metro Cell AWS (B4) Installation is complete.
Page 47 AC M AWS (B4) I LCATEL UCENT ETRO NSTALLATION NSTRUCTIONS...
