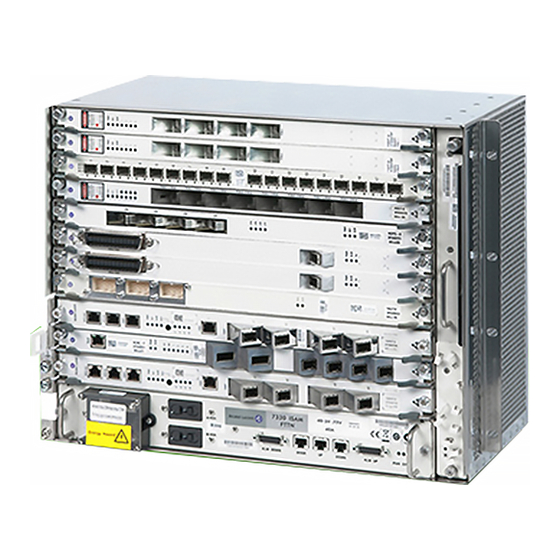

- Page 1 Alcatel-Lucent 7330 ISAM FTTN Intelligent Services Access Manager Fiber-to-the-Node...
- Page 2 The Alcatel-Lucent 7330 Intelligent Services Access Manager (ISAM) Fiber-to-the-Node (FTTN) takes the best of Alcatel-Lucent’s DSL developments, and provides a unique set of capabilities that enables you to deliver the most competitive triple play service offerings. Building on Alcatel-Lucent’s leadership in broadband access, the Alcatel-Lucent 7330 ISAM FTTN addresses your growing requirement for a deep-fiber access solution.
- Page 3 The Alcatel-Lucent Fiber-to-the-Node Solution for Deep-Fiber Access Power and Flexibility for Your Unique Needs Alcatel-Lucent has been the world leader in DSL deployments since the early development of the tech - nol ogy. To date, Alcatel-Lucent has shipped more than 143 million DSL lines worldwide.
- Page 4 IP services in the home are the key to winning the battle against your competition. Alcatel-Lucent 7330 ISAM FTTN Taking the Battle to a New Level Halting the Siege If you are a traditional ILEC service provider, you are likely under siege. Cable operators have attacked you in the broadband and voice market.
- Page 5 Increasing Bandwidth to the Subscriber for Deployment of New Interactive Services The good news is that FTTN economically increases the available bandwidth to the subscriber while leveraging the existing copper plant to keep costs down. Technological Hurdles The existing DSL network was engineered to provide HSI access with down stream bandwidth between 0.5 and 2 Mb/s.
- Page 6 FTTN Leverages the Existing Copper Infrastructure For many customers, the long-term solution is to deploy fiber-to-the-user (FTTU). This will enable the delivery of virtually unlimited subscriber bandwidth. While this solution is available today and practical in many cases, time-to-market and short-term economic pressures are driving a more incremental access strategy —...
- Page 7 Indeed, FTTN networks have several key advantages, including: • Triple play service capabilities • Small footprint and minimal power requirements • An incremental step toward FTTU enabled by an investment in deep fiber • Seamless integration into existing operations processes, reducing training costs •...
- Page 8 Alcatel-Lucent 7330 ISAM FTTN — World-Class Technology for World-Class Solutions The Alcatel-Lucent 7330 ISAM FTTN builds on Alcatel- Lucent’s world wide DSL expertise by inte grat ing the best technology available from the Alcatel-Lucent 7302 ISAM into a more compact remote digital sub scriber line access multiplexer (DSLAM), which is tailored for the unique requirements of FTTN networks.
- Page 9 To meet the challenging requirements of an FTTN network, the Alcatel-Lucent 7330 FTTN has been engineered to support: • A non-blocking Ethernet architecture to enable 100-percent IPTV take rates • Expansion shelves and sealed expansion modules to match network population densities •...
- Page 10 Alcatel-Lucent FTTN: Multiple Options, One Solution At the heart of the Alcatel-Lucent 7330 ISAM FTTN is an Ethernet switch fabric and distributed network processors. The high-capacity Ethernet switch fabric is hardened for outside plant deployments and is leveraged across a four-slot host shelf (the same shelf is used as an expansion shelf) and one or more sealed enclosure modules (SEMs) for a total of up to 768 lines (See Figure 2).
- Page 11 FTTN Expansion for Addition of Subscriber Interfaces The Alcatel-Lucent 7330 ISAM FTTN supports expansion modules that have been designed for the addi tion of subscriber interfaces without the need for additional switching capac ity. As such, the Alcatel-Lucent 7330 ISAM FTTN host serves as your central hub for expansion modules, expansion shelves and sealed enclo sure modules (SEMs) and extends GigE interfaces to these high- density subscriber interfaces.
- Page 12 Figure 4. Sealed Expansion Module Architecture Power 7330 SEM Expansion Interface GigE Uplink 7330 Host Environmentally-sealed enclosure PSTN 12 Alcatel-Lucent 7330 ISAM FTTN Enabling Efficient Growth T H E A L C A T E L - L U C E N T 7 3 3 0 I S A M F T T N E X P A N S I O N S H E L F A N D S E A L E D E X P A N S I O N M O D U L E The modularity of the Alcatel-Lucent 7330 ISAM FTTN expansion shelf (ES) enables your efficient growth of services and supports up to 192 DSL lines per...
- Page 13 Table 1. Alcatel-Lucent 7330 ISAM FTTN Features and Benefits FEATURE Member of ISAM family Distributed architecture GigE interfaces Multi-ADSL service unit VDSL service unit Hardened for harsh environments Ethernet bridging Multicast support VLAN support Quality of service (QoS) Alcatel-Lucent 5526 AMS BENEFIT Flexibility and uniformity lead to simplified operations, minimized OPEX, reduced training needs and faster time-to-market for new services...
- Page 14 Alcatel-Lucent’s answer to the FTTN challenge is the Alcatel-Lucent 7330 ISAM FTTN. Alcatel-Lucent Fiber-to-the-Node Answers the Challenge The Alcatel-Lucent 7330 ISAM FTTN architecture meets your challenge by delivering ultra-high bandwidth connectivity to subscribers over the existing copper plant. With the Alcatel-Lucent 7330 ISAM FTTN in your arsenal, you can halt the competitive siege by rapidly deploy ing a ubiquitous service...
- Page 15 As you and your competitors worldwide prepare for the next wave of broadband deployment — to offer a full set of user- centric, personalized triple play services — Alcatel-Lucent has the solution to meet your deployment requirements. The Alcatel-Lucent 7330 Intelligent Services Access Manager (ISAM) is a future-safe, multiservice intelligent access platform for the CO or remote cabinet that gives you the flexibility to deploy all services to each subscriber...
- Page 16 www.alcatel-lucent.com Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners. The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein. © 2007 Alcatel-Lucent. All rights reserved. 23022 (09)
