PROPER USE GUIDELINES
Cumulative trauma disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional
use and low-volume applications. A wide selection of powered application equipment is available for extended-use production operations.
The SDE-SA hand tool is a commercial-grade tool. Product crimped with this tool meets the wire barrel crimp height requirement for hand
tools in the appropriate 114 application specification but might not comply with other feature parameters of the specification.

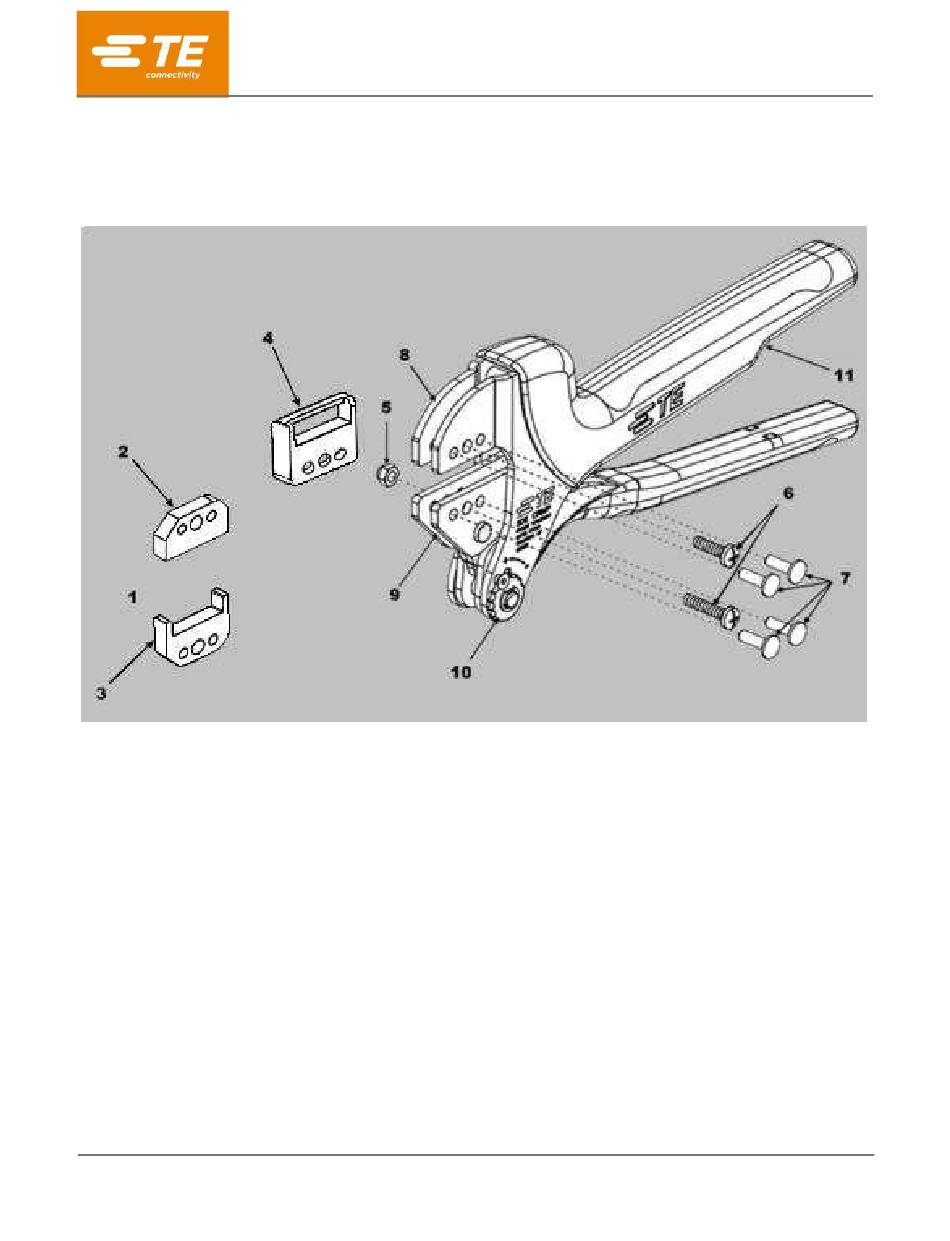

Figure 1: SDE-SA Commercial Hand Tool Assembly 2432945-1 with Die Assembly 2432945-2
1
Die set 2432945-2
Anvil (upper die)
2
Nest (lower die)
3
Locator
4
© 2022 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
SDE-SA Commercial Hand Tool Assembly
PN 2432945-1 with
Die Assembly PN 2432945-2
5
Nut
Die-retaining screws (2)
6
Die-retaining pins (4)
7
Stationary jaw
8
PRODUCT INFORMATION 1-800-522-6752
9
Moving jaw
Ratchet adjustment wheel
10
Handle
11
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
408-35322
9 NOV 2022 Rev A
1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TE Connectivity 2432945-1
Summary of Contents for TE Connectivity 2432945-1
- Page 1 1 of 7 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
- Page 2 Terminal P/N Wire size Number of diameter mm [in.] SDE-SA tool Die assembly only [AWG] conductors [ ]-1473562-7 2432945-1 2432945-2 0.08-0.60 [29-20] 0.60-1.60 [.024-.063]* [ ]-1473562-8 * Refer to RITS Connector Interconnection System instruction sheet 411-78014 or customer drawing 1746741 for applicable cable.
- Page 3 408-35322 3. INSTALLING THE DIE SET AND LOCATOR ASSEMBLY 1. Open the tool handles. 2. Remove the two die-retaining screws from the tool jaws (see Figure 1). 3. Insert the lower nest die in the moving jaw of the tool frame with the chamfered side facing outward. 4.
- Page 4 408-35322 5. CRIMPING NOTE The tool is provided with a crimp adjustment feature. Initially, the crimp height should be verified as specified in Figure 3. Refer to section 6, INSPECTING THE CRIMP HEIGHT, and section 7, ADJUSTING THE RATCHET, to verify crimp height before using the tool.
- Page 5 Crimp height inspection is performed using a micrometer with a modified anvil, commonly referred to as a crimp-height comparator. TE Connectivity does not manufacture or market crimp height comparators. Detailed information on obtaining and using crimp-height comparators can be found in instruction sheet 408-7424.
- Page 6 408-35322 7. ADJUSTING THE RATCHET The ratchet is preset prior to shipment, but it is important to verify the crimp height using a micrometer or caliper. Use and wear can cause the tool to go out of adjustment. Inspect the crimp height and adjust the ratchet, if necessary, on a regular basis.
-
Page 7: Maintenance And Inspection
Shop TE link at the top of the page. Call 800-522-6752. Write to: CUSTOMER SERVICE (038-035) TE CONNECTIVITY CORPORATION PO BOX 3608 HARRISBURG PA 17105-3608 For customer repair services, call 800-522-6752. 10. REVISION SUMMARY Revisions to this instruction sheet include:...
