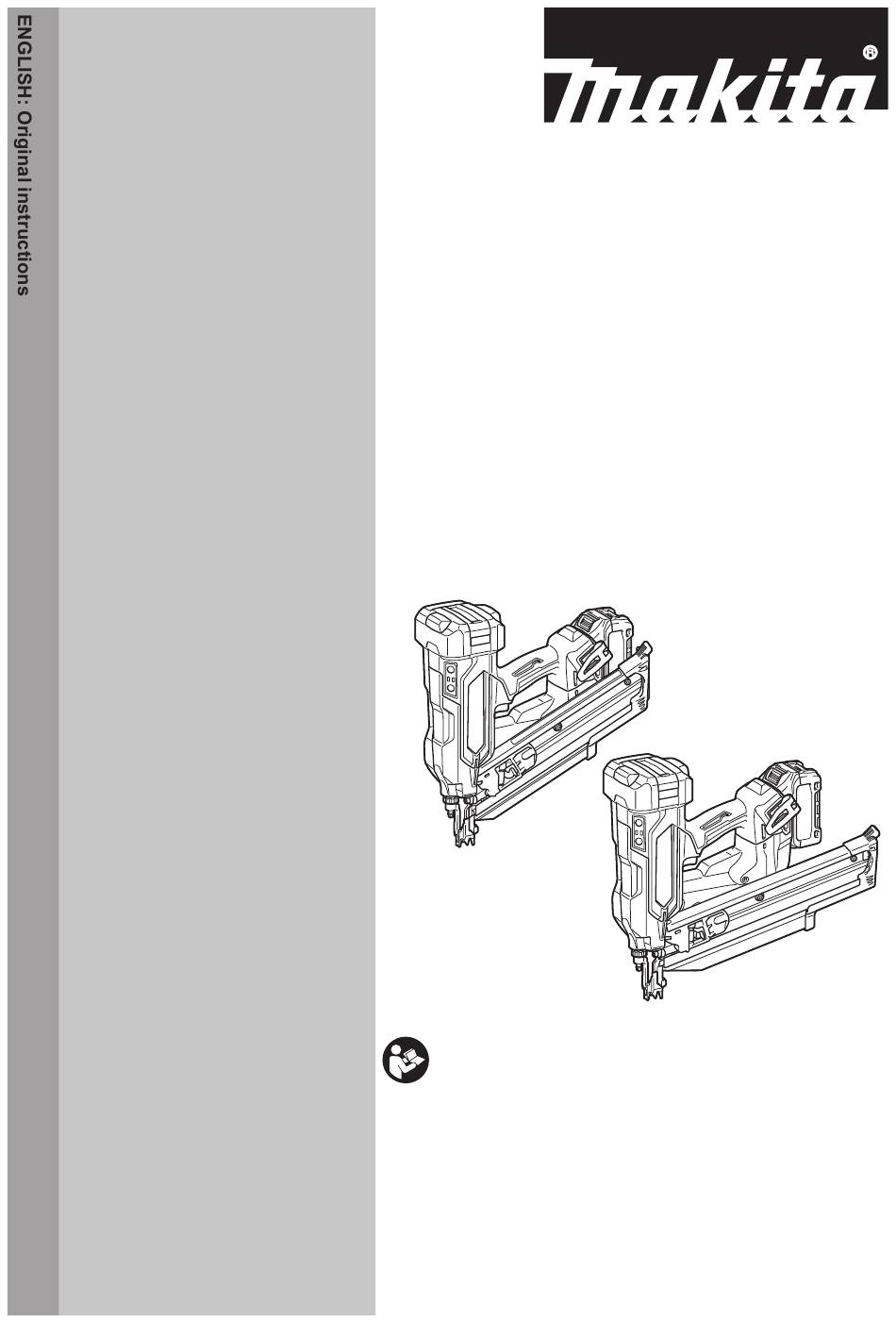

- Page 1 INSTRUCTION MANUAL Cordless Framing Nailer BN001G BN002G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: BN001G BN002G Figure of nail head Clipped Round Nail length 50 mm - 90 mm Shank diameter ø2.9 mm - ø3.3 mm ø2.9 mm - ø3.8 mm Magazine capacity 51 - 58 nails (1 strip + 11 - 18 nails) -
Page 3: Declarations Of Conformity
Model BN001G Declarations of Conformity Sound pressure level (L ) : 90 dB (A) Sound power level (L ) : 101 dB (A) For European countries only Uncertainty (K) : 3 dB (A) The Declarations of conformity are included in Annex A Model BN002G to this instruction manual. - Page 4 medical devices should contact the maker of their equipments by the tool operators and by other device and/or doctor for advice before operating persons in the immediate working area. this power tool. Power tool use and care Personal safety Do not force the power tool. Use the correct Stay alert, watch what you are doing and use power tool for your application.
- Page 5 liquid contacts eyes, additionally seek medical Watch your footing and maintain your balance help. Liquid ejected from the battery may cause with the tool. Make sure there is no one below when working in high locations. irritation or burns. Do not use a battery pack or tool that is dam- 12.
-
Page 6: Functional Description
It will nails, coins, etc. also void the Makita warranty for the Makita tool and charger. Do not expose battery cartridge to water or rain. - Page 7 while sliding the button on the front of the cartridge. Indicator lamps Remaining capacity Lighted Blinking 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.
-
Page 8: Overload Protection
Charge the battery(ies) or replace it/them with recharged battery(ies). Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Power switch action CAUTION: Before installing the battery car- tridge into the tool, always check to see that the Fig.5... -
Page 9: Loading/Unloading The Fasteners
Pull the switch trigger or actuate the contact element to Mode Actuation Feature light up the lamp. The lamp keeps on lighting while pull- switch mode ing the switch trigger or actuating the contact element. Contact Either a single driving or continu- The lamp goes out several seconds after releasing the actuation ous driving is available. - Page 10 back by releasing the spring tension safely. NOTICE: Gently slide the pusher along the mag- azine. A forceful contact between the pusher and fastener strip may damage the fasteners. Remove the battery cartridge. Insert a fastener strip into the slit of the magazine. Make sure to align the outlines of the fastener heads with that of the slit.
- Page 11 magazine slightly and pull it straight out. Fig.15 ► 1. Standard equipped magazine Insert the lock plate in the extended capacity magazine into the lock groove in the driver guide at an angle. Align the bolt holes in the magazine with those in the driver guide.
- Page 12 NOTE: Make sure that the hooked arm ends of the nose adapter fully engage the contact element. Fig.19 ► 1. Hooked arm ends Fig.17 Detaching nose adapter ► 1. Extended capacity magazine 2. Bolts Turn the tool upside down. Nose adapter Disengage the arms of the nose adapter from the contact element and slide the nose adapter out of the assembly.
- Page 13 To remove the C-shaped hook, loosen the bolts and then take the hook out. Fig.21 CAUTION: When installing the hook, always secure it with the screw firmly. If not, the hook may come off from the tool and result in the personal Fig.23 injury.
-
Page 14: Operation
Makita Service Center. Handling of the fasteners Nails Handle nails and their box carefully. If the nails have been handled roughly, they may be out of shape or their connector breaks, causing poor nail feed. -
Page 15: Full Sequential Actuation
NOTE: Only a single driving mode (full sequential actuation) is available in some regions or countries. The switch design varies depending on your region of residence. Full sequential actuation In this mode, you can drive one fastener by one sequential operation. A workpiece contact and then a trigger need to be activated in a specific sequence to actuate the tool. -
Page 16: Removing Jammed Fasteners
Anti dry fire mechanism When the remaining fasteners in the magazine decrease to 7 - 9 pieces for model BN001G / 6 - 7 pieces for model BN002G, the switch can no longer be actuated and the tool stops firing. Insert a new strip of fasteners in the magazine before restarting operation. -
Page 17: Preventive Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Preventive maintenance Thoroughly clean and inspect moving components (i.e., contact element, pusher, etc.) on a regular basis,... -
Page 18: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 20 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885B29-*** 20250417...
