RV 17" AND 21" 3-BURNER ALL GLASS RANGE
MODEL (LIPPERT PN)
FGR17G3A1-BG (2021132313) FGR17G3A2-BG (2021149018)
FGR17G3A1-SG (2021132315) FGR21G3A1-BG (2021132316)
FGR21G3A2-BG (2021149019) FGR21G3A1-SG (2021132319)
TROUBLESHOOTING AND SERVICE MANUAL
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.

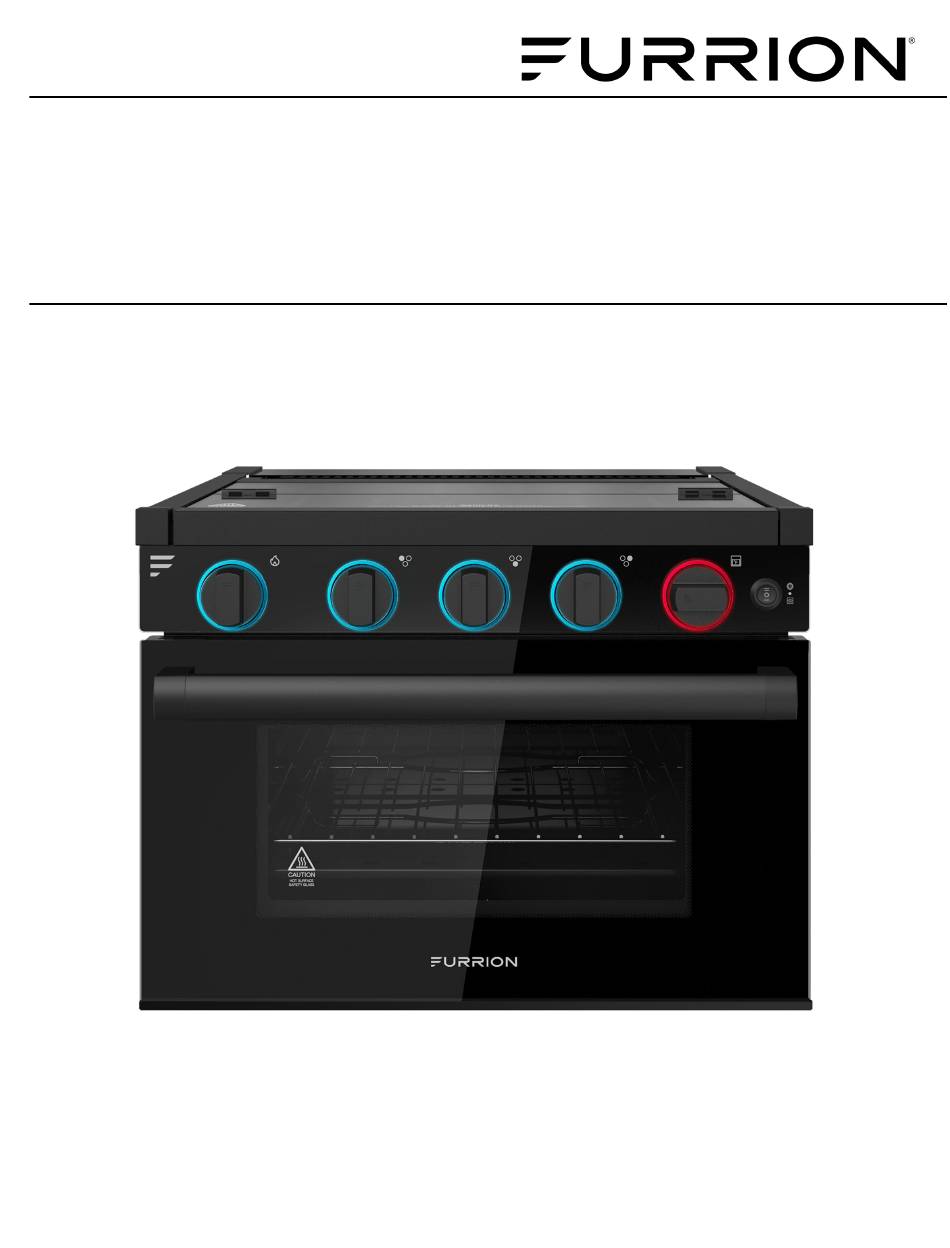

* Picture shown here is for reference only.
Advertisement
Table of Contents
Related Manuals for Furrion FGR17G3A1-BG
Summary of Contents for Furrion FGR17G3A1-BG
- Page 1 RV 17" AND 21" 3-BURNER ALL GLASS RANGE MODEL (LIPPERT PN) FGR17G3A1-BG (2021132313) FGR17G3A2-BG (2021149018) FGR17G3A1-SG (2021132315) FGR21G3A1-BG (2021132316) FGR21G3A2-BG (2021149019) FGR21G3A1-SG (2021132319) TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance,...
-
Page 2: Table Of Contents
Specifications Introduction This document provides an overview on replaceable parts for Furrion® RV 17" and 21" 3-Burner All Glass Gas Range, as well as basic troubleshooting and service information. NOTE: Images used in this document are for reference only when assembling, installing and/or operating this product. -
Page 3: Safety Precautions
Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. Safety Precautions If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. -
Page 4: Pressure Check
NOTE: Ensure the product is gas leak checked after the pressure check test is completed by also testing the pressure check port screw. If any leaks are detected around the pressure check port screw and gasket, a new one can be purchased. Call Furrion support for a replacement. Page 4 Rev: 02.06.25... -
Page 5: Gas Leak Check
Gas Leak Check Always perform a leak test for possible leaks according to the manufacturer's instructions before any operation. Pressure/Leak test using 11-13.8 WC pressure. Extinguish all open flames. NEVER Leak test when smoking. Do not use the oven until connection has been leak tested and does not leak. -
Page 6: Replaceable Parts List
Replaceable Parts List Callout Part # Description Model 2021132313 17" 2-Color Led Knob, Black-Black FGR17G3A1-BG 2021149018 17" 2 Color Led Knob, BG with Silver Handle FGR17G3A2-BG 2021132315 17" 2-Color Led Knob, Stainless Steel Glass Finish FGR17G3A1-SG Kit-A 2021132316 21" 2-Color Led Knob, Black-Black... - Page 7 Strain Relief All Models of Kit-A 2021123962 Oven Light Glass Cover All Models of Kit-A G4 Halogen Oven Light Bulb, 12V 10w 300 °C (572 °F) 2021124002 All Models of Kit-A FGR17G3A1-BG FGR17G3A2-BG 2021124161 Door Seal (17") FGR17G3A1-SG FGR17G3A1-PG FGR21G3A1-BG FGR21G3A2-BG 2021149643 Door Seal (21")
- Page 8 Glass Cover Middle Hinge Module (2 hinges per set) 2021124303 Cooktop Grill Holding Gasket Callout Part # Description Model Front Panel Module, Black Glass (Black Knobs and FGR17G3A1-BG 2022073005 Igniter included) FGR21G3A1-BG Front Panel Module, Black Glass (Silver Knobs and FGR17G3A2-BG 2022073018 Igniter included)
- Page 9 Callout Part # Description Model 2022072997 Left Plastic Side Trim 2022072998 Right Plastic Side trim 2023029044 Red/Blue Knob LED PCB FGR17G3A1-BG 2022073002 Ignition Knob Assembly (Black) FGR21G3A1-BG FGR17G3A2-BG FGR21G3A2-BG 2022073015 Ignition Knob Assembly (Silver) FGR17G3A1-SG FGR21G3A1-SG FGR17G3A1-BG 2023029051 Cooktop Burner Knob Assembly (Black)
-
Page 10: Troubleshooting
All other knobs will change to RED when the control is turned on. Control knob stays RED at OFF Knob LED PCB Hall components fail to sense the magnet. position Contact Furrion for service. Specifications Optional Power Gas power Left and Right Burner: 6500 BTU... - Page 11 This page is intentionally left blank. Page 11 Rev: 02.06.25 CCD-0007311...
