RV 24" 3-BURNER GAS RANGE
MODEL (LIPPERT PN)
FGR24D3A1A-SS (2021135689)
FGR24D3A1A-BL (2022119473)
CHEF COLLECTION
TROUBLESHOOTING AND SERVICE MANUAL
This manual contains the product's basic information, operation instructions, fault diagnosis and basic troubleshooting methods. In
order to better understand and use this product, please take good care of this manual, and read it carefully.

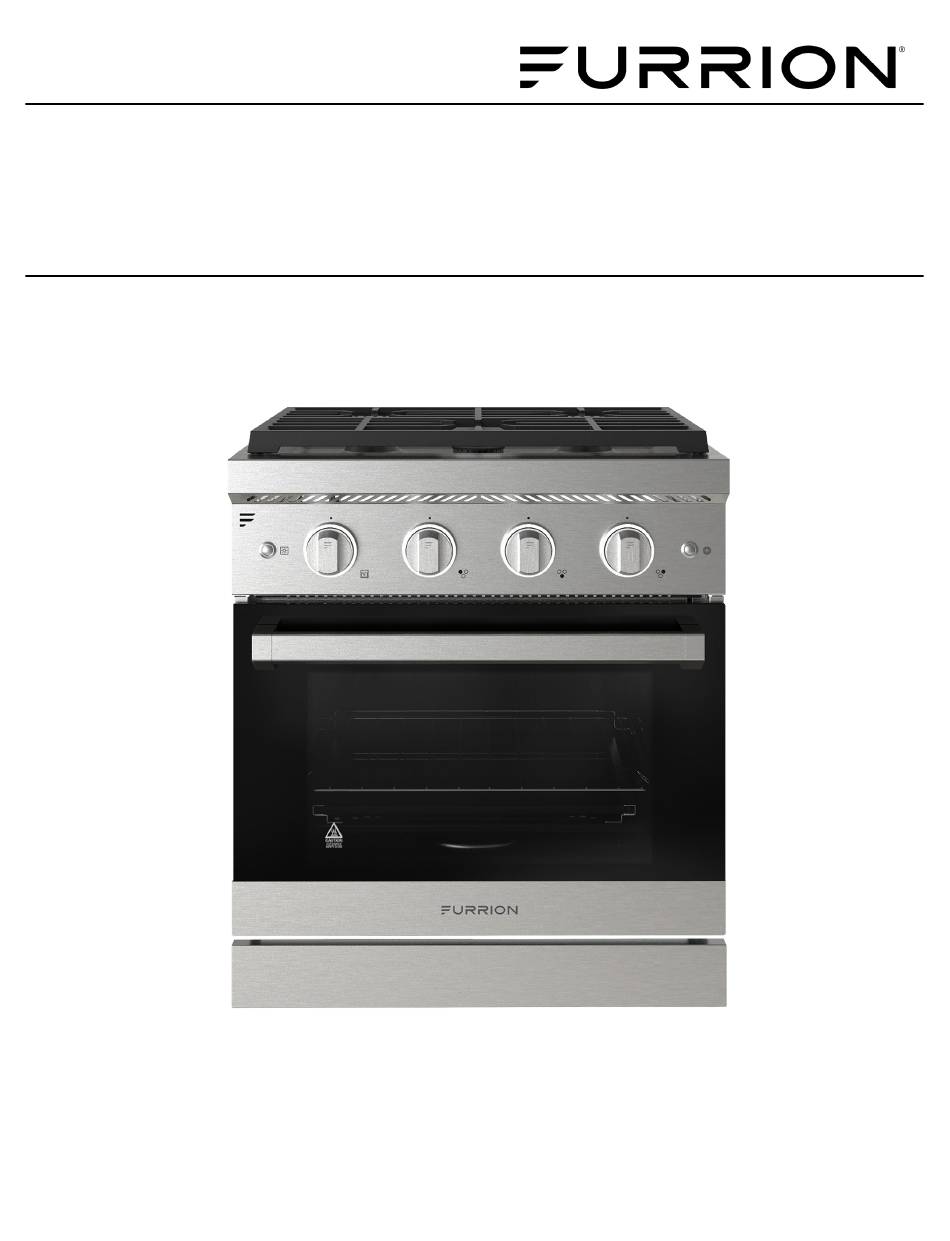

* Picture shown here is for reference only.
* L'image présentée ici n'est qu'une référence.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furrion CHEF FGR24D3A1A-SS
Summary of Contents for Furrion CHEF FGR24D3A1A-SS
- Page 1 RV 24" 3-BURNER GAS RANGE MODEL (LIPPERT PN) FGR24D3A1A-SS (2021135689) FGR24D3A1A-BL (2022119473) CHEF COLLECTION TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. * L’image présentée ici n’est qu’une référence. This manual contains the product's basic information, operation instructions, fault diagnosis and basic troubleshooting methods. In order to better understand and use this product, please take good care of this manual, and read it carefully.
-
Page 2: Table Of Contents
Specifications Introduction This document provides an overview on replaceable parts for Furrion® Chef Collection RV 24" 3-Burner Gas Range, as well as basic troubleshooting and service information. NOTE: Images used in this document are for reference only when assembling, installing and/or operating this product. -
Page 3: Safety Precautions
Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. Safety Precautions If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. -
Page 4: Pressure Check
NOTE: Ensure the product is gas leak checked after the pressure check test is completed by also testing the pressure check port screw. If any leaks are detected around the pressure check port screw and gasket, a new one can be purchased. Call Furrion support for a replacement. Page 4 Rev: 01.28.25... -
Page 5: Gas Leak Check
Gas Leak Check Always perform a leak test for possible leaks according to the manufacturer's instructions before any operation. Pressure/Leak test using 11-13.8 WC pressure. Extinguish all open flames. NEVER Leak test when smoking. Do not use the oven until connection has been leak tested and does not leak. -
Page 6: Replaceable Parts List
Replaceable Parts List Callout Part # Description Model 2022120242 Front Cast Iron Grate FGR24D3A1A-SS 2022323551 Front Cast Iron Grate (Black Version) FGR24D3A1A-BL 2022120243 Back Cast Iron Grate FGR24D3A1A-SS 2022323552 Back Cast Iron Grate (Black Version) FGR24D3A1A-BL 2022120244 Cooktop Grate Holding Gasket 2022120245 Burner Module Thermocouple Assembly with 280mm Long Wire and Brass Nut... - Page 7 Callout Part # Description Model 2022120249 Electronic Spark Igniter Module 2022120250 Regulator with Gas Pipe 2022120251 Cooktop Control Valve 2022120252 Oven Control - Thermostat Valve 2022120255 LED PCB (six white LED lamp beads) 2022120256 Oven Control Knob Assembly FGR24D3A1A-SS 2022323554 Oven Control Knob Assembly (Knob Black) FGR24D3A1A-BL 2022120257...
-
Page 8: Troubleshooting
Troubleshooting If the oven fails to operate: Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance. - Page 9 This page is intentionally left blank. Page 9 Rev: 01.28.25 CCD-0007186...
- Page 10 Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center & Institute of Technology Centre d’innovation et institut de technologie Furrion...
