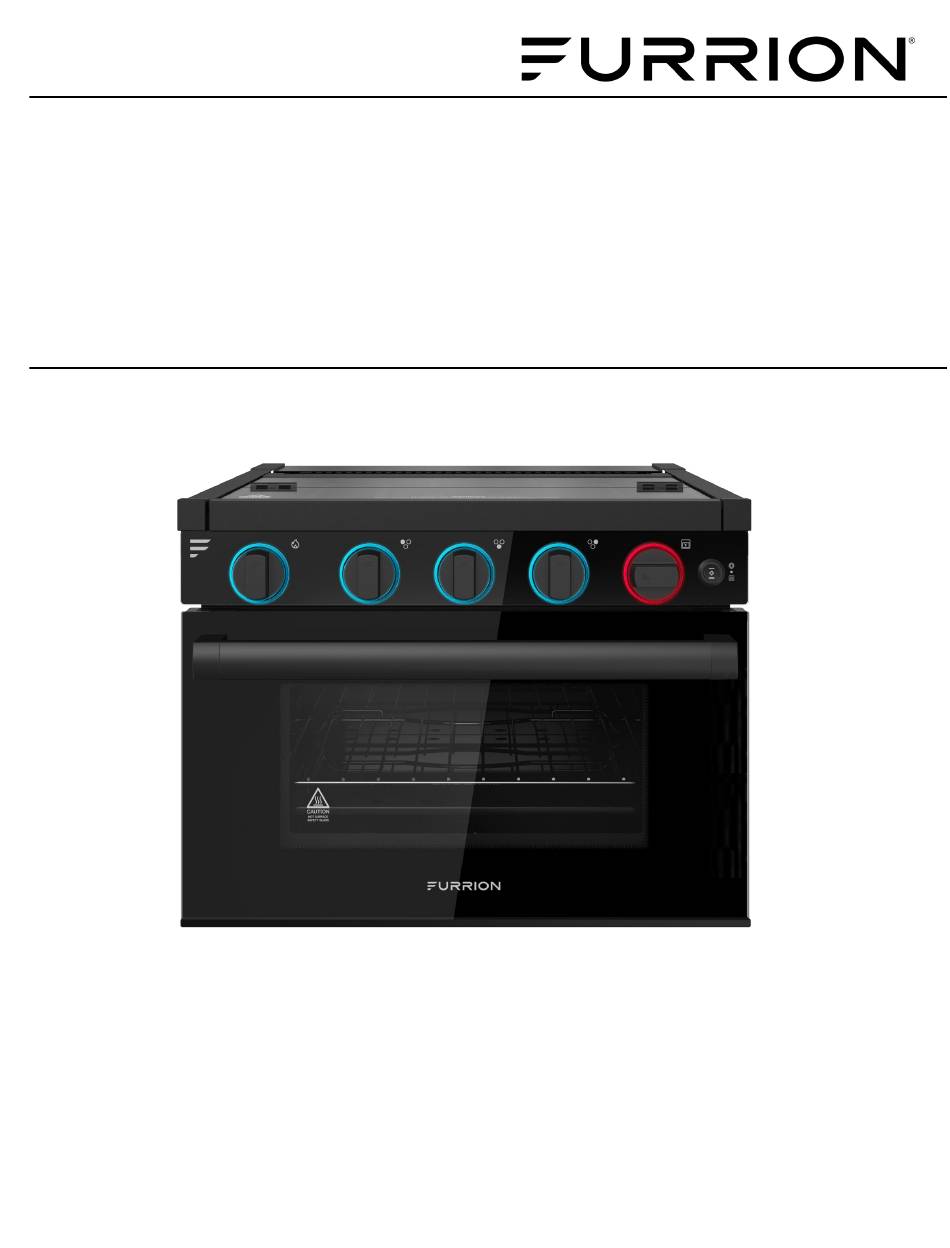

17" & 21" 3-BURNER ALL GLASS GAS RANGE WITH FFD
MODEL (LIPPERT PN)
FGR17G3MA1B-BG (2023045673)
FGR17G3MA2B-BG (2023045674)
FGR17G3MA1B-SG (2023045672)
TROUBLESHOOTING AND SERVICE MANUAL
This manual contains the product's basic information, safety, maintenance,
replaceable parts, fault diagnosis and basic troubleshooting procedures.
* Picture shown here is for reference only.
FGR21G3MA1B-BG (2023045675)
FGR21G3MA2B-BG (2023045676)
FGR21G3MA1B-SG (2023045677)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Furrion FGR17G3MA1B-BG
Summary of Contents for Furrion FGR17G3MA1B-BG
- Page 1 17" & 21" 3-BURNER ALL GLASS GAS RANGE WITH FFD MODEL (LIPPERT PN) FGR17G3MA1B-BG (2023045673) FGR21G3MA1B-BG (2023045675) FGR17G3MA2B-BG (2023045674) FGR21G3MA2B-BG (2023045676) FGR17G3MA1B-SG (2023045672) FGR21G3MA1B-SG (2023045677) TROUBLESHOOTING AND SERVICE MANUAL * Picture shown here is for reference only. This manual contains the product's basic information, safety, maintenance,...
-
Page 2: Table Of Contents
Specifications Introduction This document provides an overview on replaceable parts for Furrion 17" & 21" 3-Burner All Glass Gas Range with FFD, as well as basic troubleshooting and service information. Please keep this user manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. -
Page 3: Safety Precautions
Safety Precautions If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do NOT store or use gasoline or other flammable vapors or liquids near this or any appliance. What to do if you smell gas: •... -
Page 4: Pressure Check
NOTE: Ensure the product is gas leak checked after the pressure check test is completed by also testing the pressure check port screw. If any leaks are detected around the pressure check port screw and gasket, a new one can be purchased. Call Furrion support for a replacement. Page 4 Rev: 01.27.25... -
Page 5: Gas Leak Check
Gas Leak Check Always perform a leak test for possible leaks according to the manufacturer's instructions before any operation. Pressure/Leak test using 11-13.8 WC pressure. Extinguish all open flames. NEVER Leak test when smoking. Do not use the oven until connection has been leak tested and does not leak. -
Page 6: Replaceable Parts List
Replaceable Parts List Callout Part # Description Model 2021124335 Stamped Grate Top-Tray Module (Top Tray Module with Black Painting Side 2022072996 Trim Kit) 2021124283 Glass Cover Middle Hinge Module (2 Hinges per Set) 2022072995 Rubber Front Bumpers Kit (Left+Right) 2021124303 Cooktop Grill Holding Gasket 2021124505 Gas Pressure Inspection Screw (Rubber O-Ring included) - Page 7 Callout Part # Description Model 2021124444 Oven Burner Front Panel Module with FFD, Black Glass (Black Knobs and FGR17G3MA1B-BG 2023048881 Igniter included) FGR21G3MA1B-BG Front Panel Module with FFD, Black Glass (Silver Knobs and FGR17G3MA2B-BG 2023048882 Igniter included) FGR21G3MA2B-BG Front Panel Module with FFD, Stainless Steel (Silver Knobs...
-
Page 8: Troubleshooting
FGR21G3MA1B-SG FGR21G3MA2B-BG G4 Halogen Oven Light Bulb, 12V 10w 300 °C (572 °F) 2021124002 2022072997 Left Plastic Side Trim 2022072998 Right Plastic Side Trim FGR17G3MA1B-BG FGR17G3MA1B-SG Light Switch (Blk), 3-Way Rocker Switch ((Plastic Bezel (Blk) FGR17G3MA2B-BG 2022072999 included)) FGR21G3MA1B-BG FGR21G3MA1B-SG... -
Page 9: Specifications
Specifications Left and Right Burner: 6500 BTU/HR BTU/HR Front Burner: 8000 BTU/HR Oven: 7100 BTU/HR Fuel / Power Propane Inlet Pressure 10” WC Min to 13.8” WC Max Power Input 12V DC < 2 Amp (10.5V to 14.6 VDC) Inner Volume of the 17”... - Page 10 Furrion, LLC (Furrion) are wholly owned subsidiaries of Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center & Institute of Technology Centre d’innovation et institut de technologie Furrion...
