11

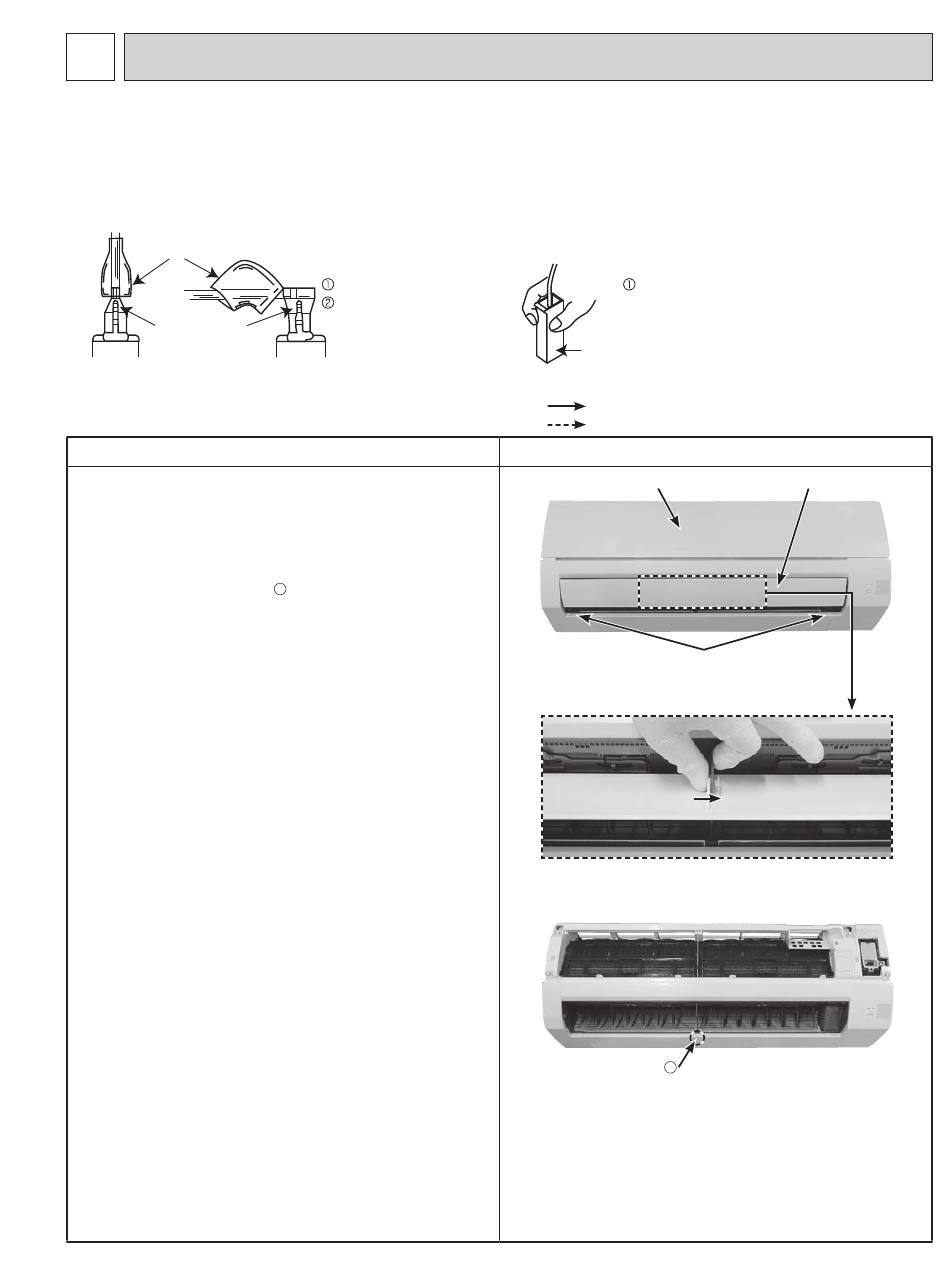

DISASSEMBLY INSTRUCTIONS

<Detaching method of the terminal with locking mechanism>
The terminal which has the locking mechanism can be detached as shown below.
There are 2 types of the terminal with locking mechanism.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
(1) Slide the sleeve and check if there is a locking lever or not.
Sleeve
Locking lever
11-1. MSZ-WX09NL
NOTE: Turn OFF the power supply before disassembly.

OPERATING PROCEDURE

1. Removing the panel
(1) Remove the horizontal vanes. Unlock the lock of the
horizontal vane (1 point). Pull and remove the horizontal
vane to the side.
(2) Remove the screw caps of the panel. Remove the
screws of the panel.
(3) Unhook the lower part (
(4) Pull the panel slightly toward you, and then remove the
panel by pushing it upward.
OBH954A
Slide the sleeve.
Pull the terminal while
pushing the locking lever.
MSZ-WX12NL MSZ-WX18NL
) of the panel.
A
(2) The terminal with this connector shown below
has the locking mechanism.
Hold the sleeve, and
pull out the terminal slowly.
Connector
: Indicates the visible parts in the photos/figures.
: Indicates the invisible parts in the photos/figures.
PHOTOS/FIGURES
Photo 1
Front panel
Screws of the panel
Photo 2
Photo 3
Hook of the panel
A
41
Horizontal vane
