GROM Audio VLINE LEX6 Installation Manual

Hide thumbs Also See for VLINE LEX6:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION
MANUAL
LEX6
www.gromaudio.com
www.gromaudio.com/support.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLINE LEX6 and is the answer not in the manual?

Questions and answers

Related Manuals for GROM Audio VLINE LEX6

Summary of Contents for GROM Audio VLINE LEX6

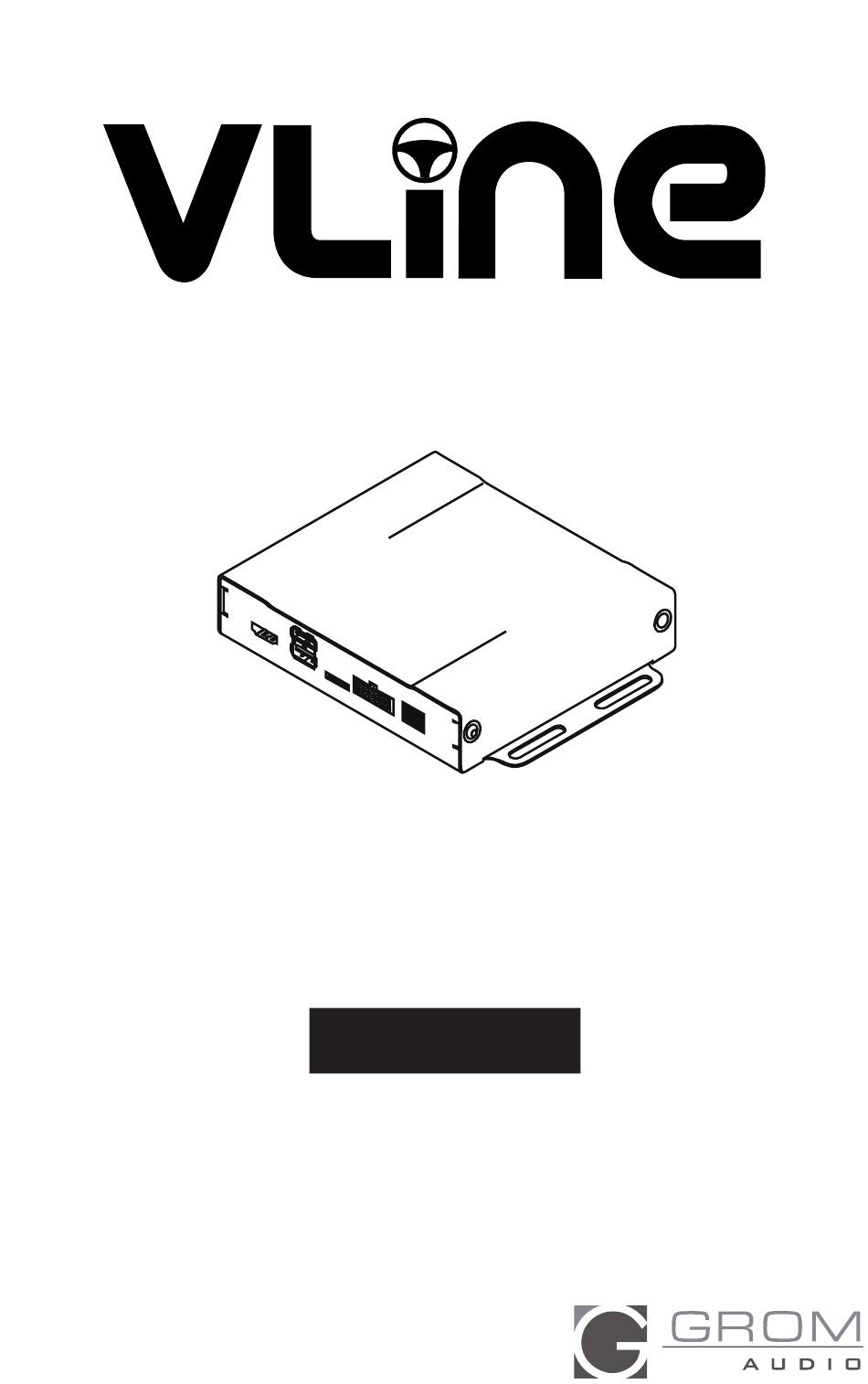

  • Page 1 INSTALLATION MANUAL LEX6 www.gromaudio.com www.gromaudio.com/support.html...

  • Page 2: Table Of Contents

    CONTENTS Package contents......................3 CHAPTER 1 — INSTALLATION.................3 1.1 Before Installation 1.2 Tools 1.3 Vehicle Installation 1.4 Safety Guidelines & Appropriate Use Connect supplied Display Harness Cable to factory Display....5 Connect VLine Interface cable to Factory Head unit......6 Connecting to VLine..................6 Routing the GPS Antenna..................6 Using Factory Microphone.

  • Page 3: Package Contents

    GROM VLINE VL2 SYSTEM PACKAGE CONTENTS FOR VLINE VL2 VLine module GVMF MCFLEX6Y Power Display Harness Harness + mic GPS Antenna USB Extension cable *NOTE for VLite VT2: The GPS Antenna and the USB Extension Cable are not included in the VLite VT2 package. You can order them separately if desired. CHAPTER 1 —...

  • Page 4: Safety Guidelines & Appropriate Use

    wiring installation requires special technical skills and experience. If you feel uncomfortable installing, please consult with your local car audio shop or installation professional for instructions or assistance if necessary. Carefully remove the factory stereo and display out of the dash cavity with the proper tools.

  • Page 5: Connect Supplied Display Harness Cable To Factory Display

    Connect supplied display harness cable (GVMF) to the factory display Locate the BLUE display port on the rear of the stereo display. If the port is empty, plug the supplied video cable (GVMF) into the port and leave the female portion of the cable with nothing attached. If you see a factory cable (typically blue) plugged in, disconnect it from the port.

  • Page 6: Connect Vline Interface Cable To Factory Head Unit

    Ensure to connect the GVMF video cable to the back of the factory display, and not to the back of the stereo. If you will connect the GVMF cable to the back of the stereo, the VLine will not show up on the screen! Warning: Do not pinch or hard bend the GVMF video cable, as it will affect the video signal.

  • Page 7: Using Factory Microphone

    The VAUX RCA cable and GPS Connected GPS Antenna positioned on top of the dashboard, facing the sky Using factory microphone VLine VL2 / VLite VT2 will use factory microphone for its operation. Connect 3.5mm male connector from Power Interface Cable (MFCLEX6Y) to the microphone port of VLine (see p.

  • Page 8: Installation Troubleshooting

    Adjusting microphone gain for CarPlay® or Android Auto® 1. Go to the VLine home screen, tap on three horizontal lines in the upper left corner of the screen and open the “Settings.” 2. While in “Settings,” scroll down to the bottom of the screen. 3.

  • Page 9: Understanding Vline Ports

    Understanding the VLine p orts H DMI WiFi / Bluetooth Output Antenna USB1 iPhone GPS / AV / Camera Input USB 1 HDMI IN HDMI OUT USB 2 CAMERA AV1 HDMI Input MicroSD Card Microphone (Pin side up*) USB2 OTG/USB storage Continue on the next page -->...

  • Page 10: Chapter 2 - Getting Started

    Understanding the VLine p orts USB1 iPhone connection Any other USB device (Keyboard / Mouse) USB2 USB flash drive Any USB device (Android, Keyboard / Mouse) MicroSD Insert microSD card (*pin side up) to increase storage space for Vline (up to 128GB supported). The microSD should be formatted FAT32.
  • Page 11 2.2 Functions The GROM VLINE emulates the factory USB mode of the stereo. No factory functions of the stereo will be disabled except factory USB mode. Factory Bluetooth, Navigation, Radio, and CD player will remain functional. Selecting the VLINE mode: Press the AUX-USB button to access the USB mode of the stereo to enter into VLINE interface mode (you may need to press it a few times).

  • Page 12: Chapter 3 - Troubleshooting And Tips

    2.5 Adjusting Audio Bass, Treble, Balance/Fade for VLINE Mode - using Factory UI Use the Factory UI icon to get to the factory UI and adjust sound settings. While in the VLine VL2 main screen, press on empty PLUS sign and go to Shortcuts --> Factory UI.

  • Page 13: Support

    Unless otherwise prescribed by law, GROM Audio shall not be liable for any personal injury, property damage and or any incidental or consequential damages of any kind (including water damage) resulting from malfunctions, defects, misuse, improper installation or alteration of this product.

  • Page 14: Grant Of License

    BETWEEN YOU, AS “THE END USER”, AND GROM Audio (“GROM”). PLEASE CAREFULLY READ THE TERMS AND CONDITIONS OF THIS AGREEMENT BEFORE USING THE GROM PRODUCTS. BY USING THE GROM PRODUCT AND THE SOFTWARE INSTALLED ON THE GROM PRODUCT, YOU ARE AGREEING TO BE BOUND BY THE TERMS OF AGREEMENT.

  • Page 15: Operational Warning And Safety Instructions

    IN CONNECTION WITH ANY BUSINESS, LOSS OF ANY GOODWILL, OR DAMAGES. THE TERM ‘INCIDENTAL DAMAGES’ REFERS TO THE EXPENSES OF TRANSPORTING THE PRODUCTS TO THE GROM AUDIO SERVICE CENTER, LOSS OF THE END-USERS [ORIGINAL PURCHASER’S] TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHER COSTS RELATED TO THE CARE AND CUSTODY OF THE PRODUCT.
  • Page 16 INJURY OR DEATH. IF YOU, THE END-USER ALLOW ANOTHER PERSON TO USE THE VEHICLE, IT IS YOUR RESPONSIBILITY TO THOROUGHLY BRIEF THAT OTHER USER, ON THE SAFETY REQUIREMENTS FOR OPERATING THE VEHICLE AND THE PRODUCTS INSTALLED THEREIN. (B) SAID DISCLAIMERS SHALL APPLY TO THE USE OF SAID PRODUCTS, EVEN IF GROM HAS BEEN INFORMED OF, KNEW OF, OR SHOULD HAVE KNOWN OF THE LIKELIHOOD OF SUCH DAMAGES.

  • Page 17: Third Party Materials

    - in a manner that would distract the driver or that may otherwise cause injury or death to vehicle occupants or bystanders. GROM Audio is not in any way responsible for any such use by you. In all cases, GROM Audio may limit or revoke your use for any reason and at any time.

  • Page 18: Location, Maps, Navigation And Traffic Data

    By using the Third Party Materials, you agree to comply with the use terms of the provider of such Third-Party Materials. GROM AUDIO does not warrant or endorse and does not assume and will not have any liability or responsibility to you or any other person for any Third Party Materials or for any other materials, products, or services of third parties.

  • Page 19: Grom Audio Compatibility Disclaimer

    A. INDEMNIFICATION OF GROM AUDIO, ITS AGENTS AND EMPLOYEES. By Purchasing, Installing and Using the Products, You, the End- User, agree to indemnify, defend and hold harmless, GROM AUDIO, and it s Affiliates, Directors, Officers, Agents and Employees from any Liabilities, Damage, Loss, Claim and Expense (including reasonable Attorney’s Fees) arising out of the...

  • Page 20: Engine/System Noise Disclaimer

    Should you experience incompatibility issues, you may contact us via our support page. GROM Audio also carries a standard 30 day return policy. ENGINE/SYSTEM NOISE DISCLAIMER Engine / system noise may occur in some installations and is not easily predictable.
