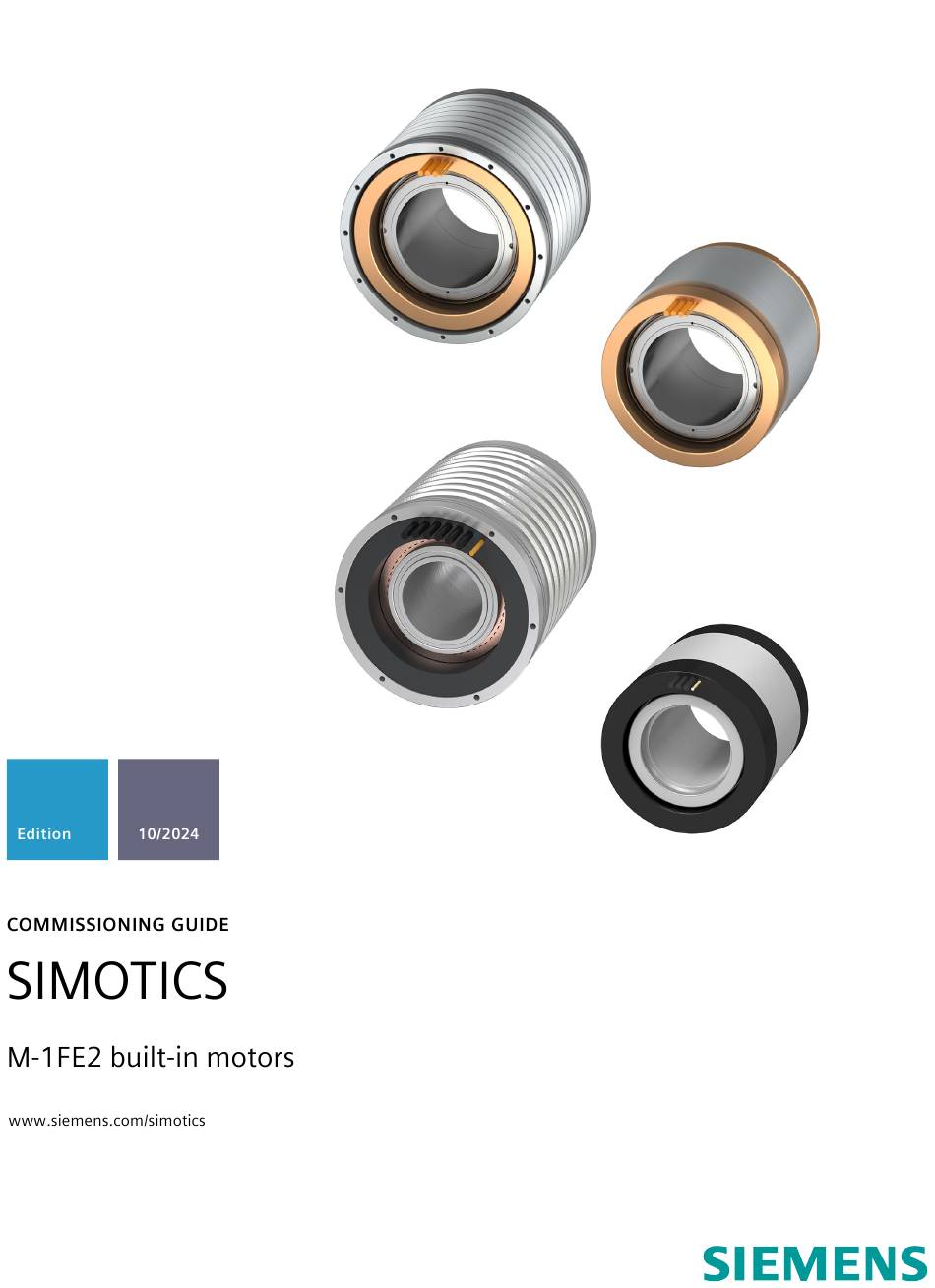

Siemens SIMOTICS M-1FE2 Commissioning Manual

Siemens SIMOTICS M-1FE2 Commissioning Manual

Built-in motors
Hide thumbs Also See for SIMOTICS M-1FE2:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIMOTICS M-1FE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Siemens SIMOTICS M-1FE2

Summary of Contents for Siemens SIMOTICS M-1FE2

  • Page 3 Introduction SIMOTICS Installing the motor SIMOTICS Commissioning an induction motor Drive technology Commissioning guide for Converter data sheets SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual 10/2024 A5E53825177B AB...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5 Installing the motor ..........................23 Commissioning an induction motor ....................25 Commissioning variants ..................... 25 Commissioning using STARTDRIVE..................25 Commissioning with STARTER .................... 32 Converter data sheets.......................... 39 Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 6 Table of contents Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 7 Introduction About SIMOTICS Description SIMOTICS is the Siemens family of electric motors addressing the complete motor spectrum in Digital Industry. About this manual 1.2.1 Content Description This Configuration Manual supports you when selecting motors for your application. The Configuration Manual refers to rules and guidelines for configuring motors.
  • Page 8 Links to additional information are underlined in blue. The mouse pointer changes to a hand symbol when you hover over the reference or link with the mouse. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 9 This document may contain hyperlinks to third-party websites. Siemens is not responsible for and shall not be liable for these websites and their content. Siemens has no control over the information which appears on these websites and is not responsible for the content and information provided there.
  • Page 10 • via ID link • using the Siemens Industry Online Support – Website: SIOS (https://support.industry.siemens.com/cs/ww/en/) – App Industry Online Support (for Apple iOS and Android) Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 11 1.4.2 Spare parts services The online spare part service "Spares on Web" offers spare parts for the product. See also Spares on Web (https://www.sow.siemens.com) Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 12 Comply with the separately added supplementary notes. • Only use the motors and their components for the applications specified by Siemens. • Protect the motors against dirt and contact with aggressive substances.
  • Page 13 Predictable incorrect use WARNING Injuries due to incorrect use If you use the motor other than how SIEMENS intended, then death or severe injury can occur. You destroy or damage the motor. Misuse includes, for example • Not complying with the operating instructions or the Configuration Manual •...
  • Page 14 Introduction 1.5 Proper and intended use / foreseeable incorrect use Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 15 • Only use power supplies that provide SELV (Safety Extra Low Voltage) or PELV- (Protective Extra Low Voltage) output voltages for all connections and terminals of the electronics modules. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 16 • Tighten all power connections to the prescribed torque. • Check all power connections at regular intervals, particularly after equipment has been transported. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 17 • Check that the warning labels are complete based on the documentation. • Attach any missing warning labels to the components, where necessary in the national language. • Replace illegible warning labels. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 18 • When transporting or storing permanent-magnet motors, always use the original packing materials. • Clearly mark the storage locations with the appropriate warning labels. • IATA regulations must be observed when transported by air. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 19 Measures when maintenance is required: • Allow drive components to cool off before starting any work. • Use appropriate personnel protection equipment, e.g. gloves. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 20 Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure...
  • Page 21 • Protect files stored on exchangeable storage media from malicious software by with suitable protection measures, e.g. virus scanners. • Carefully check all cybersecurity-related settings once commissioning has been completed. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 22 5. Release of environmental pollutants or emissions as a result of improper operation of the system and/or failure to dispose of components safely and correctly Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 23 For more information about the residual risks of the drive system components, see the relevant sections in the technical user documentation. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 24 SIMOTICS 2.1 Fundamental safety instructions Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 25 A converter setting data sheet is available for every 1FE2 induction motor. Take the required set values from the relevant converter setting data sheet. See also Commissioning with STARTER (Page 32) Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 26 Installing the motor Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 27 Activating flux reduction (p1581) is not permissible for 1FE2 motors. Commissioning using STARTDRIVE Introduction The motors are commissioned in several steps. • Commission completely to the end. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 28 Procedure according to variant A You are offline. 1. Open STARTDRIVE 2. Select "Select standard motor from list" Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 29 If you do not find the article number of your motor in the motor data list of the standard motors, then proceed according to Variant B. Procedure according to variant B You are offline. 1. Open STARTDRIVE 2. Open "Motor data input" Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 30 3. From the list, select "Induction motor" 4. Select the corresponding parameter 5. Manually enter the values according to the associated converter setting data sheet. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 31 Check: p300 = 1 2. Enter motor parameter p300 = 1 → you select a "general induction motor (rotary)" 3. To exit motor parameterization, enter p10 = 0 Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 32 – p347 → set values, see the converter setting data sheet – p388 → set values, see the converter setting data sheet – p640 → set values, see the converter setting data sheet Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 33 – Reference variables p2000, p2002 and p2003 2. Continue with the commissioning – Take into account the load moment of inertia – Optimize the speed and position controllers Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 34 • You have opened the "STARTER" commissioning tool. • You have authorization for access level 4 "Service" • You know the motor article number Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 35 If you do not find the article number of your motor in the motor data list of the standard motors, then proceed according to Variant B. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 36 3. From the list, select "Induction motor" 4. Select "Induction motor (rotary)" 5. Select the corresponding parameter 6. Manually enter the values according to the associated converter setting data sheet. Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 37 Check: p300 = 1 2. Enter motor parameter p300 = 1 → you select a "general induction motor (rotary)" 3. To exit motor parameterization, enter p10 = 0 Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 38 1. Set p1810.11 = yes or p1810 = x8xx (hex) 2. Check: p118 = 20.5 µs 2. Set p118 = 20.5 µs (only possible with access level service = ac‐ cess level 4) Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 39 • Enter the remaining data according to the converter data sheet. Pay particular attention to parameters – p1400 – p1402 – p1715 – p2952, p2953, p2954 Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 40 – Reference variables p2000, p2002 and p2003 2. Continue with the commissioning – Take into account the load moment of inertia – Optimize the speed and position controllers Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 41 Speed at the start of field weaken‐ Parameters(348,0) 1000 2000 Vdc = 600 V ing Vdc = 600 V Motor-Ständerwiderstand kalt Motor stator resistance, cold Parameters(350,0) 0.244 0.0832 Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 42 -43.2 -58.6   Bezugsdrehzahl Bezugsfrequenz Reference speed reference fre‐ Parameters(2000,0) 2000 quency Bezugsstrom Reference current Parameters(2002,0) Bezugsdrehmoment Reference torque Parameters(2003,0) Bezugsbeschleunigung Reference acceleration Parameters(2007,0) Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 43 K04 Procedure for ongoing commissioning • Select the converter data sheet for your motor • Complete the parameters required corresponding to your commissioning tool Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 44 Converter data sheets Commissioning guide for SIMOTICS M-1FE2 for shaft heights 70, 110, 120 Commissioning Manual, 10/2024, A5E53825177B AB...
  • Page 46 More information SIMOTICS: www.siemens.com/simotics Industry Mall: www.siemens.com/industrymall Industry Online Support www.siemens.com/online-support...
