Leviton T5637, T5837 Manual
![]()
FEATURES
- The Duplex Dual Type C USB Charger/Tamper Resistant Outlet provides:
- Two USB Type-C ® ports capable of 5V DC with a combined power output of 30W.
- When either port is connected to a portable device, the charger will output for 5V DC at 3A maximum (15W).
- Once both ports are connected to portable electronic devices, each port will output 5V DC at 3A maximum.
- Two 15A-125VAC or 20A-125VAC outlets.
- The USB ports are used to charge portable electronic devices ONLY (no data transfer capability).
INSTALLATION
![]()
TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING! - This device is to be installed in a wall box measuring at least 3" x 2" x 2-1/2" (standard single gang electrical wall box) and wired in accordance with NEC article 314 box fill requirements.
- Connect wires per WIRING DIAGRAM as follows:
NOTE: Back and Side wire terminals accept #14-#12 AWG copper or copper clad wires. - Wire.
- To Side Wire (if more than one wire is required on a terminal, you cannot side wire and must use the backwire option): Remove insulation from each circuit conductor per strip gage on device [approx. 3/4 in (1.9 cm)]. Loop wires clockwise 3/4 turn around terminal screws. Tighten screws over wire loop (apply torque value of 14-18 in-lbs).
- To Back Wire: Remove insulation from each circuit conductor [approximately 1/2 in (1.3 cm)]. Insert straight wires under clamps next to appropriate terminal screws. Tighten screws FIRMLY.
- Mount device in wallbox with screws provided and mount wallplate.
- Restore power at circuit breaker or fuse. Installation is complete.

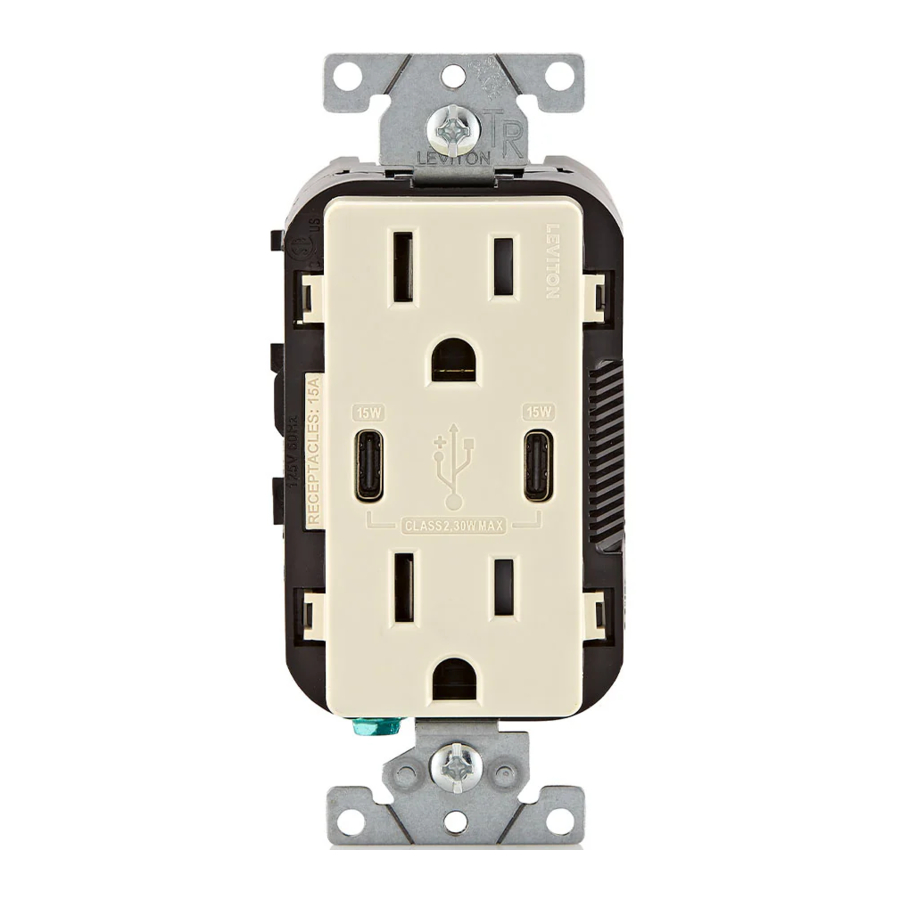

Duplex USB Charger Tamper Resistant Outlet
![Leviton - T5637 - Duplex USB Charger Tamper Resistant Outlet Duplex USB Charger Tamper Resistant Outlet]()
Charges most Type C USB devices and most Type A USB devices with an adapter
Use with Decora ® wallplate
Compatible with most USB powered devices including: tablets (Apple iPad, Samsung Galaxy, Amazon Kindle); smartphones (Apple iPhone, Samsung Edge and Note, Google Pixel, Motorola Moto Z); laptops (Apple Macbook, Google Chromebook, and Asus); and many more.
Wiring Diagram
![Leviton - T5637 - Wiring Diagram Wiring Diagram]()
![]()
- TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
- To be installed and/or used in accordance with appropriate electrical codes and regulations.
- If you are not sure about any part of these instructions, consult an electrician.
- This device CANNOT be used for separate feed applications. If the outlet you are replacing has the top and bottom outlets controlled by separate circuit breakers, you cannot use this device.
![]()
- To be used with Class 2 connectors with interconnecting cables.
- The Class 2 USB ports are not intended for use with appliances and supporting products.
- All connected Class 2 output cables must be routed away from the receptacle slots or any plug/cord inserted into the receptacle.
- Use this device with copper or copper clad wire only.
- Use this device with wires rated for at least 167°F (75˚C).
