Leviton T5632, T5832 Manual

FEATURES

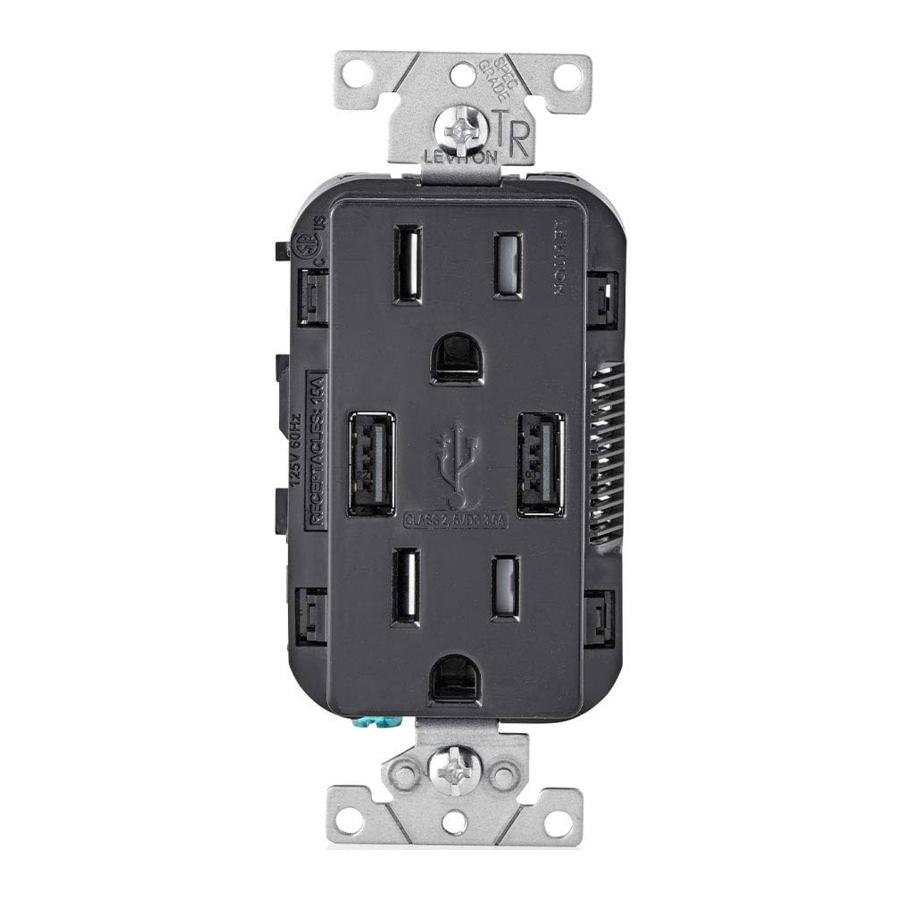

• The Duplex USB Charger/Tamper Resistant Outlet provides:
  • Two 5VDC powered USB ports with a combined total of 3.6A charging current; and
  • Two 15A-125VAC or 20A-125VAC outlets.
• The USB ports are used to charge portable electronic devices ONLY (NO data transfer capability).

INSTALLATION

1.
   TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
2. This device is to be installed in a wall box measuring at least 3" x 2" x 2-1/2" (standard single gang electrical wall box) and wired in accordance with NEC article 314 box fill requirements.
3. Connect wires per WIRING DIAGRAM as follows:
   NOTE: Back and Side wire terminals accept #14-#12 AWG copper or copper clad wires.
4. 1. To Side Wire (if more than one wire is required on a terminal, you cannot side wire and must use the backwire option): Remove insulation from each circuit conductor per strip gage on device [approx. 3/4" (1.9 cm)]. Loop wires clockwise 3/4 turn around terminal screws. Tighten screws over wire loop (apply torque value of 14 -18 in-lbs).
   2. To Back Wire: Remove insulation from each circuit conductor [approx. 1/2" ( 1.3 cm)]. Insert straight wires under clamps next to appropriate terminal screws. Tighten screws FIRMLY.
5. Mount device in wall box with screws provided and mount wallplate.
6. Restore power at circuit breaker or fuse. Installation is complete.

Wiring Diagram

WARNINGS AND CAUTIONS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
• This device CANNOT be used for separate feed applications. If the outlet you are replacing has the top and bottom outlets controlled by separate circuit breakers, you cannot use this device.
