WARNINGS AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
• This device CANNOT be used for separate feed applications. If the outlet you
are replacing has the top and bottom outlets controlled by separate circuit
breakers, you cannot use this device.
FEATURES
• The Duplex Type A & C USB Charger /Tamper Resistant Outlet provides:
- One Type A and one Type C 5VDC powered USB ports with a combined
Total of 5.1A charging current.
- Two 15A-125VAC or 20A-125VAC outlets.
• The USB ports are used to charge portable electronic devices ONLY
(NO data transfer capability).
INSTALLATION
1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER
AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF
BEFORE WIRING!
2. This device is to be installed in a wall box measuring at least
3" x 2" x 2-1/2" (standard single gang electrical wall box) and wired
3. Connect wires per WIRING DIAGRAM as follows:
NOTE: Back and Side wire terminals accept #14-#12 AWG copper or
copper clad wires.
4a. To Side Wire (if more than one wire is required on a terminal, you
cannot side wire and must use the backwire option):
Remove insulation from each circuit conductor per strip gage on device
[approx. 3/4" (1.9 cm)]. Loop wires clockwise 3/4 turn around terminal
screws. FIRMLY tighten screws over wire loop.
4b. To Back Wire: Remove insulation from each circuit conductor [approx.
1/2" ( 1.3 cm)]. Insert straight wires under clamps next to appropriate
terminal screws. Tighten screws FIRMLY.
5. Mount device in wall box with screws provided and mount wallplate.
6. Restore power at circuit breaker or fuse. Installation is complete.
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation of the device.
This product is covered by U.S. Patent Nos. 7,355,117; 7,820,909; 7,868,719; 8,242,362 and corresponding foreign patents.
Third party company names, product names and/or trademarks are the property of their respective owners.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including
© 2017 Leviton Mfg. Co., Inc.

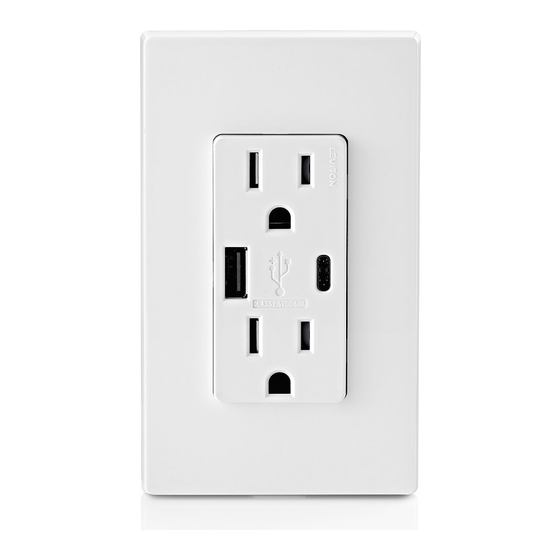

Duplex USB Charger/Tamper Resistant Outlet
Cat. No. T5633 (15A-125VAC/CA)
Cat. No. T5833 (20A-125VAC/CA)
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment,
. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) www.leviton.com
USB Rated: 5.1A
WARNINGS AND CAUTIONS:
• To be used with Class 2 connectors with interconnecting cables.
• The Class 2 USB ports are not intended for use with appliances and
supporting products.
• All connected Class 2 output cables must be routed away from the
receptacle slots or any plug/cord inserted into the receptacle.
• Use this device with copper or copper clad wire only.
alimentados por USB de Tipo A y Tipo C
Hot (Black)
Actif (Noir)
Fase (Negro)
Neutral (White)
Neutre (Blanc)
Neutro (Blanco)
Terre vert
Verde a tierra
For details visit www.leviton.com or call 1-800-824-3005. This warranty
Duplex USB Charger
Tamper Resistant Outlet
Compatible with most USB powered
Double Chargeur USB
devices including: tablets (Apple
iPad, Samsung Galaxy, Amazon
Prise Inviolable
Kindle); smartphones (Apple iPhone,
Doble Cargador USB
Samsung Edge and Note,
Google Pixel, Motorola Moto Z);
Contacto con Seguro
laptops (Apple Macbook, Google
Chromebook, and Asus); and many more.
USB Charger
Compatibilité avec la plupart des appareils
Chargeur USB
à alimentation USB : tablettes (iPad d'Apple,
Cargador USB
Galaxy de Samsung, Kindle d'Amazon),
téléphones intelligents (iPhone d'Apple,
Tamper Resistant
Edge et Note de Samsung, Pixel de Google,
Outlet
Moto Z de Motorola), portables (MacBook
Prise inviolable
d'Apple, Chromebook de Google et Asus)
Contacto con
et plus encore.
Seguro
Compatible con la mayoría de los
Charges most Type A and
dispositivos alimentados por USB,
Type C USB powered devices
incluyendo: tabletas (Apple iPad, Samsung
Recharge la plupart des dispositifs
Galaxy, Amazon Kindle); teléfonos
alimentés via USB de types A et C
inteligentes (iPhone de Apple, Samsung
Carga la mayoría de los dispositivos
Edge y Note, Google Pixel, Motorola Moto
Z); computadoras portátiles (Apple
Macbook, Google Chromebook y Asus);
Use with Decora
®
wallplate
y muchos más.
Utiliser avec plaque murale Decora
MD
Use con la placa de pared Decora
®

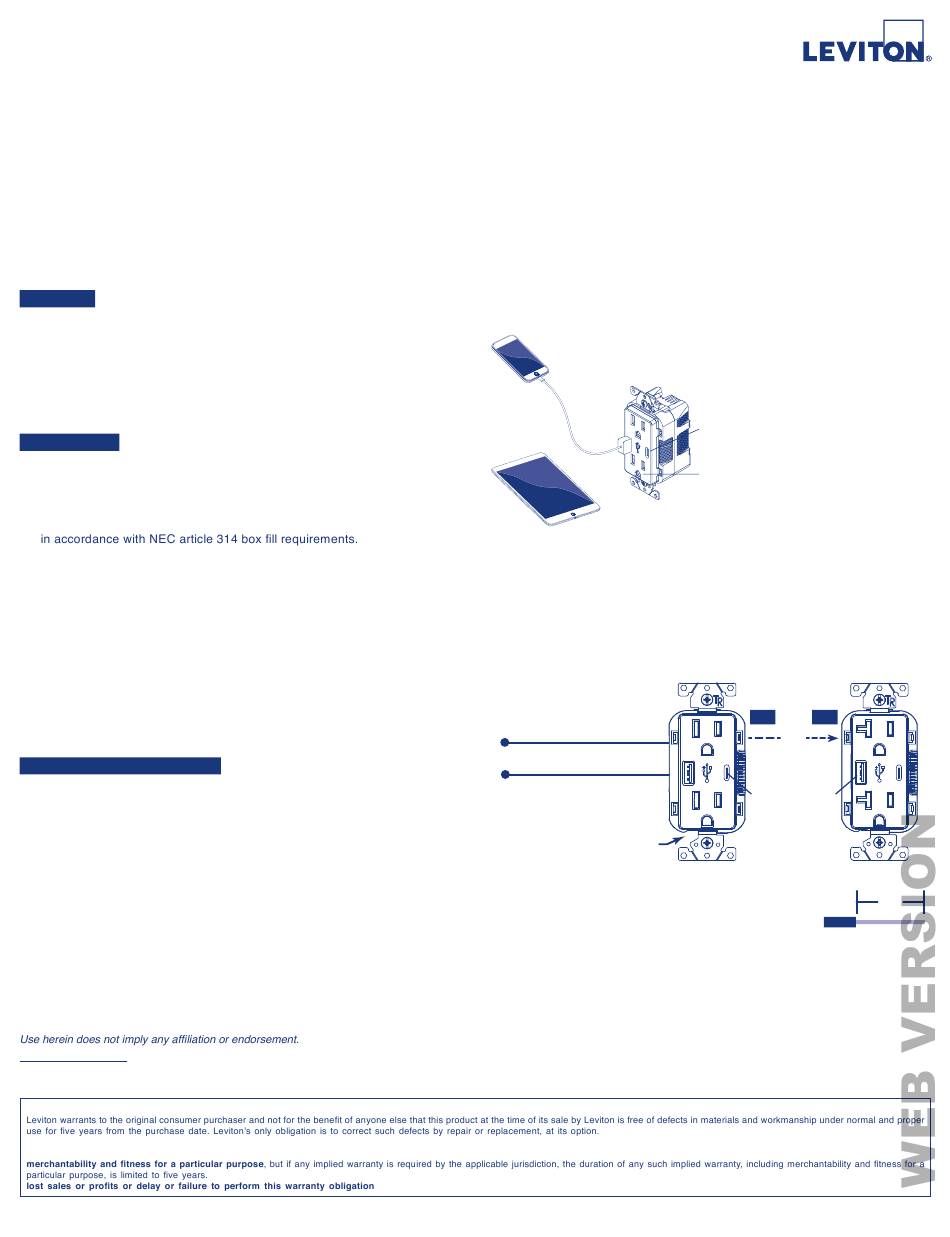

Wiring Diagram
Schéma de cablâge
Diagrama de Alambrado
15A
or
ou
Type C
Green
Type C
Ground
Tipo C
Strip Gage
Gabarit de dénudage
Medida de pelado
PK-A3215-10-02-2A
20A
o
Type A
Type A
Tipo A
3/4"
(1.9 cm)
PK-A3215-10-02-2A
