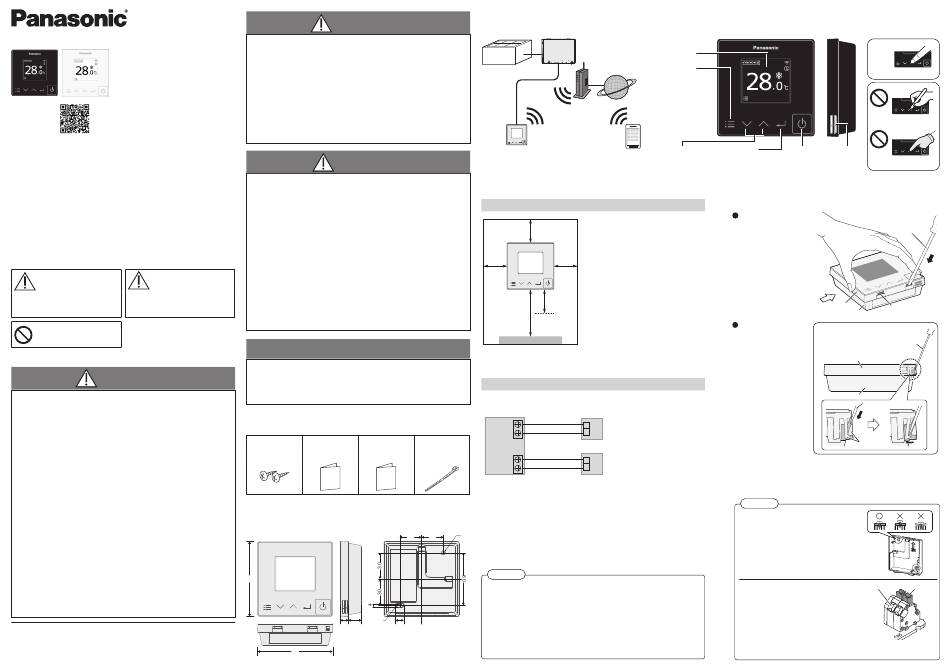

Panasonic CZ-RTC6Z2 Installation Instruction

Installation Instructions
Zone Remote Controller
CZ-RTC6Z2
Model No.
CZ-RTC6WZ2
https://eu.datanavi.ac.smartcloud.panasonic.com/documents/index.htm?model=CZ-RTC6Z2
Please Read Before Starting
These instructions are all you need for most installation sites and
maintenance conditions. If you require help for a special problem, contact our
sales/service outlet or your certified dealer for additional instructions.
Safety Precautions
We assume no responsibility for accidents or damages resulting from methods other
than those described in the Installation Instructions or methods using unspecified parts.
Malfunctions that occur due to unauthorised installation methods are not
covered by the product warranty.
● This remote controller must be installed in accordance with National Wiring
Regulations.
● Please also read installation instructions of connected devices.
● When relocating or repairing this remote controller, provide the Installation
Instructions to the servicing personnel.
WARNING CAUTION
This symbol refers to a hazard or This symbol refers to a hazard or unsafe
unsafe practice which can result in practice which can result in personal
severe personal injury or death. injury or product or property damage.
Prohibited matters
Precautions for Installation setup
WARNING
z Turn off the circuit breaker of the units before installation.
z Select an installation location which is rigid and strong
enough to support or hold this remote controller, and select
a location for easy maintenance.
z Use only the parts specified by Panasonic as supplied accessories.
z Ensure cables are installed properly so that external forces cannot
affect them.
z Disassembly and modification of this remote controller is
not permitted under any circumstances.
z This remote controller must be installed by the sales dealer
or installer.
z When installing the remote controller, use appropriate
protective equipment and tools for safety.
z This remote controller should be securely installed in
accordance with the Installation Instructions.
z Electric work must be performed by authorised personnel
in accordance with the local regulations and in accordance
with the Installation Instructions.
z To avoid malfunctions caused by radio wave interference, keep
the remote controller away from devices such as other wireless
device, microwaves and the device that use 2.4 GHz signal.
Depending on the area, the module may not be available.
z Attach the electrical cover to the indoor unit securely.
z Make sure to connect the remote controller to the PCB and
terminal board of the indoor unit properly.
© Panasonic Corporation 2024
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
Panasonic Corporation
http://www.panasonic.com
WARNING
z Do not set up in hospitals or places where electronic
medical devices are located.
z If you have a cardiac pacemaker or implantable cardioverter
defibrillator, please keep at least 15 cm away from the
remote controller.
z Do not use the remote controller near to automatic control
equipment (automatic door, fire alarms, etc.).
z In case of an abnormal condition (such as a burning smell),
stop the indoor unit and turn the breaker OFF.
z Do not operate with wet hands.
z Do not splash water on the remote controller or use it in the
bathroom.
CAUTION
z Ground yourself to discharge static electricity before
performing any wiring.
z Do not install the remote controller in places with direct
sunlight or where the ambient temperature is 40 ˚C or more
or is 0 ˚C or less. Follow "Specifications".
z The connecting cable must not touch piping directly.
z Do not set up where children can reach the remote
controller.
z Do not stand on an unstable surface when operating or
checking the remote controller.
z Do not use in special environments.
Use in places with much oil (including machine oil), steam,
flammable or corrosive gas, voltage fluctuation, surrounding
the metal body, may lead to severe decrease in functionality
and damage to parts.
z Do not use the remote controller nearby other wireless
devices, microwaves, cordless phones, or facsimiles.
NOTE
● Install this remote controller vertically.
● When attaching this remote controller, be sure to use the supplied
screws and confirm that remote controller is fixed to the surface so
that there are no gaps.
● The warranty does not cover the product if it falls from an elevated location.
Supplied accessories
Screw Operating Installation
Instructions Instructions
M3.8 x 16
(2) (1)
*Zone control wiring is not supplied. (field supplied item)
Dimention
86
4×10
10 15
Printed in China
86
ACXF60-56060
O0924-0
System Overview
Zone Control Box
Ducted indoor unit
Wireless
LAN
Zone Remote Controller
Installation Precautions
Installation location
50 mm
50 mm 50 mm
50 mm
1 to
1.5m
Floor
Zone control wiring
Wiring diagram
Zone Control Box
RC1
R1
terminal
board R2
Clamper
(1) (1)
RC2
R1
terminal
board R2
Zone control wiring
(field supply)
• No polarity
• 50 m MAX.
● When only 1 Zone Remote Controller is to be used, connect it to the RC1
terminal board on the Zone Control Box.
● When 2 Zone Remote Controllers are to be used, connect one to the RC1
25 25 φ4
terminal board and one to the RC2 terminal board.
● The Zone Remote Controller connected to the RC1 terminal board will become
the Main.
● The WLAN function is available only with the Zone Remote Controller (Main).
Attention
● Use the field supplied Zone control wiring with at least 1 mm in thickness
of insulation part including the sheath.
Wiring Regulations may differ depending on location. For field wiring
rules, please refer to your LOCAL ELECTRICAL CODES.
You must ensure that installation complies with relevant rules and
regulations.
(mm) ● Be careful not to connect cables to other terminals of Zone Control Box
10
(e.g. power source wiring terminal). Malfunction may occur.
● Do not bundle together with the power source wiring or store in the same
metal tube. Operation error may occur.
● If noise is induced to the unit power supply, attach a noise filter.

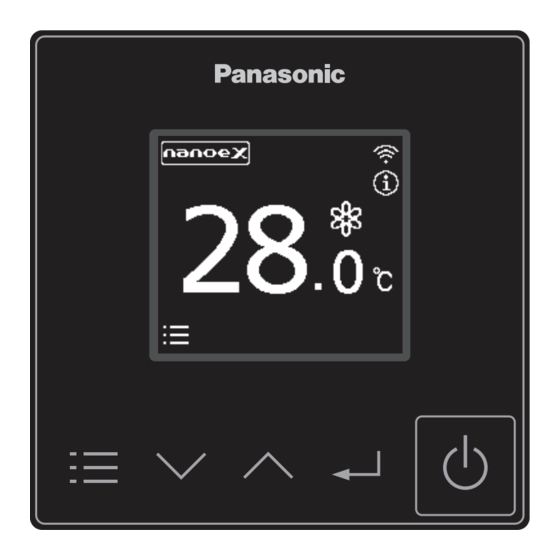

Part Names (Control panel)
The control panel colour of CZ-RTC6WZ2 is white.
1) LCD screen
2) Menu button
● When pressed repeatedly
during operation,
this shows operating
status confirmation, set
temperature, operation
mode, fan speed, zone,
Router Internet
and the menu screen.
● When pressed while
stopped, the menu
screen is displayed.
Zones can be selected
even while stopped.
3) Up/Down 4) Enter button
Mobile device
buttons Fixes the selected
("Panasonic Comfort Cloud")
content.
Selects an item.
Mounting
1
Remove the top case
1 Insert the screwdriver to
● Install at the height of 1 to 1.5 m from
the bottom case.
the floor (Location where average room
Insert the flat-blade
temperature can be detected).
screw driver to the
● Keep a space around the remote controller
claws as show in the
as detailed on the figure shown left.
figure.
● Avoid the following locations for
installation.
• In the shadow or backside of objects
deviated from the room airflow
• Location where condensation occurs
( The remote controller is not moisture
proof or drip proof)
• Location near heat source
● Keep distance of 1 m or more from the
TV, radio and PC.
( Image blur or related noise may occur) 2 Push the flat-blade
● Do not use in special environments. screwdriver in.
Push down the flat-
Use in places with much oil (including
blade screwdriver along
machine oil), steam, flammable or corrosive
with the slope of the
gas, voltage fluctuation, surrounding the
claws until the top case
metal body, may lead to severe decrease in
comes off.
functionality and damage to parts.
„ Type of wiring
Zone Remote Controller
z Use cables of 0.75 mm to
2
(Main)
1.25 mm
2
1 (AWG#18 to AWG#16)
(Min. 0.75 mm 2 )
2
„ Wiring between the
Zone Remote Controller
Zone Control Box and
(Sub)
Zone Remote Controller
z 50 m or less.
1
„ Number of connectable units
2
2
z Up to 1 Zone Remote
Mount to the wall.
Controller per RC1/RC2
terminal board.
There are 2 types of wall-mounting methods: Exposed type and Embedded type.
* Do not connect multiple
Zone Remote Controllers
Attention
to a single RC1/RC2
terminal board. Mounting the bottom case
● Tighten the screws securely until the screw
heads touch the bottom case.
( Otherwise, loose screw heads may hit the
PCB and cause malfunction when mounting
the top case.)
● Do not over-tighten the screws.
( The bottom case may be deformed, resulting
in the unit becoming detached from the
surface it is fixed to.)
Connection to the remote controller
terminal board
● Depress the push button using a round bar or
finger, insert the zone control wiring securely
from the wiring insertion slot and release the
push button.
● Pull the zone control wiring lightly, and
confirm it is secured.
● There is the danger of shorting if copper wire
is exposed. Make sure the wire is properly
inserted.
Note
Press centre
No pen
5) Start/Stop 6) Temperature
button sensor
Starts/Stops No glove
operation.
Flat-blade screwdriver
A
Top case
Claw
Bottom case (2 locations)
View A
Flat-blade screwdriver
Top case
Bottom case
Flat-blade screwdriver
Claw
Insertion slot Push button
Remote controller terminal board
