CDVI V4SR Manual
CDVI V4SR Manual

CDVI V4SR Manual

400kg surface electromagnetic lock
Hide thumbs Also See for V4SR:

Advertisement

Available languages

Available languages

Quick Links

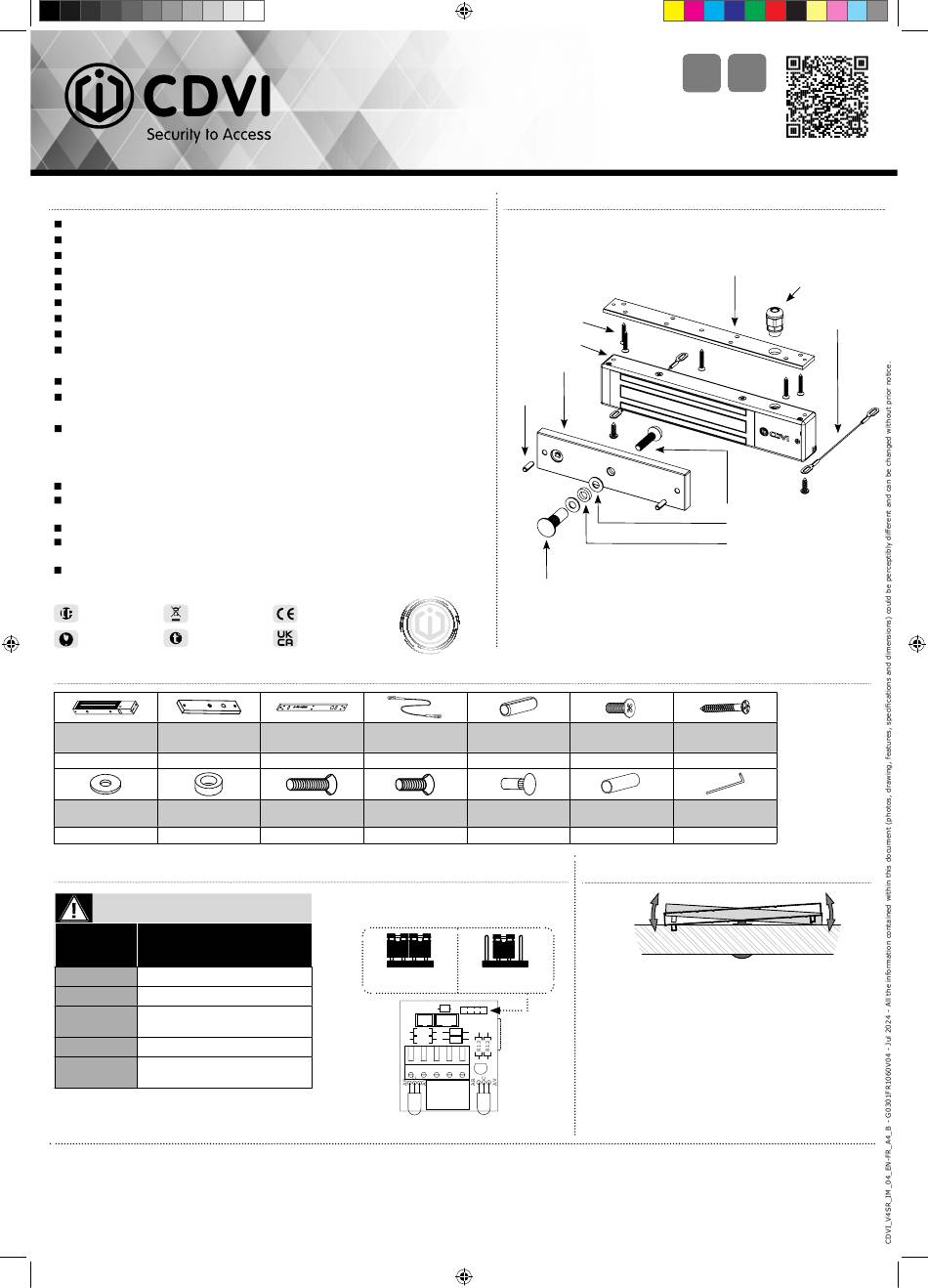

PRODUCT PRESENTATION / PRÉSENTATION DU PRODUIT
NF S61-937, EN1634-1/2 Fire rating / Certification incendie
Monitored / Signal
Surface mount / Montage en applique
High corrosion resistance / Résistance à la corrosion
Safety rope / Filins de sécurité
No mechanical wear / Pas d'usure mécanique
No residual magnetism / Pas de magnétisme résiduel
Recommended for interior use / Préconisée en intérieur
Fail safe (Door unlocked when power off) / Libère l'accès en
cas de coupure de courant
Holding force / Force de rétention : 400 kg
Visual indication / Signalisation lumineuse :
Red = Locked; Green = Open / Rouge = Fermé ; Vert = Ouvert
Built-in varistor / Varistance incorporée : Built-in
electronic protection to eliminate back EMF / protection
électronique intégrée contre l'effet de self
Dimensions (L x W x D) : 254 x 50 x 30 mm
Armature plate dimensions / Dimensions contre-plaque (L x W x D) :
185 x 45 x 12 mm
Power supply / Alimentation : 12-24V DC
Consumption / Consommation : 550 mA @ 12V DC / 6.6W
Power of remote / Entrée télécommande pour CMSI :
<0.4W @ 24V DC
IP42
WEEE & RoHS
IK10
-20°C - +60°C
PACKAGE CONTENT / ÉLÉMENTS INCLUS
Magnetic lock
Armature plate
Ventouse
contre-plaque
1
1
Steel washer
Rubber washer
Rondelle acier
Rondelle caoutchouc
2
1
ELECTRICAL CONNECTIONS / RACCORDEMENTS
12Vdc Default setup /
Réglage par défaut 12V DC
Terminal
Correspondence /
block /
Correspondance
Bornier
+
+
12V DC or 24V DC
- -
0V
0V
N.C
N.C
NC (Normally closed)
NF (Normalement fermé)
NF (Normalement fermé)
COM
COM
COM
N.O
N.O
NO (Normally open)
NO (Normally open)
NO (Normalement ouvert)
NO (Normalement ouvert)
The NO/NC signal only switches when the door is closed
with the power to it on.
Le signal NO/NF ne commute que lorsque la porte fermée est sous tension.
CDVI Group (Headquarters)
CDVI UK
FRANCE + EXPORT
Phone +44 (0)1628 531300
Phone +33 (0)1 48 91 01 02
www.cdvi.co.uk
www.cdvi.fr
CDVI AMERICAS
CDVI NORDIC
Phone +1 866 610 0102
Phone +46 (0)31 760 19 30
www.cdvi.ca
www.cdvi.se
CDVI_V4SR_IM_04_EN-FR_A4_B.indd 1
CDVI_V4SR_IM_04_EN-FR_A4_B.indd 1
V4SR
400kg surface electromagnetic lock
Ventouse électrogmagnétique applique 400kg
248
248x26x4,5mm
254
254x50x30mm
275 mA @ 24V DC / 6.6W
185x45x12mm
10
CE Certification
YEAR
UKCA Certification
WARRANTY
185
Fixing plate
Security Rope
Plaque de montage
Filin de sécurité
1
2
M8x35 Screw
M8x25 Screw
Vis M8x35
Vis M8x25
1
1
Voltage selection jumpers /
Cavaliers de tension sélection
VUE FACE COMPOSANTS
12V DC
VAR1
I1
1
R7
R8
P1
CR1
COUPER A RAS LES QUEUES DES COMPOSANTS
CDVI BENELUX
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
INSTALLATION / MONTAGE
Wood screw
Magnetic lock
Magnetic lock
Armature plate
Roll pin
Cap nut
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
F05250000015-A
C.A. :
Surface mount electromagnetic lock - 400kg
Material : Aluminium
General tolerance:
DES.: W. Sainvil
Vol. (mm
5x16 Roll pin
4X8 Screw
Goupille 5x16
Vis 4x8
2
Cap nut
Guide piece
Ecrou borgne
Embout de guidage
1
MOUNTING RECOMMENDATIONS /
RECOMMANDATIONS DE MONTAGE
- The magnetic lock and armature plate must be
24V DC
securely fixed to their supports and must be aligned.
- The armature plate must be mounted "floating" around
J1
the bolt to compensate for door misalignment.
1
- Use a thread lock to hold the fixing bolts in place
J2
1
(on armature and mounting plate).
CR5
CR4
- Il est vital de solidement fixer la ventouse et la contre-
1
plaque sur leurs supports et de les aligner.
Q2
- La contre-plaque doit être montée "flottante" autour
de la vis centrale pour compenser un mauvais
RL2
CR2
alignement de la porte.
- Utiliser du frein filet pour maintenir les boulons
de fixations en place.
CDVI IBÉRICA
Phone +34 (0)935 390 966
www.cdviberica.com
OE
DES.
VER.
APPR.
CDVI ITALIA
Phone +39 0321 90 573
S0101D731ED6001
www.cdvi.it
IMPLANTATION
TYPE
EN
FR
Fixing plate
Fixing plate
M8 Screw
Steel washer
Rubber washer
SCALE 1:2
V4SR
A3H
0.2
Surface condition: Ra 3,2
3
) :
Weight (g) :
4x25 Wood screw
Vis bois
1
6
Clé Allen/ Allen key
3 mm, 5 mm
1
1 x 3 mm, 1 x 5 mm
CDVI MAROC
CDVI GERMANY
Phone +212 5 2248 0940
+49 (0) 251 798477 0
www.cdvi.ma
www.cdvi.de
ED6
EDITION
CDVI POLSKA
22-06-11
DATE
Phone +48 12 659 23 44
C.D.V.I
www.cdvi.com.pl
www.cdvi.com
1
D731
PAGE
1
PAGE
(FR Regulation
Presse-étoupe
pour conformité
NF S61-937)
Security rope
Plan M1073-ens
Edition 02
Date 05/09/2019
Project : A0238005
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
31/07/2024 10:10
31/07/2024 10:10
