LIGHTING CONTROLS
MLS3xxxCDR Series
High Detection Microwave Sensors
1. CONTENTS
Sensor: Qty 1
Only suitably qualifi ed personnel should install this equipment.

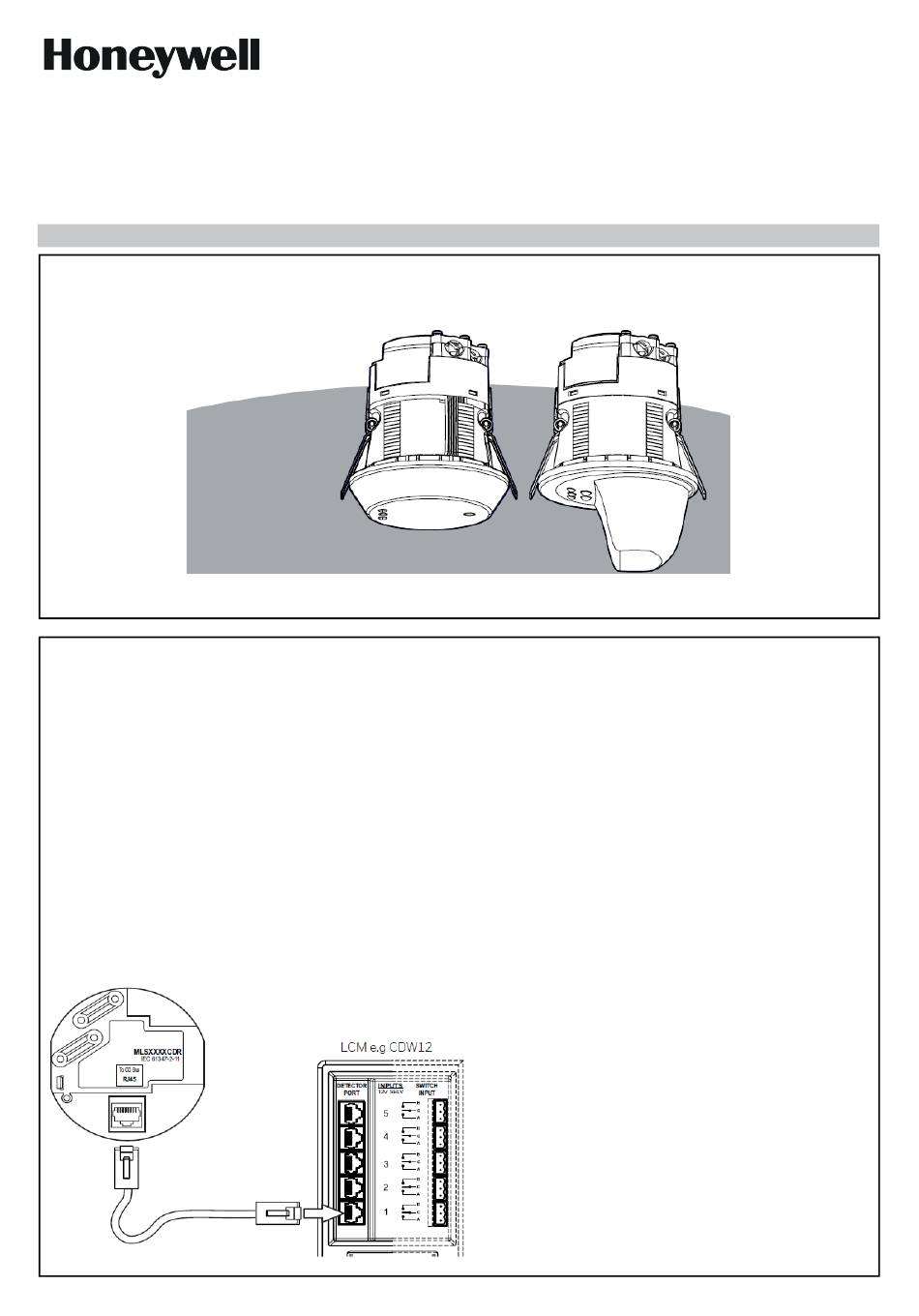

2. CONNECTING TO THE LCM (CDW12U5, CDW12X5, CDH4U5, CDH8U5)
The wiring scheme used should follow either the T-568A or the T-568B Ethernet standards, and must provide one-to-one,
straight-through connectivity between the two RJ45 connectors for all eight cores.
NOTES:
•
The leads must be segregated from mains wiring to preserve the detector SELV status that is provided by the LCM
design.
•
Strain-relief hoods should not be fi tted to the insulation displacement RJ45 connectors, due to the limited space
available above the sensor.
Terminal type: RJ45
Recommended cable: 4-twisted pair, 24 AWG multistranded, unscreened data cable to Category 5E standard (for example,
Belden Datatwist 350)
Max cable length: 100 m
Copyright © 2024 Honeywell International Inc.
Installation and Commissioning Instructions
Ready-made patch leads in lengths of 3 m
(BT5E030GY), 5 m (BT5E050GY), and 10 m
(BT5E100GY) are available.
If there is a requirement that the patch leads must be
protected by a conduit, it might be more convenient
to run the cables unterminated and attach the RJ45
connectors afterwards.
NOTE: The sensor is not an Ethernet device and cannot
be used with hubs and switches.
1
32351612-001

Advertisement

loading
Need help?

Need help?

Do you have a question about the MLS3 CDR Series and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell MLS3 CDR Series

Summary of Contents for Honeywell MLS3 CDR Series

  • Page 1 RJ45 connectors afterwards. NOTE: The sensor is not an Ethernet device and cannot be used with hubs and switches. 32351612-001 Copyright © 2024 Honeywell International Inc.
  • Page 2 MLS3xxxCDR-Installation and Commissioning Instructions 3. INSTALLATION 1) Determining Position The MLS3xxxCDR sensors are extremely sensitive movement detectors. The sensors must be installed on a rigid surface that will not be subject to movement or vibration. The detectors are not recommended for applications where there are large surface areas of metal, for example, metal ceiling or fl...
  • Page 3 MLS3xxxCDR - Installation and Commissioning Instructions 3. INSTALLATION (continued) 3) Fitting the Flush Mount Version (MLS3401CDRF and MLS3500CDRF) a) Prepare the mounting location and run the cables: b) Connect to the LCM (CDW12U5, CDW12X5, CDH4U5, and CDH8U5). See Connecting to the LCM on page 1. c) Fix the cable clamps (optional for 1 mm²...
  • Page 4 MLS3xxxCDR-Installation and Commissioning Instructions 3. INSTALLATION (continued) 4) Fitting the Surface Mount Version NOTE: A surface mount kit is required for the surface mount version. a) Remove the springs and attach the shell: b) Attach the conduit fi ttings and cable glands to the lower housing (if required): c) Prepare the mounting location and run the cables.
  • Page 5 MLS3xxxCDR - Installation and Commissioning Instructions 3. INSTALLATION (continued) 5) Performing the Walk Test To verify that the installation is correct, you should perform the walk test. Follow the instructions provided with the QSP. During the walk test, the connected lights are switched off until movement is detected. •...

  • Page 6: Led Indication

    MLS3xxxCDR-Installation and Commissioning Instructions 4. CONFIGURATION (continued) Setting the Switching Light Level The desired switching light level must now be calculated by either waiting for an appropriate time of day or by a combination of manually switching off lights and perhaps masking windows. Using the QuickSet Pro Programmer, enter the Utilities menu, select LightSpot / MLS / LCM, and then select IR Remote.
  • Page 7 MLS3xxxCDR - Installation and Commissioning Instructions 32351612-001...
