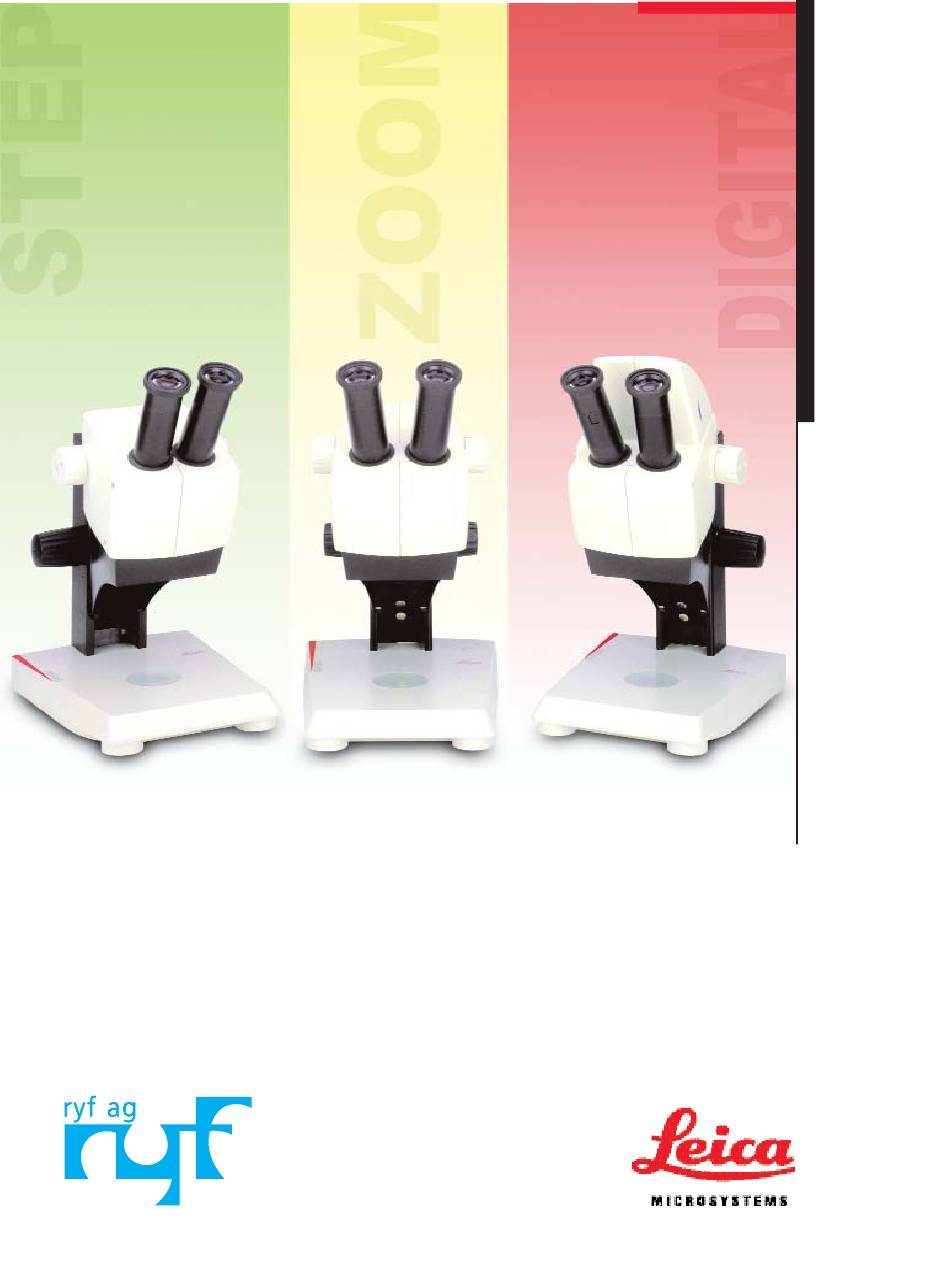

- Page 1 Leica E-Serie - Instruction manual Ryf AG Bettlachstrasse 2 2540 Grenchen tel 032 654 21 00 fax 032 654 21 09 www.ryfag.ch...
- Page 2 Thank you for your decision to use our product. We trust that you will fi nd much enjoyment and success with the school stereo microscopes from Leica Microsystems. The new stereomicroscope line is perfectly suited for practical instruction in schools and universities as well as for routine tasks in the laboratory and industrial production and Testing.
-
Page 3: Table Of Contents
Table of contents Scope of delivery and general notes ..........Description of the device . -
Page 4: Scope Of Delivery And General Notes
(RESY). Printed copies of the instructions for use are available from: smspromotion@leica-microsystems.com For the address of closest dealership to you, visit: www.leica-microsystems.com Your Leica Microsystems Ltd. -
Page 5: Description Of The Device
Description of the device Depending on the microscope type, various eyepieces with fold-out and detachable eyecups. Eyepiece necks adjustable individually for eye distance Integrated support column Magnifi cation changer with magnifi cation scale (specifi c to each device) Leica ES2: 2-step, 10x and 30x Leica EZ4 models: 4.4:1 Zoom magnifi... -
Page 6: Device Variants
Device variants The Leica ES2, EZ4 and EZ4 D stereomicroscopes are precision optical instruments designed to render objects, object details and specimens from the fi elds of science and technology more easily visible through magnifi cation. The full apparatus consists of a Leica ES2, EZ4 or EZ4 D stereomicroscope according to choice, with the following integrated components: •... -
Page 7: Magnification Display
Magnification display On the Leica ES2 and EZ4 models with fi xed eyepiece, the magnifi cation set can be read easily on the knob on the right. The additional magnifi cation provided by the eyepieces is already incorporated in the scale Tables optical data including object fi... -
Page 8: Illumination
Illumination All Leica stereomicroscopes are equipped with an integrated incident and transmitted light illumination: Incident and transmitted light can be switched on separately and also together. After switching off, the LEDs remain lit for about another 4 sec. Leica ES2 illumination There is one On/Off switch each •... -
Page 9: Starting The Leica Es2
Starting the Leica ES2 Adjust light: Place object (A) and depending on the object switch on incident or transmitted light with the switches on the side of the base (B). Incident light: for plastic, opaque objects Transmitted light: for transmitted light specimens or transparent objects Combination: for partly transparent objects... -
Page 10: Starting The Leica Ez4
Starting the Leica EZ4 If the illumination is not operated for 60 minutes, on the EZ4 models it switches off automatically. The illumination can be reactivated by pressing a button on the membrane keypad. Setting the eye distance Working without eyeglasses: Open out the eyecups Working with eyeglasses:... -
Page 11: Leica Ez4 With Open Tubes
Leica EZ4 with open tubes For replaceable eyepieces. The basic settings are the same as for the EZ4 models with fi xed eyepieces (see page 9). For diopter settings with adjustable eyepieces, see page 11 • Eyepieces replaceable, fi xed or adjustable: 10x/20, 16x/16 or 20x/12 •... -
Page 12: Diopter Settings From -5 To +5
Diopter settings with adjustable eyepieces General notes • Only with the Leica EZ4 with freely selectable, adjustable eyepieces. • For adjusting the diopter for impaired vision and for measuring with graticules. Users with normal vision do not need adjustable eyepieces! An adjustable eyepiece is suffi cient for mild shortsightedness! •... -
Page 13: Settings For Two Adjustable Eyepieces
Settings for two adjustable eyepieces See also general information on page 10. Preparation: Place a fl at test object under the objective. Set the eye distance and illumination. Set the lowest magnifi cation. Set both eyepieces to 0. Use the focusing drive to set the eye distance to about 100 mm. Prepare for focusing Look into both eyepieces and focus the test object. -
Page 14: Graticules / Inserting The Graticule
Graticules The graticules can only be inserted in adjustable eyepieces. The transparent graticules, which are insertable in the adjustable eyepieces, enable simple measurements to be made of objects that are being observed under the stereomicroscope. The following graticules and objective micrometers for calibrating may be ordered: Graticules: 10 mm Objective micrometers:... -
Page 15: Photographing With The Leica Dc150 Digital Camera
Photographing with the Leica DC150 digital camera The Leica DC150 digital camera can ONLY be attached to the Leica EZ4 with open tubes; in this way, photographs can be taken through the tube. First insert the battery and memory card. For instructions on installing the software and using the camera see the instructions for use for the DC150 digital camera. -
Page 16: Leica Ez4 D Device Overview
Leica EZ4 D device overview Do not insert anything except the SD card in the card slot – danger of short circuit and electric shock! Scope of delivery for the EZ4 D • Complete stereomicroscope with fixed 10x eyepieces and integrated 3.0 megapixel CMOS camera (see also page 5) •... -
Page 17: Photographing With The Ez4 D: Four Different Modes Of Use
Photographing with the Leica EZ4 D: Four different modes of use General notes • For instructions on installing and using the accompanying software, see the CD ROM, which is also supplied. • As soon as the EZ4 D is connected to a power cable and the mains switch is turned on, the integrated camera is also ready for use. •... -
Page 18: Care And Maintenance
Care and maintenance Dust and dirt will affect the quality of your results. Cover with the dust protection cover during breaks. Cover open tubes and eyepieces with dust caps. Remove dust with a pneumatic rubber bulb and a soft brush. Use only special optical cloths and pure alcohol to clean the eyepieces. -
Page 19: Stereomicroscope
Technical Data: Stereomicroscope Leica ES2 Leica EZ4 Leica EZ4 Leica EZ4 Leica EZ4 D Open Stereomicroscope Microscope type Stereomicroscope Stereomicroscope Stereomicroscope Stereomicroscope Stereomicroscope Optical system 10°-Greenough, 10°-Greenough, 10°-Greenough, 10°-Greenough, 10°-Greenough, parfocal parfocal parfocal parfocal parfocal Magnifi cation 2-level, 3:1 4.4:1 zoom 4.4:1 zoom 4.4:1 zoom 4.4:1 zoom... -
Page 20: Illumination System
Technical data: Illumination system Leica ES2 Leica EZ4 Leica EZ4 Leica EZ4 Leica EZ4 D Open Illumination system LED incident light/ Integrated, can be Integrated, can Integrated, can Integrated, can Integrated, can transmitted light activated separately be activated and be activated and be activated and be activated and illumination... -
Page 21: Digital Camera And Accessories
Technical data: Digital camera and accessories Leica ES2 Leica EZ4 Leica EZ4 Leica EZ4 D Leica EZ4 D Open Digital camera Digital camera 7.1 Mpixel Leica Integrated 3.0 Mega DC150 with adapter Pixel CMOS camera (optional accessory) Output USB2.0 Analog video output RCA, Video, Composite for projector, TV monitor,... -
Page 22: Environmental Conditions, Weights
Environmental conditions Environmental conditions Transport and storage: during operation: Ambient temperature Temperature +10 °C to +40 °C -20 °C ... +52 °C Rel. humidity Rel. humidity up to 35 °C ambient temperature: 75% 10 ... 95% (non-condensing) Air pressure Air pressure 700 ... -
Page 23: Optical Data
Optical data: Leica ES2 with 10x eyepieces Working distance 100 mm Eyepieces Total magnifi cation Object fi eld diameter (Position of the magnification changer) 10x/20 Leica EZ4 and EZ4 D with 10x eyepieces Leica EZ4 with 16x eyepieces Working distance 100 mm Working distance 100 mm Eyepieces Total magnifi... -
Page 24: Dimensions Of The Ez4 With 10X Eyepieces
Dimensions of ES2 with fixed 10x eyepieces (in mm) -
Page 26: Dimensions Of The Ez4 With 16X Eyepieces
Dimensions of the EZ4 with 10x eyepieces (in mm) - Page 28 Dimensions of the EZ4 with 16x eyepieces (in mm)
-
Page 30: Dimensions Of The Ez4 With Open Tubes
Dimensions of the EZ4 with open tubes (in mm) -
Page 32: Dimensions Of The Ez4 D
Dimensions of the EZ4 D (in mm)
