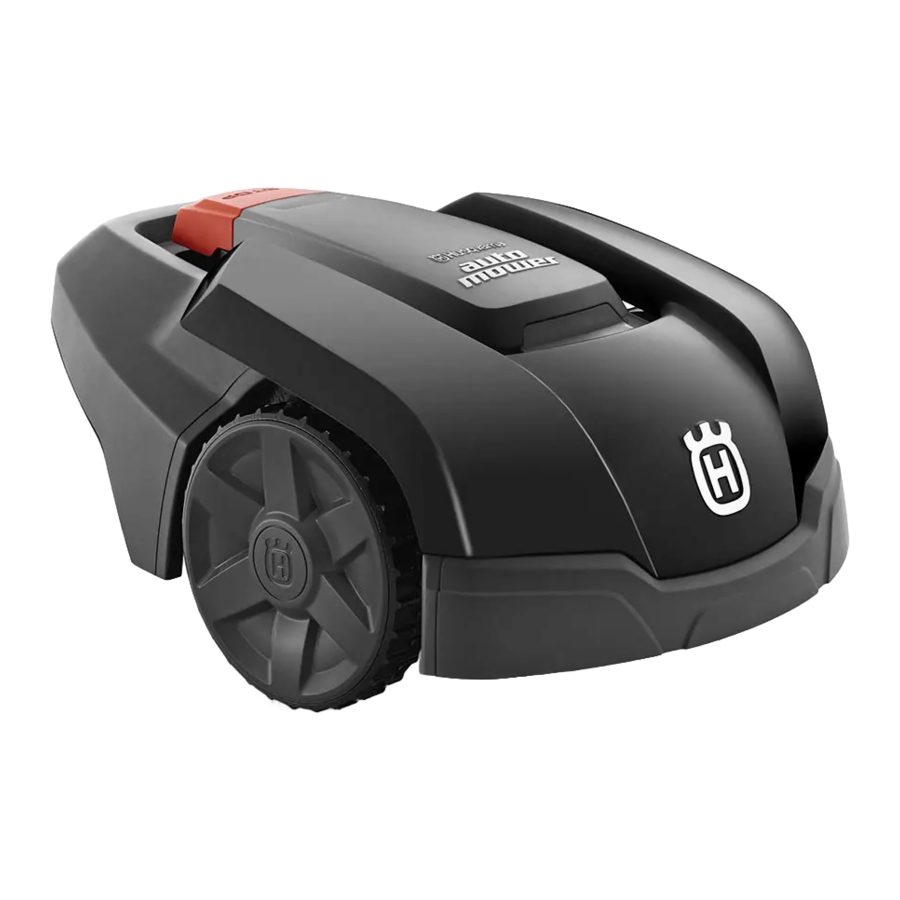

Husqvarna AUTOMOWER 105 Manual

PLACEMENT OF AND CONNECTING THE CHARGING STATION

PLACEMENT OF AND CONNECTING THE CHARGING STATION
See Fig. 1

  1. Place the charging station at a central position in the working area, with a lot of open space in front of the charging station and on a relatively horizontal surface.
  2. Connect the power supply's low voltage cable to the charging station and the power supply.
  3. Connect the power supply to a 100-240 V wall socket.
  4. Place the robotic lawn mower in the charging station to charge the battery while the boundary wire is laid. Set the main switch to position 1.

PLACEMENT OF THE BOUNDARY WIRE AND THE GUIDE WIRE

PLACEMENT OF THE BOUNDARY WIRE AND THE GUIDE WIRE
See Fig. 2

  1. Lay the boundary wire so that it forms a loop around the working area.
  2. Make an eyelet at the point where the guide wire will later be connected.
  3. Run the guide wire to the point on the boundary loop where the connection will be made. Avoid laying the wire at tight angles.

CONNECTING THE BOUNDARY WIRE AND THE GUIDE WIRE

CONNECTING THE BOUNDARY WIRE AND THE GUIDE WIRE
See Fig. 3

  1. Narrow passages in the yard make it difficult for the robotic lawn mower to find the charging station. The robotic lawn mower can be lead to remote areas using the guide wire. The guide wire also helps the robotic lawn mower to quickly find the charging station.
  2. Lay the guide wire under the charging station and at least 2 m / 7 ft straight out from the front edge of the charging station.
  3. Open the connectors and lay the wire ends in the recesses on each connector.
  4. Press the connectors together using a pair of pliers.
  5. Cut off any surplus boundary wire. Cut 1-2 cm / 0.4-0.8" above the connectors.
  6. Press the connectors onto the contact pins, marked AL (left) and AR (right), on the charging station. It is important that the right-hand wire is connected to the right-hand contact pin, and the left-hand wire to the left-hand pin.
  7. Fasten the connector to the contact pin marked GUIDE on the charging station.

CONNECTING THE GUIDE WIRE TO THE BOUNDARY WIRE

CONNECTING THE GUIDE WIRE TO THE BOUNDARY WIRE
See Fig. 4

  1. Cut the boundary wire with a wire cutters at the centre of the eyelet that was made in step 2 of "PLACEMENT OF THE BOUNDARY WIRE AND THE GUIDE WIRE".
  2. Connect the guide wire to the boundary wire using the accompanying couplers. Press the couplers completely together with a polygrip.

STARTING AND STOPPING

STARTING

  1. Open the cover by pressing the STOP button.
  2. Set the main switch to position 1. When you do this for the first time, a start up sequence starts where you select a four digit PIN code among other things.
  3. Press the START button and close the cover.

STOPPING
Press the STOP button.

ADJUSTING THE DEVICE TO SUIT THE SIZE OF YOUR LAWN

The mowing results depend on mowing time. Adjust the mowing time to suit your yard using the Timer function. You decide what times during the day the robotic lawn mower is to work. The robotic lawn mower mows about 43 m² / 463 ft² per hour and day. For example; if your yard consists of 300 m² / 3230 ft² of grass, the robotic lawn mower should work on average 7 hours per day.

MAINTENANCE

  1. The main switch should be in the0 position during all work on the robotic lawn mower's chassis, such as cleaning or replacing the blades. Replace the blades regularly for the best mowing result.
  2. Never use a high-pressure washer or even running water to clean the robotic lawn mower. Never use solvents for cleaning.
  3. All connections to the charging station (power supply, boundary and guide wire) must be disconnected if there is a risk of a thunderstorm.
  4. Fully charge the battery at the end of the season before winter storage.

CHARGING STATION LED INDICATION

Green solid light
Good boundary loop signal.
Green flashing light
ECO mode is activated.
Blue flashing light
Malfunction in the boundary loop.
Red flashing light
Malfunction in the charging station's antenna.
Red solid light
Fault in the circuit board or incorrect power supply in the charging station. The fault should be rectified by an authorized service technician
Yellow flashing light
Guide wire not connected or malfunction in the guide wire.

WHAT IS WHAT

What is what

  1. Main switch
  2. STOP button
  3. Charging plates
  4. LED for function check of the boundary and guide wires
  5. Cutting height indication
  6. Display
  7. Keypad
  8. Charging station
  9. Power supply**
  10. Low voltage cable
  11. Wire for boundary and guide*
  12. Couplers*
  13. Pegs*
  14. Connectors*
  15. Measurement gauge
  16. Screws for securing the charging station

* Included in Installation kit, not included in the purchase of the robotic lawn mower.
** The appearance of the power supply may differ depending on market.
