Item # 1004 892 494
Model # FRS60698H-STBAC

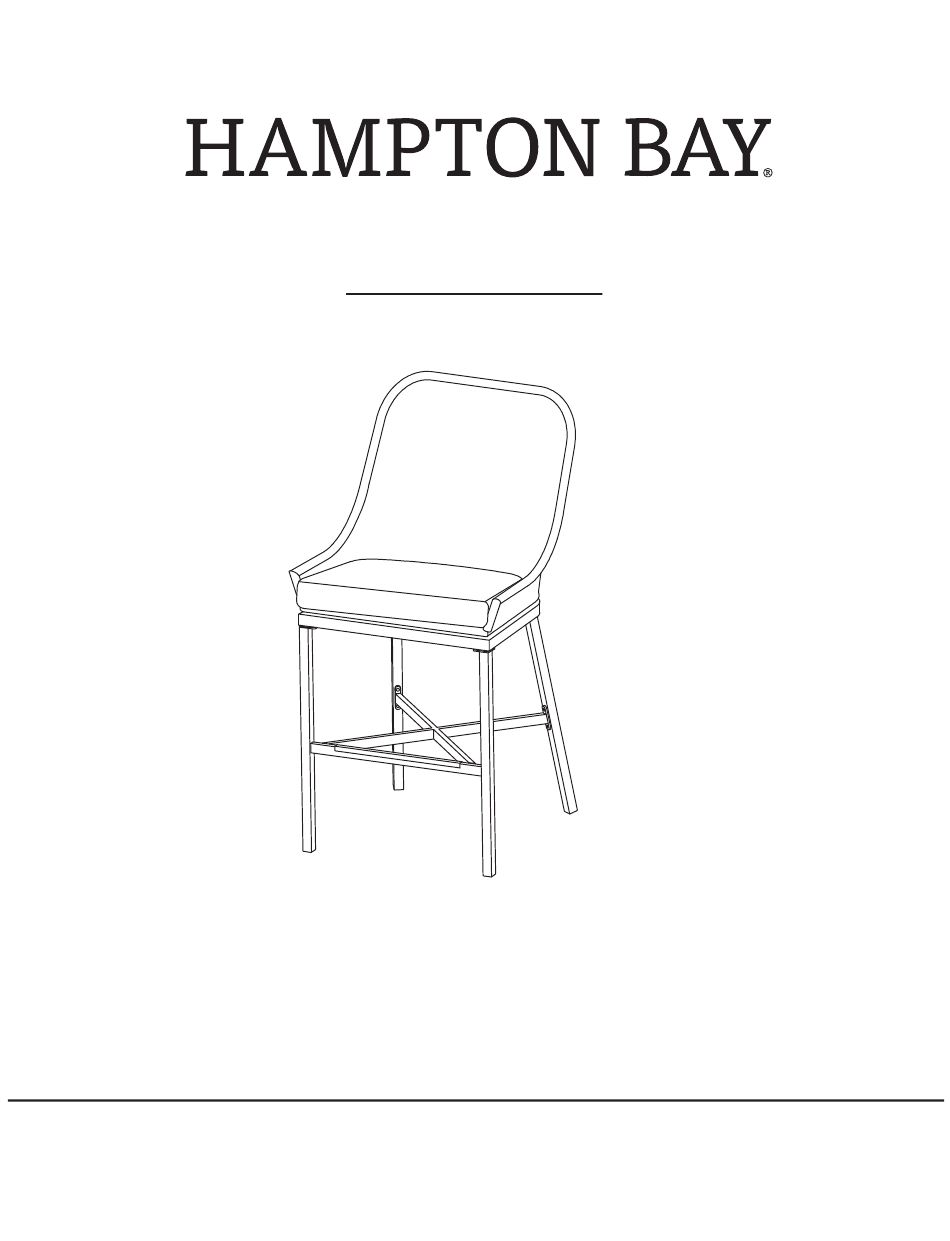

USE AND CARE GUIDE

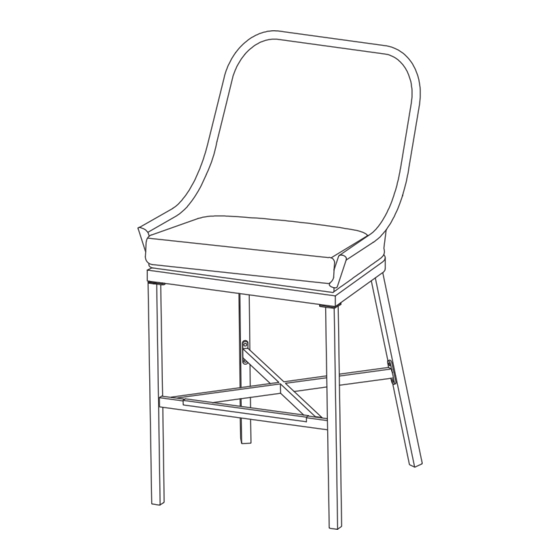

BEACON PARK 4PK HIGH DINING CHAIR - BARE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Chapters
Table of Contents
Related Manuals for HAMPTON BAY BEACON PARK FRS60698H-STBAC
Summary of Contents for HAMPTON BAY BEACON PARK FRS60698H-STBAC
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................ -
Page 3: Warranty
Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Chair bucket Front chair leg Leg connector Rear chair leg Seat cushion... -
Page 5: Assembly
Assembly ATTACHING THE FRONT CHAIR LEGS TO THE CHAIR BUCKET Place the chair bucket (A) upside down on a soft surface. Attach the front chair legs (B) to the chair bucket (A) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (BB). - Page 6 Assembly (continued) ATTACHING THE REAR CHAIR LEGS TO THE CHAIR BUCKET Attach the rear chair legs (D) to the chair bucket (A) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (BB).
- Page 7 Assembly (continued) ATTACHING THE LEG CONNECTOR TO THE CHAIR LEGS Attach the leg connector (C) to the chair legs (B & D) using M6x15 combination bolts (AA). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench ( ). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON...
-
Page 8: Care And Cleaning
Assembly (continued) CHECKING THE CHAIR Once all of the bolts are in place, fully tighten the bolts using the hex wrench (BB). Turn the chair right side up. Place the seat cushion (E) to finish the assembly of the chair. Ensure all connections are secure before use. - Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chair ID # FRS60698H...
- Page 10 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 11: Important Safety Instructions
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Important Safety Instructions ........2 Planning Assembly ..............3 Save These Instructions ............2 Hardware Included ..............3 Read All Instructions Before Use ..........2 Package Contents ..............4 Warranty ................ -
Page 12: Warranty
Warranty 3 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. -
Page 13: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Table leg Leg connection Umbrella cap... -
Page 14: Assembly
Assembly CONNECTING THE TABLE LEGS TO THE TABLE TOP Place the table top (A) upside down on a soft surface. Attach the table legs (B) to the table top (A) using M8x50 combination bolts (BB). Do not fully tighten all the bolts at this step. ATTACHING THE LEG CONNECTOR TO THE TABLE LEGS Attach the leg connector (C) to the table legs (B) using M6x15 combination bolts (AA). -
Page 15: Care And Cleaning
Assembly (continued) CHECKING THE TABLE Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC) and the wrench (DD). Turn the table right side up. Place the umbrella cap (D) to the table top (A) Ensure all connections are secure. - Page 16 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory table ID # FTS61204H...
