Legacy 2800-4104 Assembly Instructions

2800-4104-PANEL HEADBOARD FULL 46
2800-4114-PANEL FOOTBOARD FULL 46
2800-4900-RAILS TWIN 33 FULL 46
Thank you for purchasing this quality product. Before beginning, please check the packing material carefully for
small parts which may have come loose inside the carton during shipping. Please do not discard any packing material
until all parts have been located. If any parts are missing, please contact your dealer for prompt replacement.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the assistance of one
or more persons in order to prevent personal injury and to insure parts are not damaged during the assembly process.
If dirty, clean finished parts with mild dishwashing liquid and water solution applied on damp cloth. Cloth should not
be excessively wet. Polish finish with soft cloth and an industry recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain
residue and rough surfaces and also check for staples or nails left after removing the packaging material. The
manufacturer will not be held responsible if preventative steps are not taken prior to installation.
(3) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up. They should be
periodically inspected and re-tightened to prevent damage to the furniture and (or) personal property or cause injury.
Always check to be sure all hardware on this list and the below mentioned components are attached to the furniture
properly and kept tightened.
Parts & Hardware List:
PARTS LIST
A
HEADBOARD
RIGHT
B
POST
LEFT
C
POST
Step 2
A
B
Assembly Procedures :

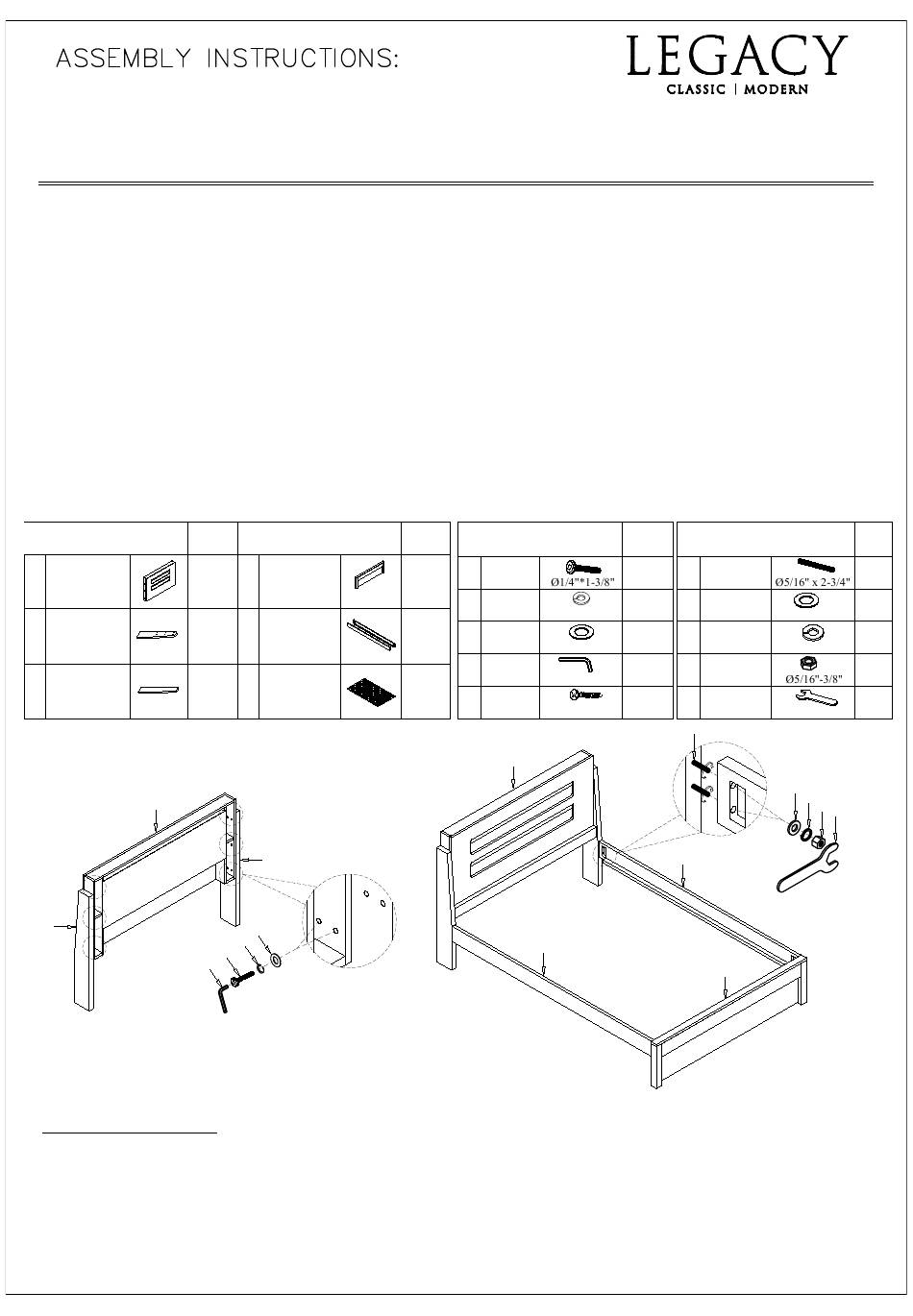

Step 1: Lay out all parts and hardware on a clean protective surface to protect the furniture and floor during assembly.
Make sure the quantity of each is correct and the feet are free of stain, staples, screws and nails.
Step 2: Assemble the right post (B) and left post (C) to headboard (A) using hardware (1,2,3,4) as shown.
Step 3: Assemble the bed rails (E) to the headboard (A) and footboard (D) using hardware (7,8,9,10) as shown.
QTY PARTS LIST
D FOOTBOARD
1pc
1pc
E RAIL
1pc SLAT
F
C
3
2
1
4
QTY
HARDWARE LIST
1
BOLT
1pc
LOCK
2
WASHER
FLAT
2pcs
3
WASHER
4
ALLEN
1Set
WOOD
5
SCREW
A
E
www.legacyclassic.com
QTY HARDWARE LIST
12pcs
6 LONG BOLT
FLAT
12pcs
7
1 / 4 "*2/5 " WASHER
LOCK
12pcs 8
WASHER
1 / 4 "*3/4''
9
NUT
1pc
1/6''*2-1/3
OPEN
10pcs 10
WRENCH
#8*1-3/16"
6
E
D
QTY
8pcs
8pcs
5/16"*3/4
8pcs
5/16"*1/2
8pcs
1pc
1/2''
Step 3
8
9 10
Page 1/2
