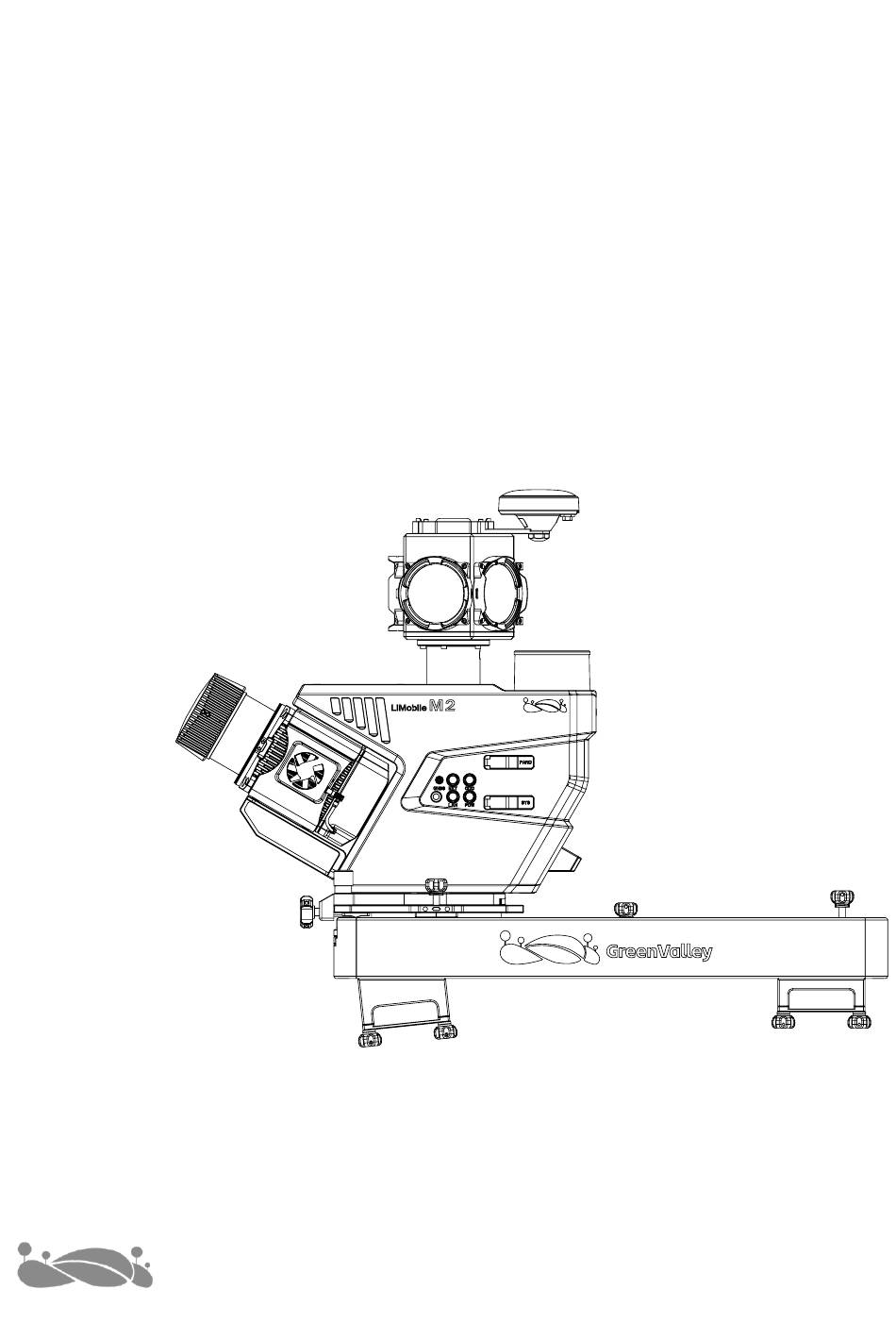

- Page 1 LiMobile M2 Ultra Mobile Laser Scanning System Quick Start Manual...
-
Page 3: Table Of Contents
Contents Device List 1 Sensor Unit Case 2 Battery Accessory Case 3 Roof Rack Case 4 DMI Case (Optional) 5 Planar Camera Case (Optional) Device Description Device Installation 1 Sensor Unit Installation Step 1: Roof Rack and Luggage Rack Crossbar Installation Step 2: Support Structure Component Installation Step 3: Sensor Unit Installation Step 4: Rotation of the Sensor Unit (Optional) -
Page 4: Safety Tips
Product Overview The LiMobile M2 Ultra mobile laser scanning system, developed by GreenValley International (GVI), is a high-precision survey-grade mobile measurement system. The system integrates a long-range, high-precision LiDAR, GNSS/INS integrated navigation system, multi-channel SLAM LiDAR, and a high-resolution panoramic camera. -
Page 5: Device List
Device List 1 Sensor Unit Case ① ⑭ ② ③ ④ ⑬ ⑤ ⑫ ⑥ ⑪ ⑩ ⑦ ⑧ ⑨ Items Quantity Tablet Tablet Charger Type-C to Ethernet Adapter RJ45 Ethernet Cable LEMO Ethernet Cable External Power Cable SLAM LiDAR Protector Cover CFE Card Reader Cleaning Set Hook and Loop Fastener... -
Page 6: Battery Accessory Case
2 Battery Accessory Case ④ Items Quantity ① ② ③ Wi-Fi Antenna Battery Box Tool Kit Battery Charger 3 Roof Rack Case ④ ① Items Quantity Support Structure Component ② ③ Dust Removal Tool Kit Roof Rack Roof Rack Knob Screw ©2025 Map The World In 3D... -
Page 7: Dmi Case (Optional)
4 DMI Case (Optional) Items Quantity Socket Gripper Universal Chuck Guide Mounting Bracket DMI Main Component ⑪ Suction Cup ① ⑩ ⑨ Adjustable Wrench ② ⑧ DMI Storage Bag ③ DMI Protection Rope Socket Fixing Screw ⑦ ④ ⑤ ⑥ Suction Cup Fixing Screw Chuck Fixing Screw 5 Planar Camera Case (Optional) -
Page 8: Device Description
Device Description ©2025 Map The World In 3D... - Page 9 Items LiDAR EXT: Extended Debugging Port ODO: DMI Sensor Port GNSS: Backup Antenna Port Device Power Indicator LAN: Ethernet Port POW: Power Cable Port Swivel Plate Pavement Camera Support Structure Component Antenna Panoramic Camera SLAM LiDAR System Disk Interface Panoramic Camera Disk Interface Front Camera Roof Rack CAM1: Front Camera Port...
-
Page 10: Device Installation
Device Installation 1 Sensor Unit Installation Step 1: Roof Rack and Luggage Rack Crossbar Installation (1) Manually tighten the fixing screws to secure the luggage rack crossbar to the roofrack . (2) Place both on the roof and use a hex key to tighten the four fixing clamps on the luggage rack crossbar. -
Page 11: Step 2: Support Structure Component Installation
Step 2: Support Structure Component Installation (1) Align the support structure with the holes (2) Rotate the black knob at the bottom to under the roof rack and tighten the top fixing lower the suction cup of the support structure knob. -
Page 12: Step 3: Sensor Unit Installation
(3) Press down on both safety buttons. (4) Lift the central locking block of the roof rack and tighten it clockwise. Note: 1. Shake the luggage rack crossbar, roof rack, and sensor unit firmly to ensure stability. 2. The device is calibrated before leaving the factory. Minor scratches may occur during installation and use, which is normal and will not affect performance. - Page 13 Step 5: Battery Installation Insert the batteries into the battery box in the direction shown in the figure. Note: 1. Ensure the battery is installed in the correct direction as shown in the diagram. Reverse insertion is prohibited. 2. Press down on the battery to check if it is securely installed. 3.
-
Page 14: Step 5: Battery Installation
Step 6: Wi-Fi Antenna Installation Hand-tighten the two Wi-Fi antennas on the right side of the battery box and bend them inward to avoid breakage. Step 7: Cable Connection (1) Power Cable Connection. (2) Ethernet Cable Connection. Note: Ensure the correct orientation of cable connectors to avoid damage caused by incorrect insertion. ©2025 Map The World In 3D... -
Page 15: Pavement Camera Installation (Optional)
2 Pavement Camera Installation (Optional) Insert the pavement camera cable into the pavement camera, fix the pavement camera to the roof rack, and connect the other end of the cable to the sensor unit. Note: Remove the lens cover before installation. 3 Front Camera Installation (Optional) Fix the front camera to the roof rack and connect it to the sensor unit using the front camera cable. -
Page 16: Step 2: Socket Installation
Step 2: Socket Installation (1) Push the end of the internal claw of the socket to align with the end of the outer wall of the socket. (2) Tighten the internal claw of the socket around the hub screw, use a tool to tighten the front screw of the socket until the entire socket assembly fits snugly against the hub screw. -
Page 17: Step 4: Suction Cup Installation
(2) Align the holes of the chuck with the screw holes at the top of the socket. Once aligned, use the socket fixing screws to secure them together. Step 4: Suction Cup Installation (1) Use the suction fixing screws to install the two suction cups to the guide mounting bracket in turn. -
Page 18: Step 5: Cable Connection
(4) Press firmly on the suction cup, continuously pressing down on the blue piston until the suction cup is fully attached. Note: Please remove the white cotton pad before pressing the blue piston. Step 5: Cable Connection Insert the DMI cable into the ODO port on the side of the sensor unit. ©2025 Map The World In 3D... -
Page 19: User Registration And Sign In
User Registration and Sign In (1) Connect the tablet to an available internet network. After opening the APP, the user clicks the Register Now button on the Sign In page, and the APP redirects to the Registration page. (2) After filling in the required information, click the Complete Registration button, and the APP automatically returns to the Sign In page. -
Page 20: Device Connection
Device Connection 1 Wi-Fi Connection Search for the Wi-Fi network named LiMobileM2_xxxx on the tablet. Enter the default Wi-Fi password: greenvalley. Note: "xxxx" refers to the last four digits of the device's serial number (SN). 2 Wired Connection Use an adapter and a standard RJ45 Ethernet cable to connect the tablet to the LAN port on the battery box. -
Page 21: Sensor Parameter Settings
2 Sensor Parameter Settings Navigation DMI Enable Settings: The device will record data only after it is enabled. Wheel Size: Used to calculate driving distance. Rotation Angle: Supports multi-angle installation, and can be adjusted to 0, ±15°, ±30°, ±45° in the horizontal position. Users need to choose according to the actual installation angle. -
Page 22: New Project
Note: 1. After settings are complete, click the "OK" button to make the parameters effective. 2. The "Reset" button will restore all sensor parameters to factory defaults. 3 New Project Click the "New Project" button, enter a custom project name, and then click the "OK" button. Note: 1.The name of the newly created project should not contain special characters. - Page 23 Note: 1.If the IMU alignment operation is not carried out, there will be a high risk that some data cannot be processed. 2.If users are under tight schedules and need to shorten the waiting time for the static alignment step, the manual provides other alignment criteria, that is, when the PDOP value is below 2 and the number of satellites is above 15, and this state remains stable for 30 seconds, dynamic alignment can be carried out.
-
Page 24: Start Data Recording
5 Start Data Recording Click the "Start Recording" button. Users can view the driving route of the equipment in real time on the map, and can also view the collected single-frame point cloud data and image data in real time. ©2025 Map The World In 3D... -
Page 25: Stop Data Recording
Note: 1. When users encounter situations such as the need to transfer the work area or traffic jams during data collection, they can click the "Pause Recording" button to pause data recording. 2. After the pause of data recording ends, users can click the "Start Recording" button again to obtain data. -
Page 26: Imu Alignment And Close Project
7 IMU Alignment and Close Project The IMU alignment operation is divided into two steps: dynamic alignment and static alignment. Users need to complete the operations in sequence according to the pop-up prompts. After completion, click the "OK" button to close the current project. ©2025 Map The World In 3D... -
Page 27: Device Shutdown
Device Shutdown After completing all data collection tasks, click the power button in the upper right corner to shut down the device. Note: 1. Please wait patiently for 30 seconds (the time required for the equipment system to be completely shut down). Do not perform any operations until the interface shows that the equipment connection is disconnected, and then turn off the equipment power. -
Page 28: New Mobile Project
7. The charger plug is not included in the delivery and must be prepared by the user. 8. After each data copy, check the remaining disk space and clear data as needed. Regularly format the disks by following the steps in the "LiMobile M2 Ultra User Manual". 2 New Mobile Project The Data Copy tool is integrated into the LiDAR360MLS software. -
Page 29: Data Copy And Quality Inspection
3 Data Copy and Quality Inspection Step 1 Click the "Data Copy" button in the upper left corner of the software interface, and the "Merge Data" dialog box will pop up automatically. Step 2 (1) Click the option of "Only show external drives". (2) Check the drive letter corresponding to the device disk. -
Page 30: Step 3
Step 3 After the copy is completed, the software will generate an Raw Data Quality Report and save it under the corresponding project path, and the browser will also automatically pop up the report. If the data status is abnormal, please re-collect the data in time. Note: The Data Copy function also supports completing data quality inspection without copying the data. - Page 31 ©2025 Map The World In 3D...
- Page 32 If you have any questions or suggestions about the manual, please contact us through the following methods: E-mail: info@greenvalleyintl.com Address: 729 Heinz Avenue, Suite 9, Berkeley, California 94710, USA Map The World In 3D www.greenvalleyintl.com...
