Magnetic Lock
Model: YM-180N(LED)
ESPECIFICATION
Dimension
185 L x 41.8 W x 21.4 H (mm)
Holding force
180 kg (350 Lb)
Current
12 VDC o 24 VDC
12V/400 mA ± 10% - 24V/200 mA ± 10%
Voltage
Signal output
NO/NC/COM
Green light indicates unlocked;
LED
Red light indicates locked
Operating temp
-20 / +55
Weight
1.2 Kg

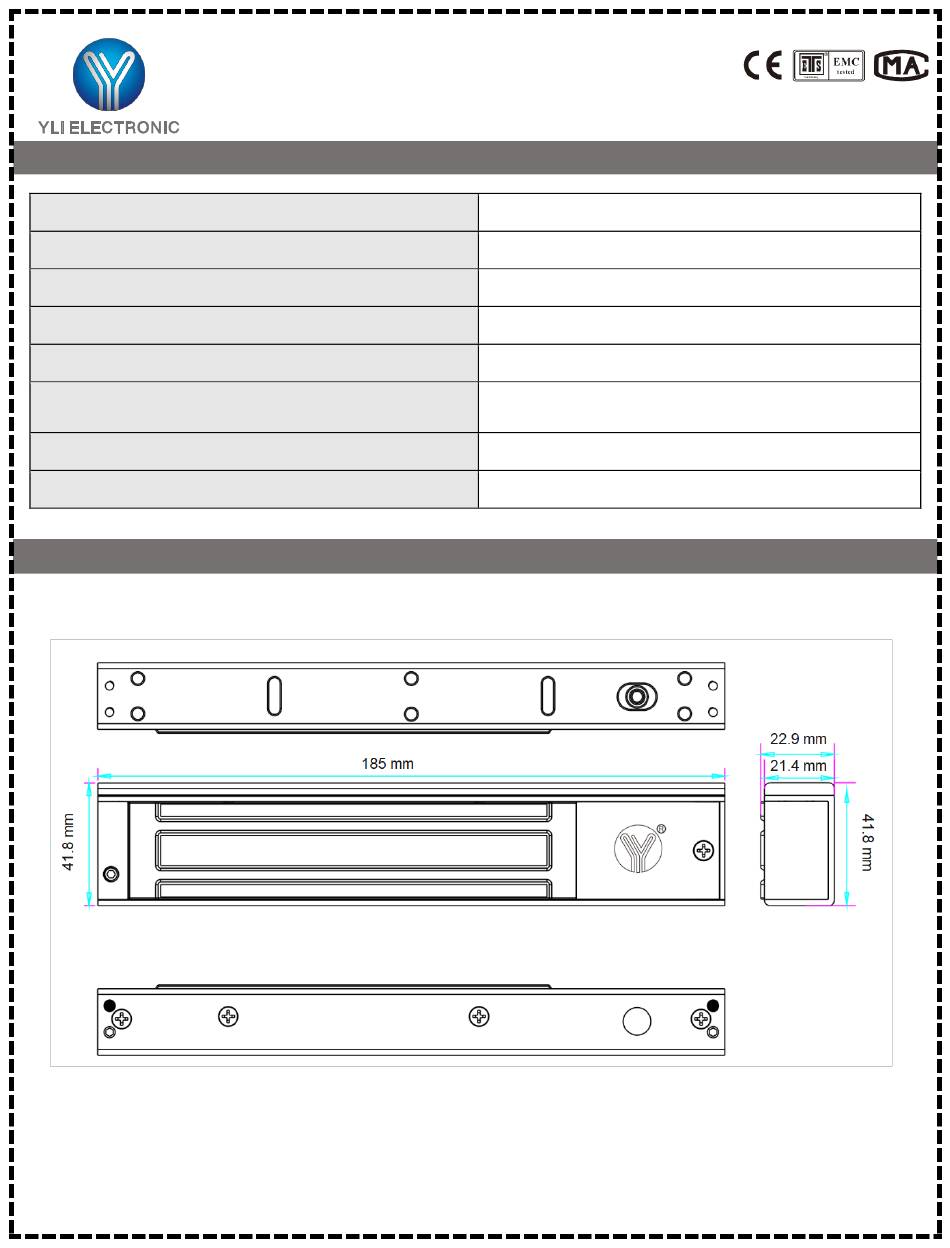

DIAGRAM (UNIT: mm)
Advertisement
Table of Contents
Related Manuals for Yli Electronic YM-180N
Summary of Contents for Yli Electronic YM-180N
- Page 1 Magnetic Lock Model: YM-180N(LED) ESPECIFICATION Dimension 185 L x 41.8 W x 21.4 H (mm) Holding force 180 kg (350 Lb) Current 12 VDC o 24 VDC 12V/400 mA ± 10% - 24V/200 mA ± 10% Voltage Signal output NO/NC/COM Green light indicates unlocked;...
-
Page 2: Installation
INSTALLATION Close the door first, then place Mark screw positions of Fold the plate to 90° the upper side of template on armature plate and magnetic door frame, while adjust the lock on door leaf and door left side next to the door leaf. frame respectively. -
Page 3: Bracket Installation
BRACKET INSTALLATION Different brackets are available according to different types of doors. For example, narrow door, frameless glass door and inward opening door. L Bracket-For outward opening door ZL Bracket-For inward opening door When the door frame thickness is less For in ware opening door, ZL bracket is needed. -
Page 4: Circuit Board Diagram
CIRCUIT BOARD DIAGRAM A. 12VDC Input: C. 12VDC Input: Connect the positive (+) lead from a 12 VCC Connect the positive (+) lead from a 24 power source to V+. VCC power source to V+. Connect the ground (-) lead from a 12 VDC power Connect the ground (-) lead from a 24 VDC source to V-. -
Page 5: Wire Connection
WIRE CONNECTION www.yli.cn We create security...
