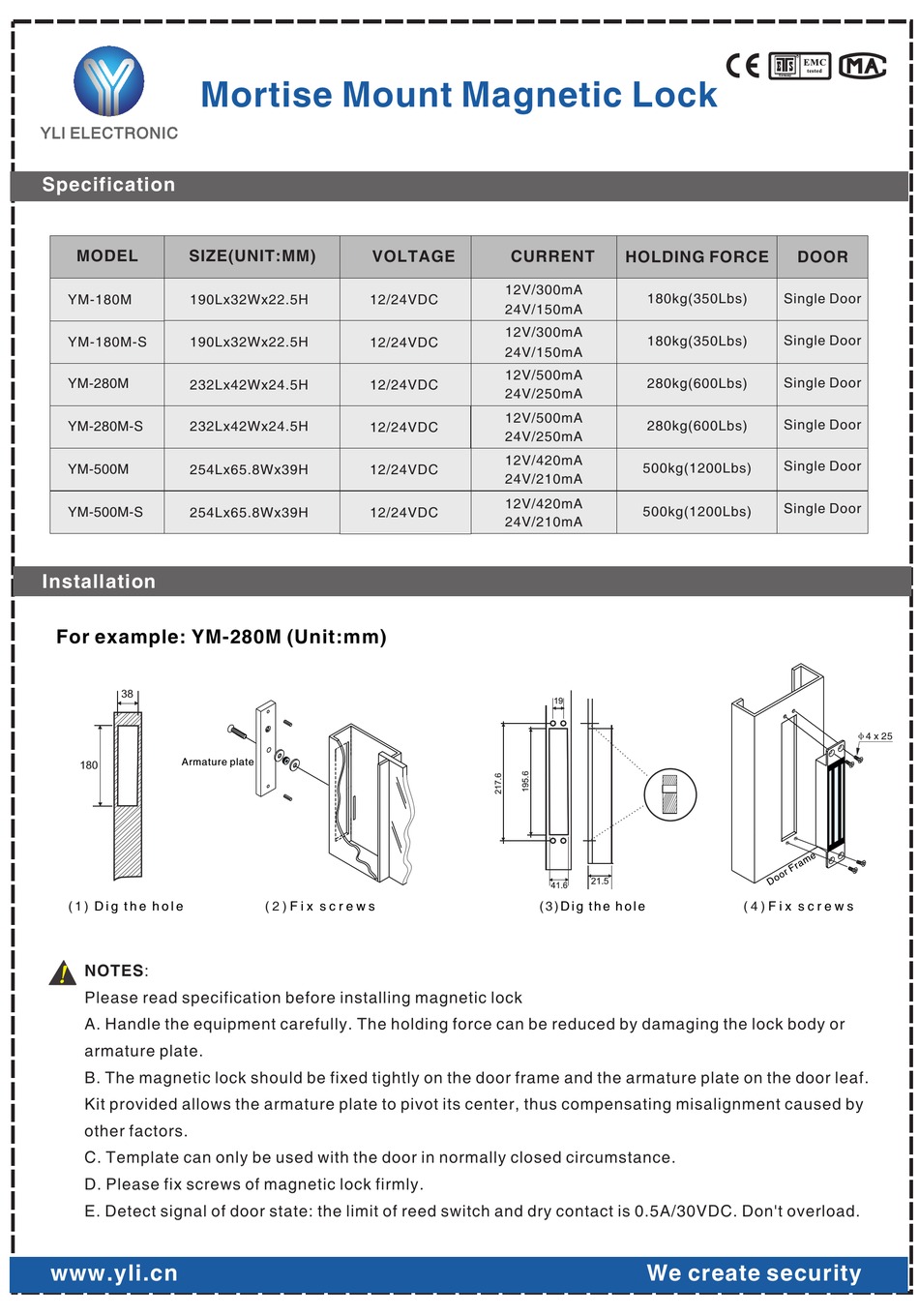

Yli Electronic YM-180M Quick Start Manual

Mortise Mount Magnetic Lock

Specification

MODEL SIZE(UNIT:MM)
YM-180M 190Lx32Wx22.5H
YM-180M-S 190Lx32Wx22.5H
YM-280M
232Lx42Wx24.5H
YM-280M-S 232Lx42Wx24.5H
YM-500M
254Lx65.8Wx39H
YM-500M-S 254Lx65.8Wx39H

Installation

For example: YM-280M (Unit:mm)
38
Armature plate
180
( 1 ) D i g t h e h o l e
! NOTES:
Please read specification before installing magnetic lock
A. Handle the equipment carefully. The holding force can be reduced by damaging the lock body or
armature plate.
B. The magnetic lock should be fixed tightly on the door frame and the armature plate on the door leaf.
Kit provided allows the armature plate to pivot its center, thus compensating misalignment caused by
other factors.
C. Template can only be used with the door in normally closed circumstance.
D. Please fix screws of magnetic lock firmly.
E. Detect signal of door state: the limit of reed switch and dry contact is 0.5A/30VDC. Don't overload.
www.yli.cn
VOLTAGE
12/24VDC
12/24VDC
12/24VDC
12/24VDC
12/24VDC
12/24VDC
( 2 ) F i x s c r e w s
CURRENT
HOLDING FORCE
12V/300mA
180kg(350Lbs)
24V/150mA
12V/300mA
180kg(350Lbs)
24V/150mA
12V/500mA
280kg(600Lbs)
24V/250mA
12V/500mA
280kg(600Lbs)
24V/250mA
12V/420mA
500kg(1200Lbs)
24V/210mA
12V/420mA
500kg(1200Lbs)
24V/210mA
19
21.5
41.6
( 3 ) D i g t h e h o l e
We create security
R
EMC
tested
Germany
DOOR
Single Door
Single Door
Single Door
Single Door
Single Door
Single Door
φ4 x 25
( 4 ) F i x s c r e w s
