Surface-mounted Electric Bolt W/Cylinder
Parameters
Lock Body
Bolt
Signal Output
Voltage
Current
Feature
Bolt strength
Installation
Waterproof level
Optional power
Suitable for
Material
Weight
Dimensions
www.yli.cn
Model: YB-900
329.5Lx41Wx46H(mm)
29.5(prolongation)*17.8(diameter)(mm)
Lock signal: NC/NO/COM
DC12V(DC24V need order
Start 5.0A; Standby 0.6A
F a i l s e c u r e
2 0 0 0 k g h o l d i n g f o r c e
3 0 4 s t a i n l e s s s t e e l
Can be installed to the left or down
IP-55
YP 904 5
Steel gates; Heavy door
3 0 4 s t a i n l e s s s t e e l
1.8kg
R
EMC
tested
Germany
We create security
Advertisement
Related Manuals for Yli Electronic YB-900
Summary of Contents for Yli Electronic YB-900

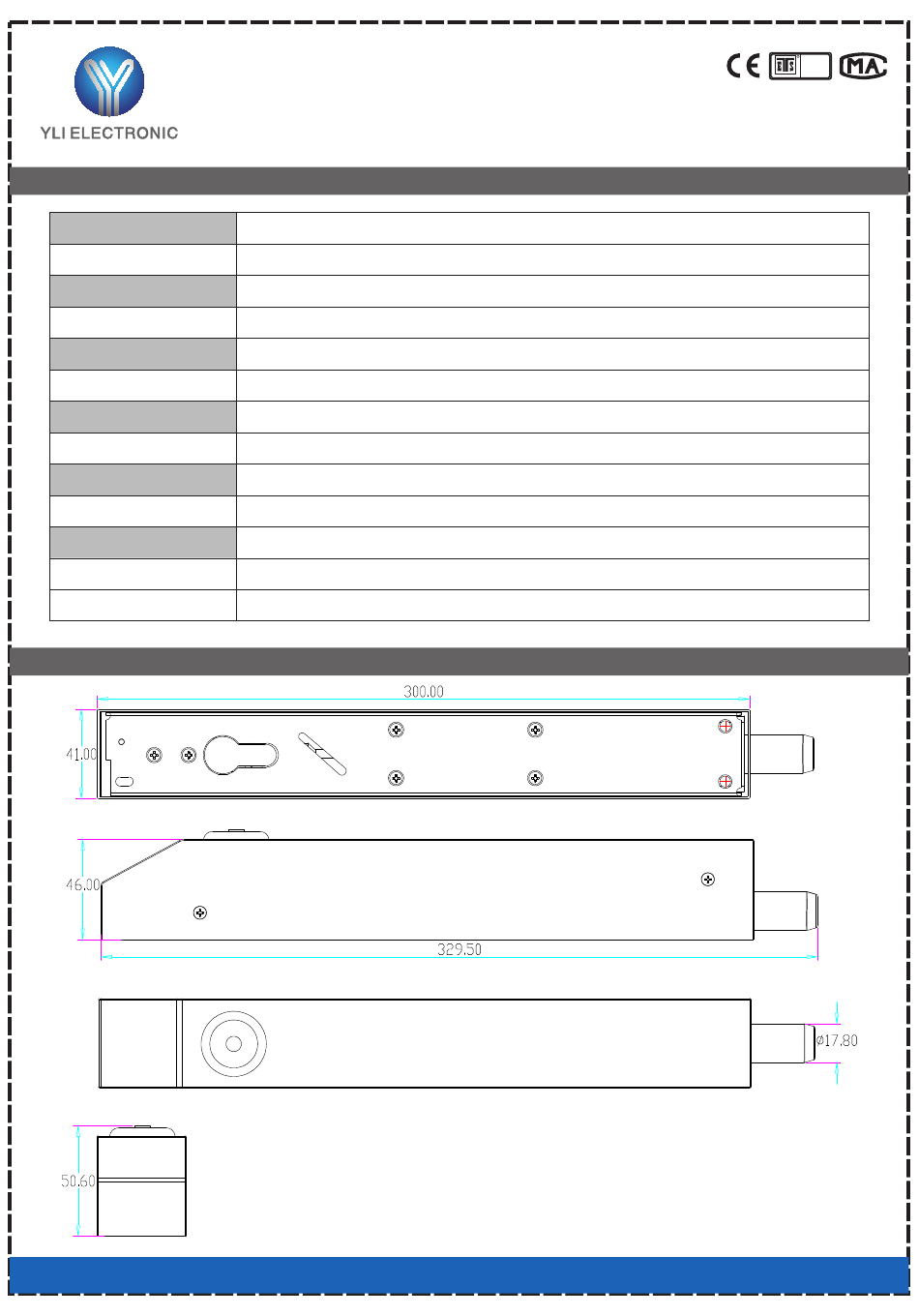

- Page 1 Surface-mounted Electric Bolt W/Cylinder tested Germany Model: YB-900 Parameters Lock Body 329.5Lx41Wx46H(mm) 29.5(prolongation)*17.8(diameter)(mm) Bolt Signal Output Lock signal: NC/NO/COM Voltage DC12V(DC24V need order Start 5.0A; Standby 0.6A Current Feature F a i l s e c u r e 2 0 0 0 k g h o l d i n g f o r c e...
- Page 2 Wiring Diagram Black Power input (NON-POLARIZED) Black Broen Lock signal output Grey Blue Installation Steps Keypad Power Supply E-Doorbell Doorbell Button contacts Alarm system HPOT LPOT 24H NC Defence Area Black Black Broen Grey Blue Door release button (install on indoor) Power input Lock state signal ouput: Able to parallelly connect with...
