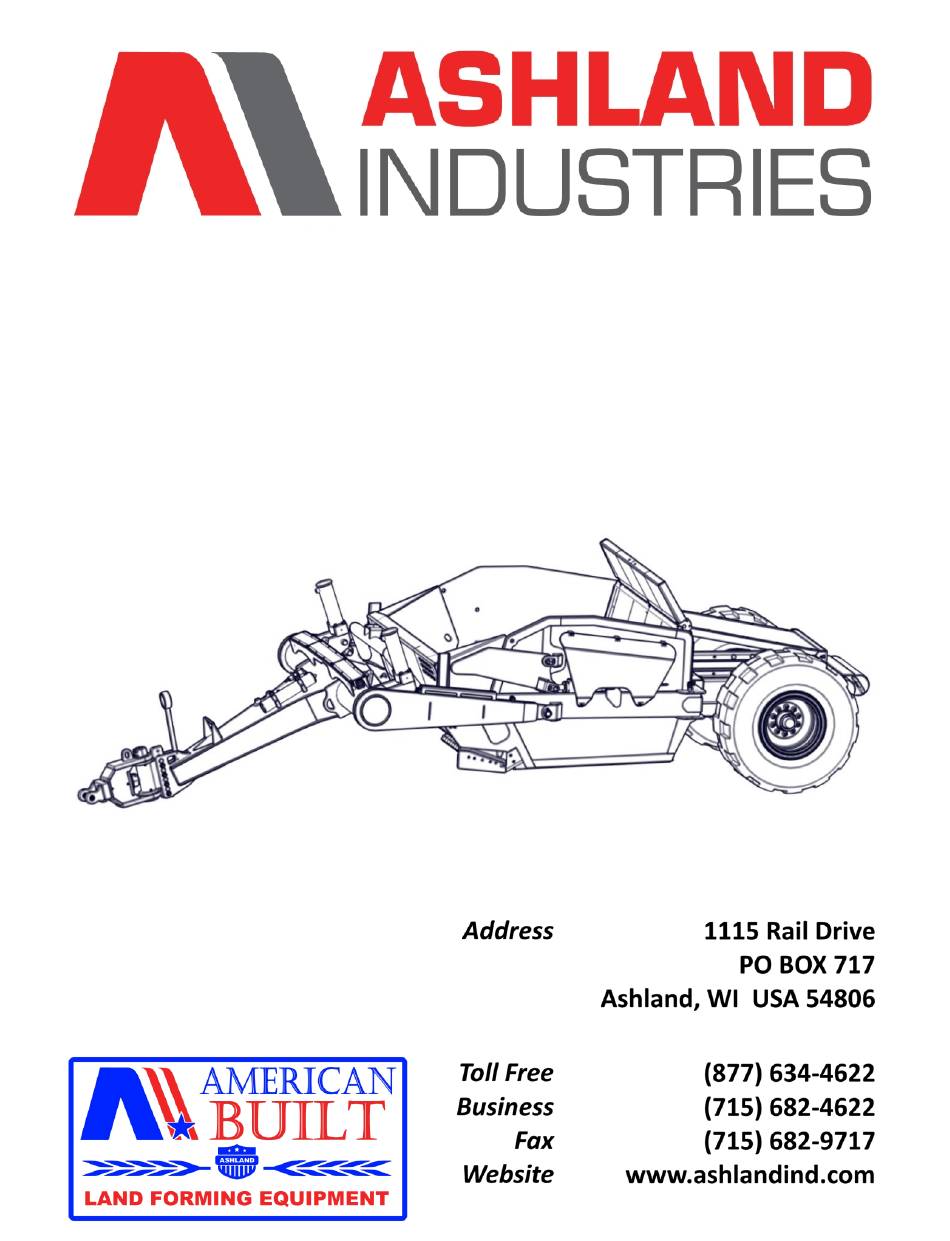

- Page 1 Parts Manual 140TS2 & -LGP WG-140T-001/-LGP-001 1-20 25101+ PH: 715-682-4622 www.ashlandind.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Scraper Specifications Assembly Ashland Hitch Bowl Rear Wheel Assembly Pushoff Apron Front Section Lift Cylinder Apron Cylinder Pushoff Cylinder Transport Locks & Hose Holder Hydraulic Relief Valve Hydraulic Tube Clamps Manifold Decals Operation & Maintenance Safety Guidelines Tire Inflation &... -
Page 3: Introduction
Parts section drop-down. If you have questions, please feel free to call or email us. You can visit us on-line at www.ashlandind.com. Ashland Industries hours of operation are 8:00 a.m. to 5:00 p.m. CST. We can be reached toll free at: 877-634-4622. -
Page 4: Scraper Specifications
Scraper Specifications Capacity, Struck 11 Cubic Yards Capacity, Heaped 14 Cubic Yards Overall Dimensions: Length 332 Inches Width 110 Inches Height 84 Inches Apron Clearance 49 Inches Weight: Empty 14,400 Pounds (-LGP) 15,173 Pounds Cutting Width 97-1/2 Inches Depth of Cut 8 Inches Depth of Spread 0 –... -
Page 5: Assembly
Assembly Item Part Number Description 701021 Bowl: Standard Configuration 1 701022 Bowl: Low Ground Pressure (-LGP) Configuration 702024 Pushoff: Standard Configuration 2 702025 Pushoff: Low Ground Pressure (-LGP) Configuration 703011 Apron 704013 Front Section PH: 715-682-4622 www.ashlandind.com... -
Page 6: Ashland Hitch
Ashland Hitch - 601689 Item Part Number Description 601689 Hitch Ass’y.: Includes Items 3 – 17 CNH 84268964 Pin Ass’y.: 1-1/2” Diameter w/ Nut & Cotter Pin 601685 Housing: Main w/ Bushings (2pc Item 6 Installed) 601684 Bracket: Vertical w/ Bushings (2pc Item 6 Installed) - Page 7 HD Ag. Cat. 4 Swivel Hitch - 601440 Item Part Number Description HD Ag. Hitch 601440 Hitch Ass’y.: Includes Items 1 – 10 Only 601438 Yoke Ass’y.: Yoke w/ Bushing, Includes Item 2 400614 Bushing: 2” x 3-1/2” w/ Grease Hole 601441 Pin: Hex 2-1/2”...
-
Page 8: Bowl
Bowl Item Part Number Description A123331 Blade: Center 1" x 13" x 54" Straight (12 Bolts Required) 2 - Optional A123331-SER Blade: Center 1" x 13" x 54" Serrated (12 Bolts Required) A123332L Blade: Corner 7/8" x 8" Formed Left (6 Bolts Required) A123332R Blade: Corner 7/8"... - Page 9 Bowl Item Part Number Description A9024 Pin: 1-1/4 x 4-3/4" AFP-00010 Pin: 1/4" x 2" Cotter A125022 Grease Line: 18" Ass'y. 600993 Pin: 1-1/2" x 4-5/8" w/ Tab Head A123351 Bushing: Pin Keeper w/ Flange AFB-00015 HHCS: 1/2"-13 x 1-1/2" A123363 Pin: 1-1/2"...
-
Page 10: Rear Wheel Assembly
Rear Wheel Assembly Item Part Number Description A14037E Spindle Ass’y: Extended 4-1/4” Diameter AFB-00017 HHCS: 1”-14 x 6-1/2” AFN-00001 Nut: 1”-14 Top Lock A14011 Seal: Grease A14012 Bearing: Cone Inner A14013 Bearing: Cup Inner 400257 Stud: Wheel 3/4"-16 x 2-3/4" A14010A Hub: 10-Hole A14014... -
Page 11: Pushoff
Pushoff Item Part Number Description 502049 Roller: Flanged Hold Down A14039 Bushing: 2" ID x 2-3/8" OD Bronze 501598 Spacer: 2" ID A123323-23 Pin: 2" x 7-7/8" w/ Tab Head AFB-00079 HHCS: 5/8"-11 x 1-1/2" A123358 Bushing: Pin Keeper w/ Flange A10164 Roller: 4-1/4"... - Page 12 Pushoff Guards Item Part Number Description 600947 Spill Plate Ass'y: Tiltable AFB-00005 HHCS: 3/4"-10 x 2-1/2" AFW-00002 Washer: 3/4" Split Lock AFN-00006 Nut: 3/4"-10 502711 Guard: Dirt Shield, 40” wide 6 502709 Guard: Dirt Shield for -LGP, 25” wide 123165-03 Brace: Dirt Shield Mount, LH &...
-
Page 13: Apron
Apron Item Part Number Description A123362 Pin: 1-1/2" x 4-1/2" w/ Tab Head A123351 Bushing: Pin Keeper w/ Flange AFB-00015 HHCS: 1/2"-13 x 1-1/2" A123343 Bushing: Spring 1-1/2" x 2" w/ Grease Hole 600993 Pin: 1-1/2" x 4-5/8" w/ Tab Head PH: 715-682-4622 www.ashlandind.com... -
Page 14: Front Section
Front Section Item Part Number Description 502963 Guard: Center 502962 Guard: Left & Right A14039 Bushing: 2" ID x 2-3/8" OD Bronze A10152A Pin: 2" x 8-1/8" AFB-00054 HHCS: 1/2"-13 x 3-1/2" AFN-00011 Nut: 1/2"-13 502143 Block: Trunnion Mount AFB-00039 HHCS: 3/4"-10 x 5-1/2"... -
Page 15: Lift Cylinder
Lift Cylinder – 400354 Item Part Number Description 202013P Barrel: for 5” x 20” Cylinder 301664P Rod: 2-1/2” 411032P Piston: Ass’y 5” x 1-3/4” 511288P Head: Ass’y 5” x 2-1/2” Seal Kit Kit: Seal for 400354 PH: 715-682-4622 www.ashlandind.com... - Page 16 Lift Cylinder Pins Item Part Number Description A123335 Pin: 2" x 6-1/4" w/ Tab Head AFP-00001 Pin: 1/4" x 3" Cotter 502143 Block: Trunnion Mount AFB-00039 HHCS: 3/4"-10 x 5-1/2" AFW-00002 Washer: 3/4" Split Lock 400354 Cylinder: 5” x 20” x 2-1/2” PH: 715-682-4622 www.ashlandind.com...
-
Page 17: Apron Cylinder
Apron Cylinder – A125050 Item Part Number Description A125050 Cylinder: 4" x 13" A123363 Pin: 1-1/2" x 4-1/8" w/ Square Head A123362 Pin: 1-1/2" x 4-1/2" w/ Tab Head AFW-00016 Washer: 1-1/2" A123351 Bushing: Pin Keeper w/ Flange AFB-00015 HHCS: 1/2"-13 x 1-1/2" A125050-06 Barrel: Cylinder Ass'y A125050-04... -
Page 18: Pushoff Cylinder
Pushoff Cylinder – 400321 Item Part Number Description 202004P Barrel: for 4-1/2” x 54” Cylinder 311818P Rod: 2-1/2” 411159P Piston: Ass’y 4-1/2” x 1-1/2” 511281P Head: Ass’y 4-1/2” x 2-1/2” 720032P Bushing: 1-1/4” ID Spherical Seal Kit 432228P Kit: Seal PH: 715-682-4622 www.ashlandind.com... - Page 19 Pushoff Cylinder Pins Item Part Number Description A9024 Pin: 1-1/4” x 4-3/4” AFP-00010 Pin: 1/4” x 2” Cotter A14033 Pin: 1-1/4” x 5-1/2” PH: 715-682-4622 www.ashlandind.com...
-
Page 20: Transport Locks & Hose Holder
Transport Locks & Hose Holder Item Part Number Description 600119C Holder: Hose Keeper AFB-00033 HHCS: 1/2"-13 x 2-1/2" 502382 Lock: Transport 600121 Lock: Apron Pin PH: 715-682-4622 www.ashlandind.com... -
Page 21: Hydraulic Relief Valve
Hydraulic Relief Valve Item Part Number Description AHV-00001 Valve: Pressure Relief PH: 715-682-4622 www.ashlandind.com... -
Page 22: Hydraulic Tube Clamps
Hydraulic Tube Clamps Each Tube Clamp is sold as a complete assembly. PH: 715-682-4622 www.ashlandind.com... -
Page 23: Manifold
Manifold: A125174 (950XL2 – 175XL2) Setting the Apron and Pushoff Valve The manifold block containing the Pushoff sequence valve cartridge and Apron counterbalance valve cartridge is used to control two hydraulic circuits with one hydraulic remote. When the tractor hydraulic remote is activated, oil flows first to the Apron cylinders until they are fully extended. Once the cylinders are fully extended, the Apron circuits’... -
Page 24: Decals
Decals Safety Decals Model Decals 750464 Decal: High Pressure ADS-00062 Decal: 36 x 7” ADS-00011 Decal: Pinch Point ADS-00064 Decal: 5.5 x 3.5” ADS-00019 Decal: Grease Daily ADS-00065 Decal: 11.5 x 7” ADS-00030 Decal: Turning ADS-00066 Decal: Gauge ADS-00067 + ADS-00041 Decal: Controls Decal: Badge... -
Page 25: Operation & Maintenance
Operation & Maintenance Your Ashland scraper is a durable piece of equipment and with proper care will yield many years of trouble-free operation. However, the life of your scraper can be severely shortened by poor maintenance. You must follow consistent maintenance practices and use superior quality grease and hydraulic oil (compatible with the power unit’s hydraulic system) to... - Page 26 Operation & Maintenance Scraper damage can occur if: 1. The scraper is running over the haul road with the bowl fully raised. On scrapers that have factory installed nitrogen over hydraulic accumulators, the lift cylinders should be lowered 3 to 4 inches to allow the cushioned ride to work properly. 2.
- Page 27 Operation & Maintenance Transport the scraper safely: 1. Always empty the scraper. 2. Clean all material from the exterior of the scraper. 3. Make sure all road rules are followed. 4. Use proper lighting and flagging. 5. Lower scraper bowl to provide just enough clearance over obstacles. 6.
-
Page 28: Safety Guidelines
Safety Guidelines Safety Signal Words: Please note the use of signal words such as DANGER, WARNING, and CAUTION paired with the safety messages on your scraper. The appropriate signal word for each safety message has been selected using the following guidelines: •... -
Page 29: Tire Inflation & Torque Chart
@ 6mph Rear Tire Size @ 6mph 3250SS 11L-15 12Ply 50CS 16.5L-16.1 10Ply 950XL2 16.5L-16.1 10Ply 16.9-24 8Ply 140XL2 445/50R22.5 18.4-26 18ply 140TS2 20.5-25 16ply 140XL2-LGP 445/50R22.5 23.5-25 20Ply 140TS2-LGP 23.5-25 20Ply 155XL2 20.5-25 16Ply 29.5-25 28Ply 155TS2 29.5-25 28Ply 175XL2 20.5-25 16Ply... -
Page 30: Tire Service
Tire Service The task of servicing tires and wheels can be extremely dangerous and should be performed by trained personnel only, using the correct tools and following best- practice. Do not attempt to mount, demount, or inflate a tire if you do not have the proper equipment and experience to perform the job. -
Page 31: Hub Service
The bearings within the hubs of the scraper are fully greased with an EP Rated ISO 220 NLGI #2 Lithium Complex blue grease at the factory. Ashland uses a special bearing grease packer to ensure the bearing is effectively and evenly lubricated. Generous amounts of additional grease are added on both sides of the bearing prior to install within the hub. -
Page 32: Troubleshooting
Troubleshooting With proper care and maintenance, your Ashland Scraper will give many years of reliable service. When a situation arises where the earthmover performance is not satisfactory, this section will give some pointers on finding and correcting the problem. Grease zerk will not take grease: Grease zerk plugged. -
Page 33: Warranty Statement
This warranty is applicable only for the normal service life expectancy of the product or components, not to exceed one year from the date of delivery of the new Ashland Industries product to the original purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first. - Page 34 • Warranty Labor Reimbursement for labor expense to the dealer is made by payment of the established hourly shop rate. • Repair times will be reviewed by Ashland Industries and may be adjusted to average repair time required by other dealers to make similar repairs. Labor is not paid on the warranty associated with repair parts purchased by the retail customer that are used on a product that is not currently in warranty time frame.
-
Page 35: Service Bulletins
30 day period. In these cases, the dealer must notify Ashland Industries in writing of the extenuating circumstance and advise that the continued use of the product will not enlarge the warranty claim. -
Page 36: Owner Registration
30 days from the date of failure to Ashland Industries, Inc. routed through the dealer and distributor from whom the purchase was made, transportation charges prepaid.
