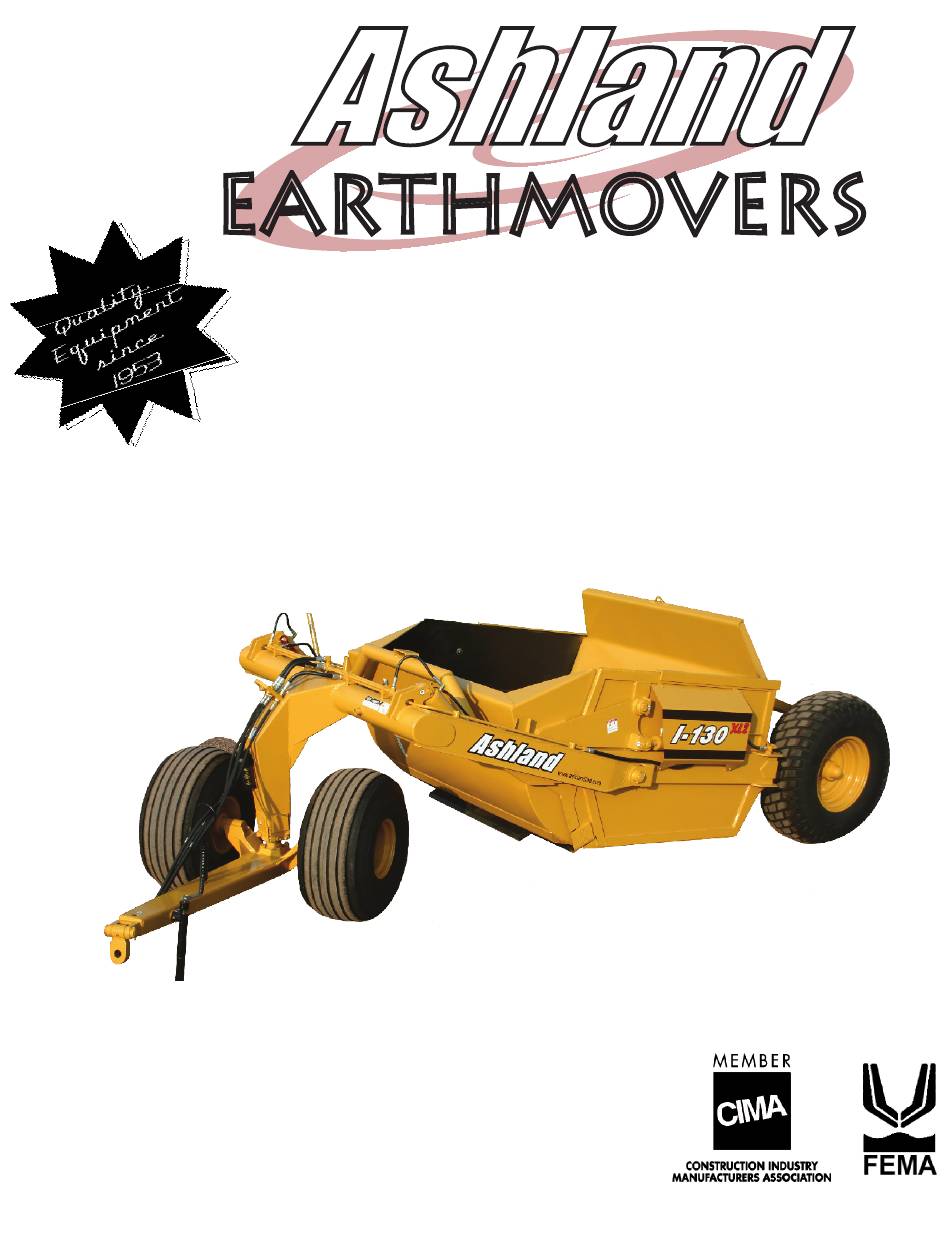

- Page 1 EARTHMOVERS I-130XL2 PARTS MANUAL ver 1008-22083S Ashland Industries Inc. 1115 Rail Drive P.O. Box 717 Ashland, WI. 54806 Ph: 877-634-4622 Toll Free Ph: 715-682-4622 Fx: 715-682-9717 www.ashlandind.com...
-
Page 2: How To Order Parts
Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER, DESCRIPTION and QUANTITY needed. Unless this is done, we cannot provide prompt service or assure shipment of the correct parts. Ashland Industries weldable replacement parts are available to rebuild, modify or update your scraper to current factory specifications. Index Page 1. - Page 3 Observe all safety signs and practice the instructions on them. Never exceed the limits of a piece of machinery. If its ability to do a job, or to do so safely, is in question - DON’T TRY IT. Page #2 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 4 After 50 hours work, all bolts should be rechecked and tightened if necessary. Check wheel bearings and adjust if necessary. After 300 hours work, clean and repack wheel bearings and replace, if necessary, cutting edges, worn pins, etc. Page #3 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 5 I-130 XL2 Assembly Illustration Page #4 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 6 "Cast socket half, front w/ zerk hole" A2206 "Grease zerk, long shank" A14039 "Bushing, 2.375 OD x 2.00 ID x 2” Long, grease Passage" OPT-00001 Hitch jack A030672-33 Dog Bone A125006 Safety Snap Pin Page #5 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 7 A123341 Apron A16027 Bushing, 2" OD X 1 1/2" ID X 2" L A123337 Pin, 1 1/2" X 5 3/8" L 7450 Nut: 3/8 NC 14505 Grease Fitting AFB-00049 Bolt, 3/8 NC X 3" Page #6 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 8 AFN-00019 Nut: 7/8” NC PB9P-NC-088-0225 Plow Bolt, 7/8" NC X 2 1/4" AFN--00026 7/8" Jam Nut A12019 Grease fitting 1/4 x 28.54 Long A125026 Bulkhead Nut A123309-89 Single Hole Tab A125022 18” Grease Line Page #7 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 9 Hold Down Roller: 4 1/4 OD X 1 3/4 ID A125050 32" Grease Line A123323-40 Double Hole Tab A125026 Bulkhead Nut A125021 54" Grease Line A125019 Grease Fitting 1/4-28.54L 8100 Lockwasher 7036 Bolt: 1/2" NC X 2" Gr. 8 Page #8 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 10 Spindle Nut A10049A Lock collar A10172 Nut w/lock pin AFW-00006 Lockwasher, 1" A123232A Yoke hitch rebuild kit: (includes block, collar, yoke, pin, nut (5,6,15,16,17) A123232-3 Swivel Yoke Assembly A123232-2 Swivel Block A123232-1 Retaining Collar Page #9 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
-
Page 11: Front Wheel & Hub Assembly
Hub cap AFB-00080 "Bolt, 5/16 NC x 1/2s lg. A13007 Wheel, 18 x 16.1 A14015 Bearing cone A14014 Bearing cup A14010A A14013 Bearing cup A14012 Bearing cone A14011 Grease seal A10176 Stud A10046 Lug nut Page #10 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717... - Page 12 A14011 Grease seal A10176 Stud A10046 Lug nut A10048 Spindle nut A10049A Lock collar A10172 Nut w/ lock pin A14037 Spindle AFN-00001 "Nut, 1” NF Top Lock" AFB-00017 "Bolt, 1” NF x 6-1/2” lg." Page #11 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 13 Snap-in Rod Wiper A123351 Flange Bushing 8602 "Pin, Cotter1/4” x 2” Zinc" A123363 Pin: 1-1/2” square head A123362 Pin 1 1/2" with Slot for Pin Keeper AFB-00015 1/2" X 1 1/2" Gr 8 Bolt Page #12 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 14 Retainer ring A400H10 "Head gland, 5” OD" A130H27 "Barrel Assembly, 5” ID" 14505 Grease fitting A400H15C Packing Kit containing: (1) A400H04, (2) A400H05, (2) A400H06, (1) A60H52, (1) A400H11, (1) A400H14, (1) A400H12, (1) A400H12A Page #13 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 15 A125176-30 Piston A125176-31 Head A125175-33 1 1/4” Nylock Nut A125176-40 Seal Kit A125175-35 Bearing A125175-36 Snap Ring A125175-37 Grease Zerk 8602 1/4" X 2" Cotter Pin A14033 Pin Rod End A9024 Pin Barrel End Page #14 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 16 Turn adjustment screw an additional 1/4 turn, tighten jam nut. DO NOT tighten adjusting screw more than necessary. Key Number Part Number Description A125162-01 Counter Balance Cartridge A125162-02 Sequence Cartridge Page #15 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
- Page 17 Pushoff Cylinder, (Base end) Apron Cylinder, Right side, (Base end) Apron Cylinder, Left side, (Rod end) Apron Cylinder, Left side (Base end) CBGB Counterbalance VAlve, adjustable SCGA Sequence Valve, adjustable Pressure test port Pressure test port Page #16 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717...
-
Page 18: Maintenance Checklist
Replace cutting edges when center blade has been worn to approximately 6” and side edges worn to approximately 4”. CAUTION! Failure to replace worn cutting edges may result in unnecessary wear to the earthmover sides and floor. Note: Please specify left or right “L” shaped cutting edges when ordering replacements. Page #17 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717... -
Page 19: Torque Specifications
5. Apron Pivot Pin – Both left & right sides. 6. Hold-down Rollers – Both left & right sides. 7. Floor Rollers – Both left & right sides. 8. Tapered Rollers – Both left & right sides. Page #18 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717... -
Page 20: Grease Locations
I-130 XL2 Grease Locations Part Number Description 110-130-Grease locations-ill Grease Twice a Day Page #19 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717... -
Page 21: Hydraulic System
The other hydraulic circuit controls the lift cylinders on the earthmover. • To adjust the sequence valve, see Troubleshooting section. Optional Three-Circuit Hydraulic Plumbing The apron cylinders, push-off cylinder, and lift cylinders are all on hydraulic circuits. Page #20 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717... - Page 22 I-130 XL2 Pushing the Earthmover PUSHING THE EARTHMOVER The I-130XL2 was designed to be pushed when equipped with the optional push-bar. However, Ashland Industries, Inc. STRONGLY recommends using extreme caution when pushing the I-130XL2 earthmover to prevent any unnecessary damage.
-
Page 23: Troubleshooting
Cylinders will not hold in preset position, i.e. the cylinder creeps. 1. Seals leaking internally. a) Remove and replace seal kit. Machine cuts unevenly. 1. Cutting edges worn unevenly. a) Replace cutting edges. 2. Improperly inflated tires. a) Check air pressure in tires. Page #22 Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717... -
Page 24: Limited Warranty Statement
The major components of swivel hitches used on Industrial series scrapers are warranted for three consecutive months from the date of delivery of the new Ashland Industries product to the purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first, except those components described below.
