H1084XT Grain Auger Operator's Manual
Read this manual before using product. Failure to follow
instructions and safety precautions can result in serious injury,
death, or property damage. Keep manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1084XT and is the answer not in the manual?

Questions and answers

Related Manuals for HARVEST H1084XT

Summary of Contents for HARVEST H1084XT

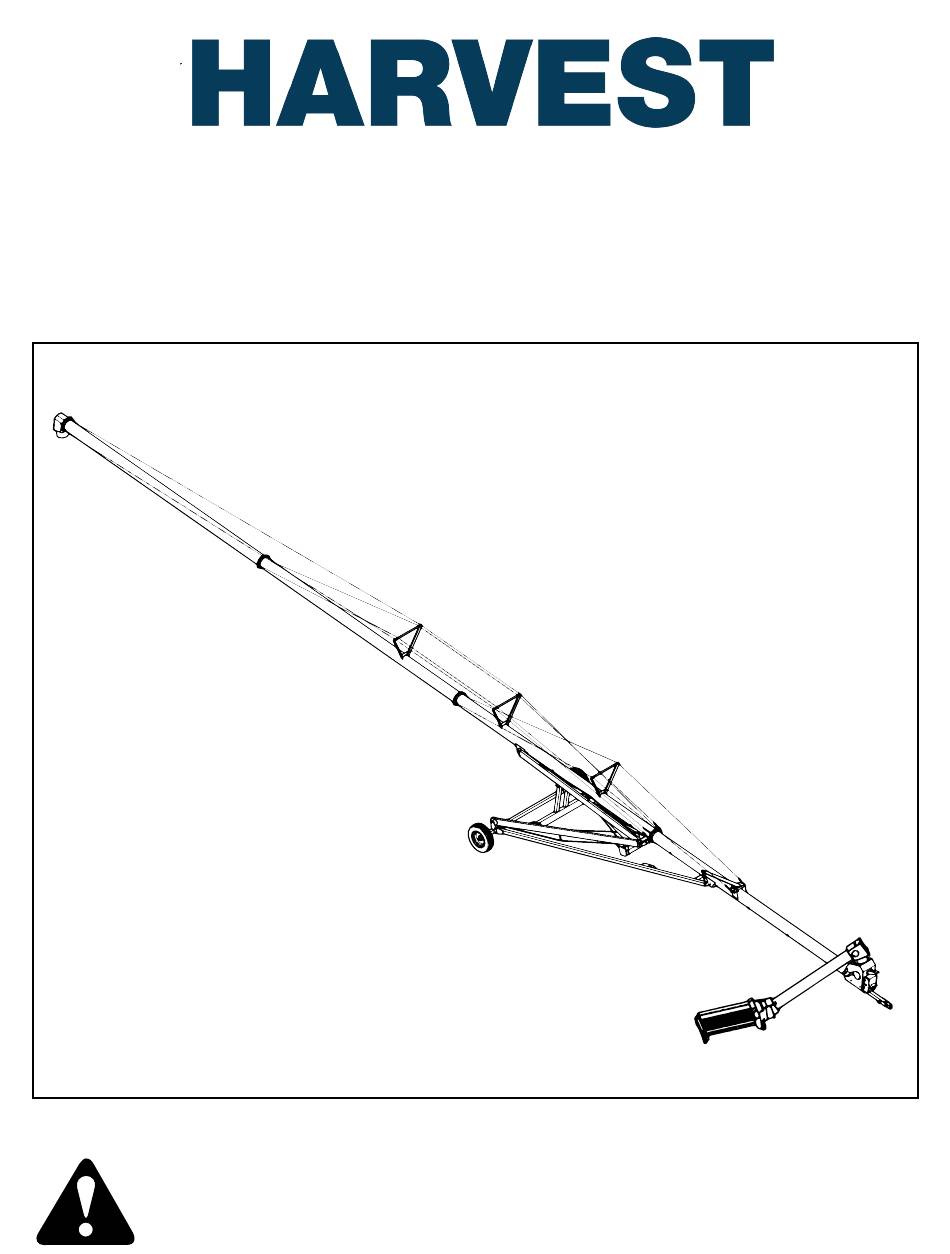

  • Page 1 H1084XT Grain Auger Operator's Manual Read this manual before using product. Failure to follow instructions and safety precautions can result in serious injury, death, or property damage. Keep manual for future reference.
  • Page 2 H10XX Augers: Important Notes At 15-20 miles, tire lug nut tightness and wheel hub temperature need to be checked. At 50-60 miles, check these a second time. For all models, the maximum transport speed is mph.
  • Page 3 Harvest thanks you for your purchase of the best quality auger on the market. We are proud to have you on our team. Our equipment is manufactured in Canada and is made to improve your farming operation. Before you operate this auger, we advise that you read this manual and familiarize yourself with each of the features.

  • Page 4: Table Of Contents

    4.6 Completion & Cleanup 4.7 Lowering the Auger 5. Hydraulics 5.1 General Information 5.2 Cylinder Hydraulics 6. Storage & Maintenance 6.1 General Maintenance 6.2 Storage of Auger 7. Appendix & Forms H10XX Lubrication Requirements H1084XT Parts Book Warranty Policy & Forms...

  • Page 5: Introduction

    Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Harvest distributor or dealer if you need assistance, information, or additional copies of the manual. Always give your dealer the serial number of your Harvest Grain Auger when ordering parts or requesting service or information.

  • Page 6: Safety First

    2. Safety First Safety is a priority in your everyday work habit, especially if you work with machinery. Whether you are an owner, an operator, or an employee, it is your responsibility to know the operational requirements and safety precautions of the machinery. Why is safety important to you? 1.

  • Page 7: Transportation & Placement

    Failure to do this could cause damage to the auger, and serious injury or death. All Harvest augers have minimum clearance positions when in transport mode. Place auger in full down position. DANGER: Electrocution Hazard! Make sure that all unauthorized personnel are clear from the transport zone.

  • Page 8: Transportation Procedure

    3.2 Transportation Procedure Move auger with a tractor only. Never attempt to move by hand. Under no condition should you allow riders on the auger or tractor. Transport the auger no faster than 15 mph. When roads are rough or surfaces are uneven, slow down to ensure safe travel.
  • Page 9 DANGER: If ground is very uneven, auger can tip and cause damage to the equipment and personal injury or death. WARNING: Never position raisers of any kind under the wheels of the auger to increase height. This includes pieces of wood, cement blocks, bricks, etc.

  • Page 10: Final Placement

    3.4 Final Placement of Auger When you are ready to use your auger, place the auger in its lowered position, and slowly back it up to your bin or storage facility, keeping an eye out for any people or obstructions in the hazard zone. DANGER: Avoid any electrical wires and overhead obstructions.

  • Page 11: Operation

    4. Operation Wear protective gear at all times when operating auger, such as hard hats, protective shoes, eye protection, and gloves. Do not wear loose clothing, and be sure that hair is tied back. 4.1 Pre-Operation Checklist Before operating the auger, the operator must follow this checklist: All safety shields are in place, secure, and in good working order.

  • Page 12: Start Up & Break In

    4.3 Start Up & Break In DANGER: Electrocution Hazard! Make sure that all unauthorized personnel are clear from the operation zone. This auger is not insulated. Be alert to overhead obstructions and electrical wires. Electrocution can occur without direct contact. Do not raise or lower auger until hazardous area is cleared.

  • Page 13: Everyday Operation

    4.4 Everyday Operation WARNING: When auger is in operation, keep your hands, clothing, and other objects away from intake hopper, drive chains, and all other parts of auger to avoid personal injury. For normal auger operations, the following procedure and safety precautions are strongly recommended: Complete the pre-operation checklist before using your auger.

  • Page 14: Completion & Cleanup

    4.6 Completion and Cleanup At completion of operation, the auger needs to be moved into storage position. Make sure that the entire work area is clean, remove all supports and wheel chocks, move auger out of working position, and fully lower the auger (see lowering procedure below). The proper steps for clean out of the auger are as follows: 1.

  • Page 15: Hydraulics

    Escaping hydraulic fluid can be nearly invisible under high pressure. Use some type of backdrop when searching for leaks. Harvest augers have a velocity fuse for hydraulic safety. If the hydraulic line breaks, it locks the system. Our shut off valve is equipped with a flow restrictive orifice.

  • Page 16: Cylinder Hydraulics

    5.2 Cylinder Hydraulics The testing done on Harvest auger hydraulics was done using a pressure gauge with 3000psi maximum rating. This was used simply as a guide. The psi requirements for an individual auger may vary slightly. Auger Size H1064XT 10” x 64’ 1300 H1074XT 10”...

  • Page 17: Maintenance And Storage

    Always replace damaged or worn parts before using the auger. Use only replacement parts manufactured by Harvest. Use of unauthorized parts will void the warranty of your auger. Contact your Harvest dealer to order parts. Harvest augers are designed and tested for a safe, efficient operation. Do not modify the equipment in any way.

  • Page 18: Storage Of Auger

    Tire Pressure: Check tire pressure monthly. The recommended tire pressure should be maintained at 40 to 45 psi. PTO Driveline: Lubricate both universal joints after every eight hours of operation. Lubricate the center portion of the driveline on a yearly basis. The first lube maintenance should be done in the first 16 to 24 hours of operation.

  • Page 24: H1084Xt Parts Book

    ITEM NO. PART NO. CLAMP, 3/8" CABLE, ZINC 10303 CLAMP, 1/4" CABLE 10957 CABLE, TRUSS, 3/8" X 43FT, SHORT, H1074XT & H1084XT 13162 CABLE, TRUSS, 3/8" X 71FT, LONG, H1084XT 13165 CABLE, WING, 1/4" X 50FT, H10XT 13166 HOPPER ASSEMBLY, H1062, H1072, H1082, A1072...
  • Page 25 AUGER MODEL(S) PART/ASSEMBLY NO. HOPPER ASSEMBLY H1062, H1072, H1082, A1072 PART REPLACED BY #30864 Detail C CHAIN PATH NOTE: A10XX SERIES AUGERS USE SWING HOPPER WELDMENT #30722, REMAINING PARTS ARE AS SHOWN Detail B NOT SHOWN: DRAWING NO. 10319-CHAIN,#50 X 58 ROLLERS + CONNECTOR LINK PBH10012...
  • Page 26 AUGER MODEL(S) PART/ASSEMBLY NO. H1062, H1072, H1082, A1072 HOPPER ASSEMBLY 10139 TAB, CHAIN GUARD LUBE HOLE COVER 40051 1/4-20UNC, HEX NYLOCK NUT, ZINC 30864 30048 KNUCKLE, BAR SHAFT & PADDLE ASSEMBLY, MID AUGER, H10XX (impeller) 30558 INSERT, 1" BRASS WITH SELF ALIGN HOUSING, & 3 BOLT FLANGETTES 30104 TIRE &...
  • Page 27 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, & H1084XT TUBE ASM, 1ST, H10XT DETAIL A DETAIL B DRAWING NO. PBXT10001...
  • Page 28 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, & H1084XT TUBE ASM, 1ST, H10XT DETAIL C DESCRIPTION ITEM NO. PART NO. 1/2" CLAMP, GALV,VINYL,HYDRAULIC HOSE RETAIN 10151 1/2" FORGED EYE-BOLT RIGHT HAND 10310 PIN, COTTER, .125"x1.5" 10426 BRACKET, HOPPER TRANSPORT ARM MNT. H13XX...
  • Page 29 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, & H1084XT TUBE ASM, 2ND, H10XT DETAIL A DETAIL B DESCRIPTION ITEM NO. PART NO. 1/2" CLAMP, GALV,VINYL,HYDRAULIC HOSE RETAIN 10151 CLAMP, 3/8" CABLE, ZINC 10303 CLAMP, 1/4" CABLE 10957 CABLE SUPPORT, SIDE, H10 13003...
  • Page 30 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT & H1084XT TUBE ASM, DISCHARGE, H1064XT & H1084XT DESCRIPTION ITEM NO. PART NO. BRACKET, CABLE TRUSS MOUNT, UPPER 10171 LINK, CHAIN CONNECTOR, 3/8" 10316 LYNCH PIN, 1/4" X 2-1/8" 10364 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC...
  • Page 31 PART/ASSEMBLY DESCRIPTION MODEL(S) H1074XT & H1084XT TUBE ASM, 3RD, H1074XT & H1084XT DETAIL B DETAIL A DESCRIPTION ITEM NO. PART NO. BRACKET, CABLE TRUSS MOUNT, UPPER 10171 LINK, CHAIN CONNECTOR, 3/8" 10316 AUGER FLIGHTING ASM, REGULAR SECTION, 10" x 240...
  • Page 32 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, H1084XT CARRIAGE ASM, H10XT DETAIL B DETAIL C DETAIL A NOTES: 1) USE P/N 30072 FOR H1064XT & H1074XT DRAWING NO. PBXT10009...
  • Page 33 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, H1084XT CARRIAGE ASM, H10XT DETAIL D P/N 30082 NOT SHOWN FOR CLARITY DETAIL E DRAWING NO. PBXT10009...
  • Page 34 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, H1084XT CARRIAGE ASM, H10XT DESCRIPTION ITEM NO. PART NO. SHAFT, MID HINGE, 1" X 17" LONG 10149 PLATE, CROSS MOUNT CARRIAGE STABILIZER 10197 PIN, UPPER CYLINDER, H10, 1-1/2 X 7-1/2" 10198 PIN, LOWER HYDRAULIC CYLINDER...
  • Page 35 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, & H1084XT INFEED HOUSING ASM, H10XT DRAWING NO. PBXT10010...
  • Page 36 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, & H1084XT INFEED HOUSING ASM, H10XT DETAIL B DRAWING NO. PBXT10010...
  • Page 37 PART/ASSEMBLY DESCRIPTION MODEL(S) DESCRIPTION ITEM NO. PART NO. BRACKET, PTO SUPPORT, H10XX 10100A BRACKET, WINCH MOUNT, BOLT ON 10131B 1/2" CLAMP, GALV,VINYL,HYDRAULIC HOSE RETAIN 10151 SPROCKET, #60, 20 TOOTH, 1-1/4" BORE 10248 SPROCKET, IDLER, #60, 11 TOOTH, 1/2" BORE 10300 KEY, 1/4 X 1"...
  • Page 38 PART/ASSEMBLY DESCRIPTION MODEL(S) H1064XT, H1074XT, & H1084XT SWING TUBE ASM, H10XT DETAIL B NOTES: 1) PARTS NOT SHOWN: 13145 - HOSE CLAMP; QTY 2 DETAIL A DRAWING NO. PBXT10011...
  • Page 39 PART/ASSEMBLY DESCRIPTION MODEL(S) DESCRIPTION ITEM NO. PART NO. DOOR, CLEAN OUT, SWING HOPPER, 10" 10056 KEY, 1/4" X 1-1/2" 10309 LYNCH PIN, 1/4" X 2-1/8" 10364 SET SCREW, 5/16-18UNC X 1-1/4" 10382 PLATE, SWING TUBE RETAIN, 10” AUGERS 11761 CHAIN, DOUBLE 50 X (18 ROLLERS) 12513 LINK, CONNECTOR, DOUBLE 50 12514...
  • Page 41 Dealer WO (Must be attached): _____________________ Parts Required for Repair: FOR OFFICE USE ONLY Harvest Part # Invoice # (if known) Parts Freight Labor Misc Total Claim Manager Approval: ___________________________________ Date Approved: _____________________________________ ***All claims subject to Harvest approval. Please review our warranty policy before submitting.
  • Page 42 2902 Expansion Blvd. Storm Lake, Iowa 50588 PHONE: 712-213-5100 TOLL FREE: 1-800-667-5904 EMAIL: info@harvestauger.com WEB: www.harvestauger.com...
  • Page 43 Postal Code: Home/Cell Phone #: E-mail: Date of Purchase: Dealer Name: Dealer Address: Model: Serial #: * Copy of original purchase invoice must be on record with Harvest or any future claims to be validated.
 Warranty policy updated Aug. 2015...
