INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
K1-4305
LEVER PRESSURE BALANCE WITH LEVER 3-WAY DIVERTER TRIM ONLY, TO SUIT
M1-4102 ROUGH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1-4305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lefroy Brooks K1-4305

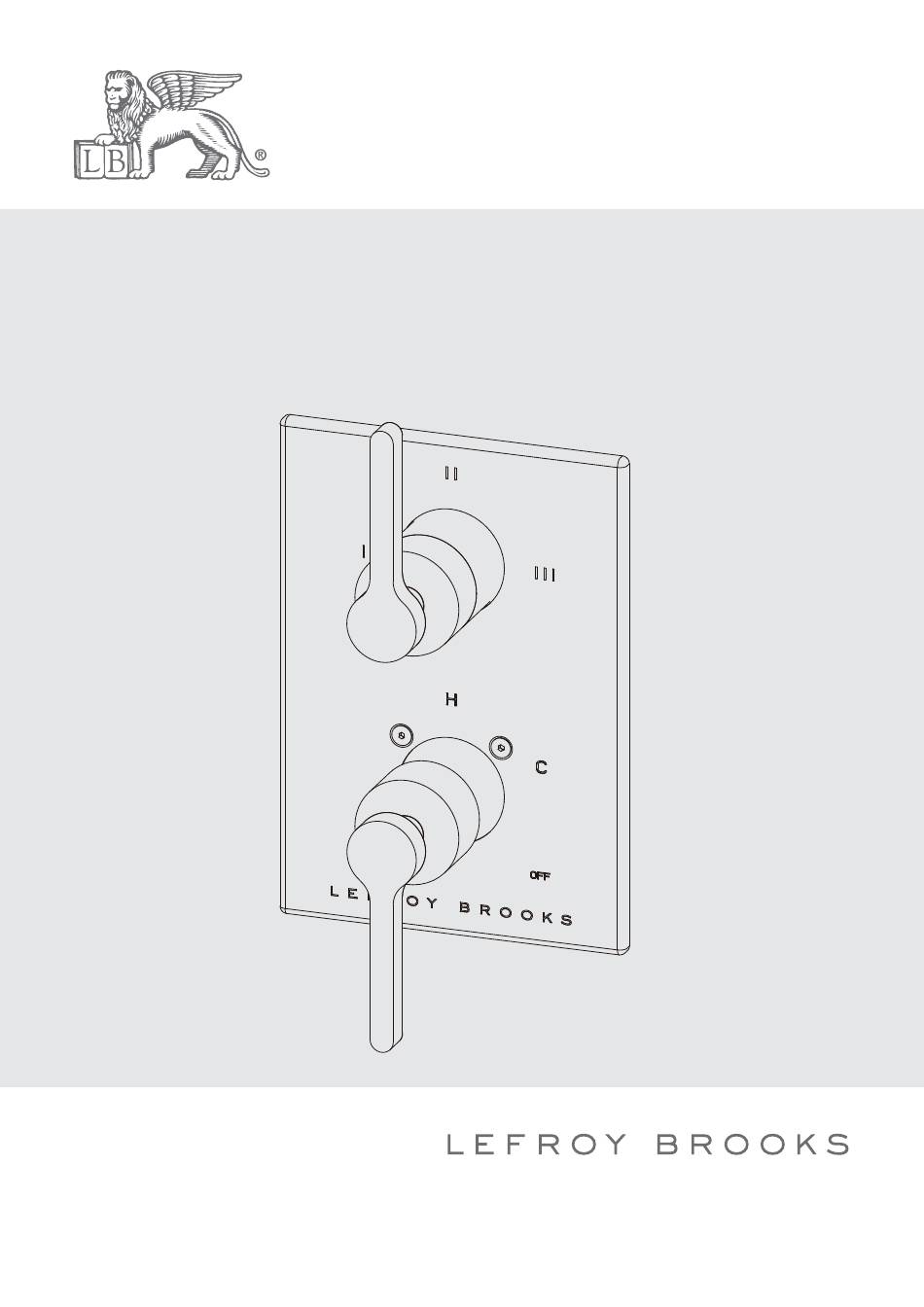

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS K1-4305 LEVER PRESSURE BALANCE WITH LEVER 3-WAY DIVERTER TRIM ONLY, TO SUIT M1-4102 ROUGH...
  • Page 2: Table Of Contents

    Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...
  • Page 3: Dimensions

    Dimensions in Inches (& Millimetres) 1 11/16" (43mm) 3/16" (5.5mm) 5 7/8" (150mm) 2 1/2"-3 1/2" (64mm~89mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 4: Installation Procedure

    Installation Procedure Steps 1-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. mixed water 78mm~103mm out #2 mixed water out #1 mixed water out #3 HOT WATER COLD WATER DO NOT REMOVE “PLUG”...
  • Page 5 Installation Procedure Steps 5-8 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Dimple on valve stem Notch Stopper A (marked #049000) Stopper A Stopper B (marked #049000) (marked #049001)
  • Page 6 Installation Procedure Steps 9-12 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install washer. Install canopy. Fix the front plate with screw. Install handle.
  • Page 7: Parts List

    Parts List Exploded view Handle (069699) Sleeve (041724) Screw (008154) Canopy (018101) Front plate (006507-53) Stem extension (110407) Stem extension (110429) Seal (068329) Canopy (018958) Clip (012242) Allen wrench (031000) Adaptor (067897) Screw (008034)
  • Page 8: Fault Finder

    Fault Finder Fault Cause Rectification Wobbling of handle. The fixing screw comes loose. Check for fixing screw and re-tighten it properly. Wobbling of canopy. The canopy comes loose. Check and tighten the canopy.
  • Page 9: Safety Tips, Care And Maintenance

    Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.
  • Page 10: Guarantee

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
