Lefroy Brooks K1-1210 Installation, Operating, & Maintenance Instructions

Cross handle monobasin (v-body) with p.u.w
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
K1-1210
CROSS HANDLE MONOBASIN (V-BODY) WITH P.U.W.

Advertisement

loading
Need help?

Need help?

Do you have a question about the K1-1210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lefroy Brooks K1-1210

Summary of Contents for Lefroy Brooks K1-1210

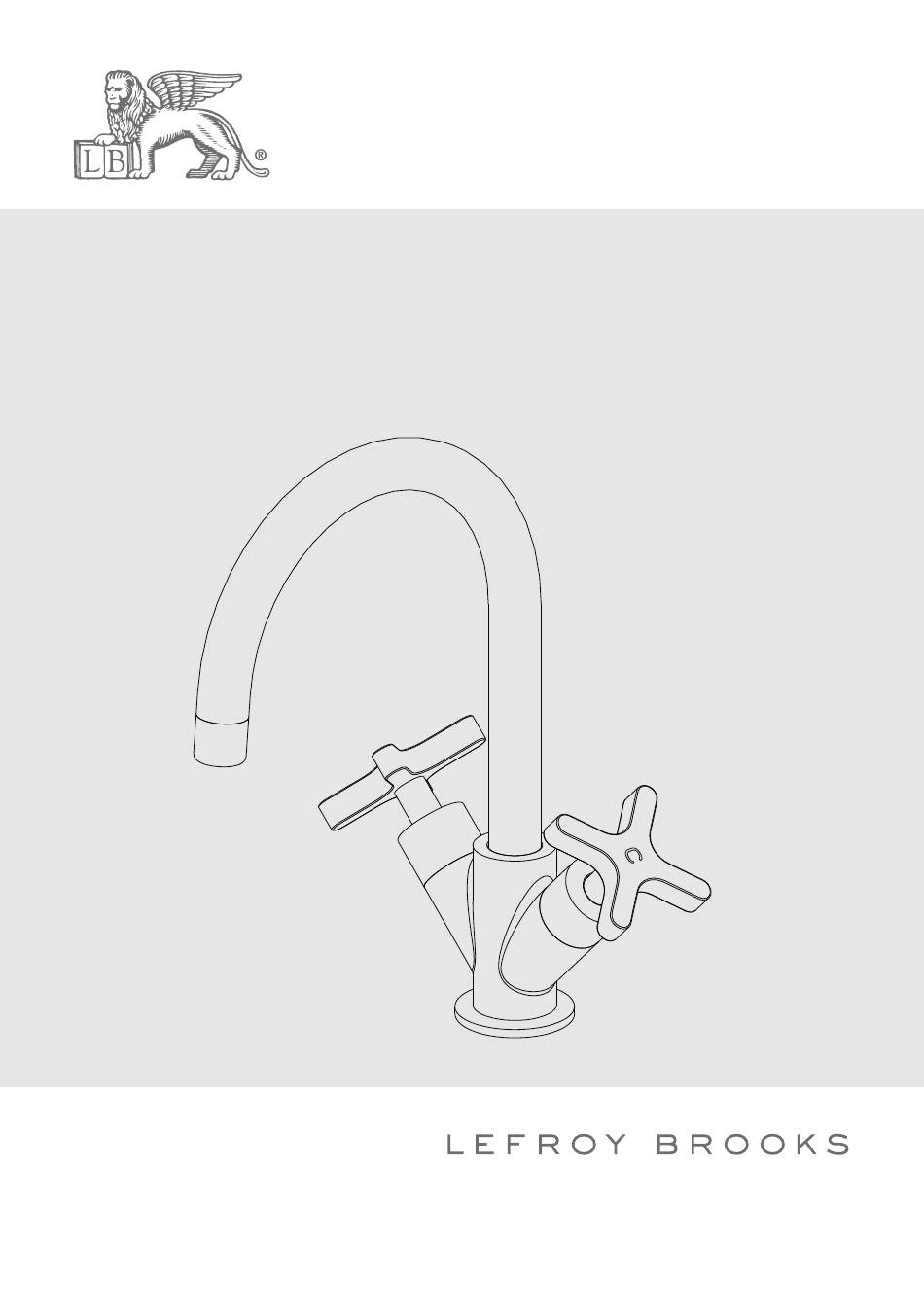

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS K1-1210 CROSS HANDLE MONOBASIN (V-BODY) WITH P.U.W.

  • Page 2: Table Of Contents

    Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...

  • Page 3: Dimensions

    Dimensions in Inches (& Millimetres) 7 9/16" 7 1/4" (192mm) (184.5mm) Ø2 1/8" Ø1 15/16" (Ø55mm) (Ø50mm) Ø1 1/4" 12" MAX 9/16-24UNEF-2B (Ø31.75mm) (305mm MAX) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.

  • Page 4: Instalation Procedure

    Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Put the escutcheon under the bottom of the faucet. Attach the fixing bolt. Attach the flexible hoses to the faucet.
  • Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install Pop-up rod. Install faucet through deck hole. From underneath the sink, install washers and nut.
  • Page 6 Installation Procedure Steps 5-6 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install Pop-up sub-assembly. After installing faucet, remove aerator and open the hot and cold supplies. Check for leaks. Turn on faucet handle for one minute to flush debris from faucet.

  • Page 7: Parts List

    Parts List Exploded view Screw (008772 ) O-Ring (063014) Handle ( C ) (506149C) Handle ( H ) (506149H) Washer (013040) O-Ring ( 004005N) Canopy (078183) Washer (013039) Clip (012112N) Cartridge assembly (507907N) Bolt (017139) Flexible hose (105652W) Adaptor (039332N) Nut (054857) Pop-up knob (124379) Set screw (292545)

  • Page 8: Fault Finder

    Fault Finder Fault Cause Rectification Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replace the cartridge if it is damaged. Leaks around the base of spout. Gasket is misfitted or damaged. Check for gasket placement. Aerator leaks or has an inconsistent Aerator is dirty or misfitted.

  • Page 9: Safety Tips, Care And Maintenance

    Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.

  • Page 10: Guarantee

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
