Everest & Jennings 90763450 Assembly, Installation And Operation Instructions

WARNING: Important! Read and understand these instructions before installing the wheel kit. If the
wheel kit is not properly installed, personal injury and damage to the wheel and/or wheelchair could
result.
WARNING: If components are damaged or missing, contact your GF Health Products, Inc. ("GF")
authorized distributor immediately. DO NOT use substitute parts. Use only Everest & Jennings ("E&J")
replacement parts. Non-E&J replacement parts could cause personal injury and cause damage to the
wheel or wheelchair.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by
improper assembly, installation or use of this product.
INTENDED USE
This product is intended as wheel replacement only.
WARNING: Make note of the placement of the wheel on the wheelchair frame, some frames have
multiple threaded height positions. Always replace wheel kits in the same location to ensure proper fit of
wheel locks and that wheelchair arms do not come in contact with the wheels.
INSTALLATION

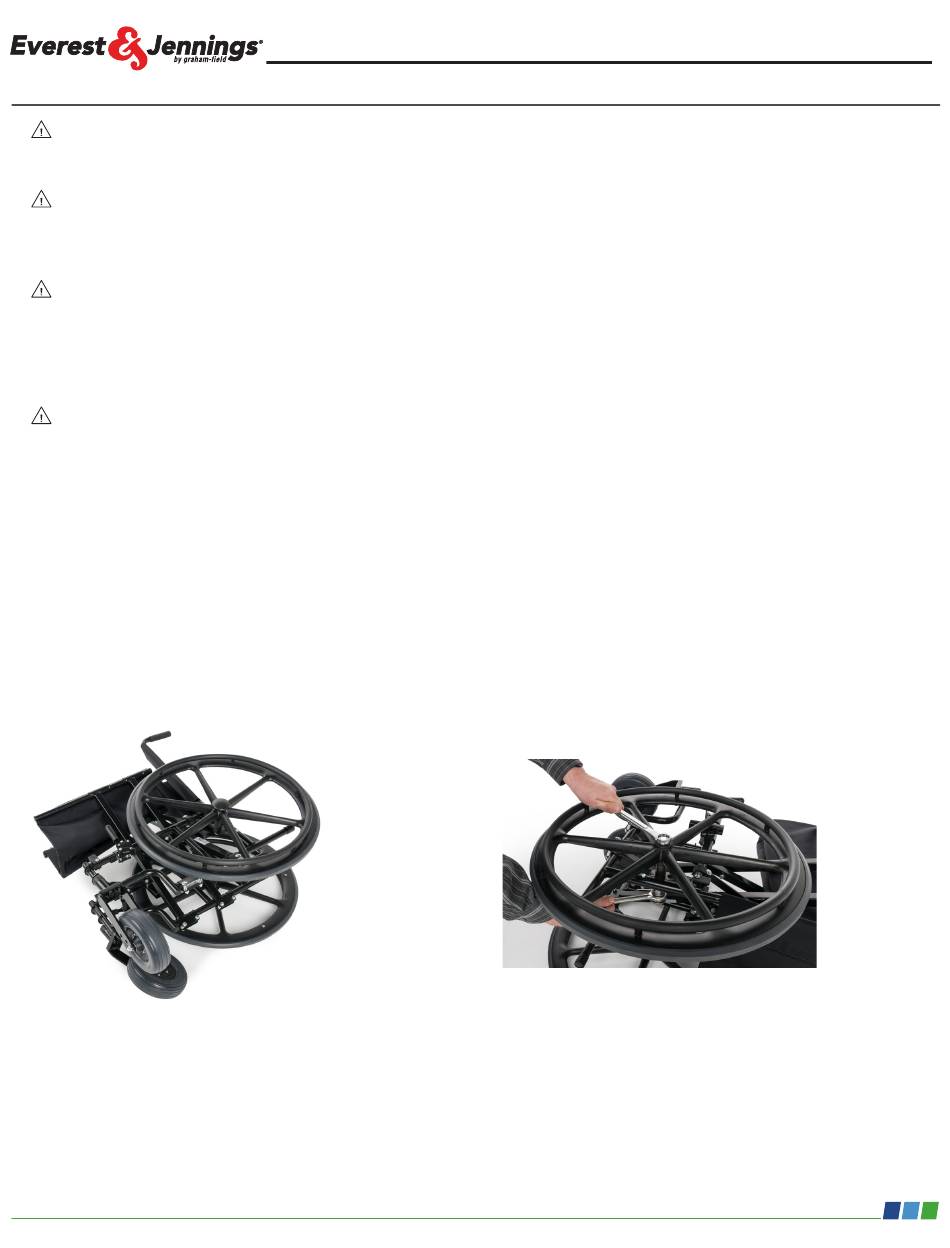

REMOVAL OF OLD WHEEL (SEE PICTURES 1-2 BELOW)
Fold wheelchair to reduce the movement/play. Lay the wheelchair on the opposite side of the wheel to be
replaced, ensure wheel lock is engaged on the wheel on bottom side to ensure chair doesn't move or rotate.
Remove cap cover on wheel center top to expose the bolt. Using a 15/16" socket and/or wrenches on both
the bolt and the nut on inside of wheelchair frame, loosen and then remove the nut and spacer from the bolt
threads. Once the nut and spacer has been removed, slowly pull the bolt out from the frame of the chair. Keep
the bolt, nut, and spacer, you will re-use them for the new wheel assembly.
EJ_GF2400083_HD_HTC-INS-LAB-RevA24
90763450: TRAVELER HD / TRAVELER HTC WHEEL KIT
INSTALLATION AND OPERATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
Picture 1
www.grahamfield.com
Picture 2
