Summary of Contents for tenlamp G4Pro

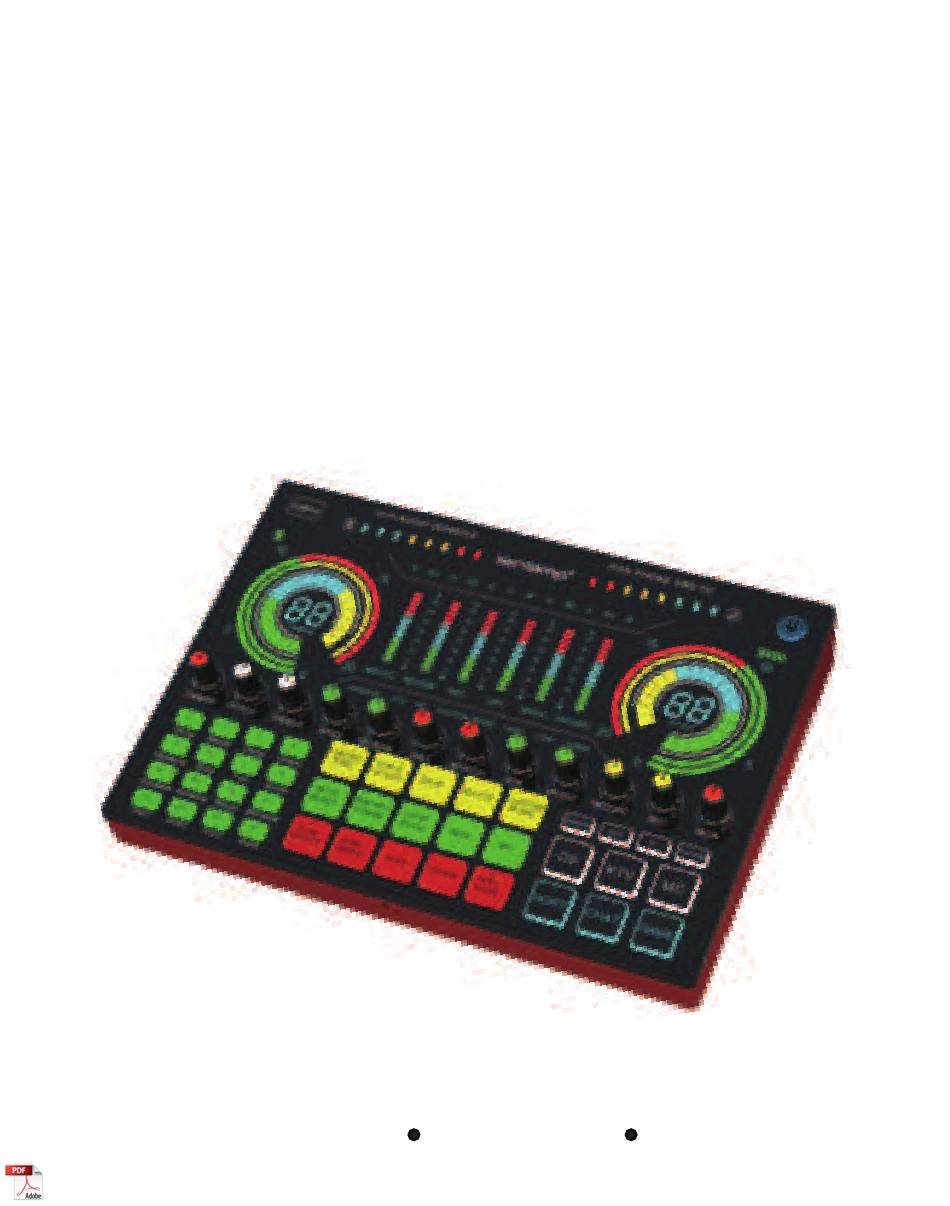

- Page 1 User Manual G4Pro AUDIO CONSOLE Live streaming Podcast Recording ①...
- Page 2 CATALOGUES PRODUCT OVERVIEW..................3 PRODUCT INTERFACES..................3 PRODUCT PANEL FUNCTIONS................5 CONNECTION GUIDE..................9 TUNING SETTINGS RECOMMEND..............12 SPECIFICATIONS...................12 TROUBLESHOOTING..................13 NOISE TREATMENT...................14 WARM TIPS.......................14 Thank you for using the USB audio interface with mixer and sound card, produced by our company, for live streaming, podcast, radio show, recording or other content creations. In order to make it easy for you to experience the product, we have randomly equipped a detailed manual, from which you can know the product introduction, keys function definition, and usage methods.
- Page 3 1. PRODUCT OVERVIEW The G4Pro audio console is a one-stop workstation that allows for the recording and mixing of sound sources without complicated settings. It provides all-in-one audio solution with audio-relat- ed operation and workflow needed, for Live streaming, Podcast creation, Event production, Voice over and other Content Creations.
- Page 4 PC earphone jack. NOTE: When G4Pro mixer is low power or is about to run out of power, it will make a lot of noise; the power is continuing to decrease, noise will be more and more loud. Please charge it as soon as possible.
- Page 5 3. PANEL FUNCTIONS INTRODUCTION ⑤ ④ ③ ② ① G4Pro ⑯ ⑥ ⑦ ⑮ ⑭ ⑧ TIMBRE PITCH REVERB INST MUSIC RECORD ⑨ ORIGINAL CUSTOM MODE HOST CHAT GAME ⑩ TIMBRE PITCH TREBLE BASS REVERB INST #b PITCH MUSIC RECORD ⑪...
- Page 6 8. TIMBRE digital indicator. When you turn the TIMBRE knob, the number will change accordingly (from 01 to 20). When you switch the saved CUSTOM MODE, the number will change synchronously with the number on the right (PITCH), the serial number of the current custom mode will be displayed at the same time. 9.
- Page 7 Short press to turn on/off the Loopback function: input the PC internal audio, such as music, web audio, game. Turning on Loopback will allow the G4Pro mixer to record the PC system internal audio from the USB-C OTG port input. If turned off, you can still hear the system audio via monitoring headphone, but it will not be recorded or heard by audience.
- Page 8 BGM button Short press to turn on/off the function: remove 90% vocals in the current background music(only for the background music inputted from BT and Music port). BT button Short press to turn on the BT function, then short press to disconnect the BT connection after BT connected.
- Page 9 4. CONNECTION GUIDE 4.1 Live Streaming Or Recording On Smartphone DC 5V LIVE1 LIVE2 DYNAMIC HEADSET MIC1 MIC2 INST MUSIC CHARGING DIGITAL ANALOG MICROPHONE ANALOG smartphone1 smartphone2 smartphone3 Monitoring Microphone Accompaniment headphone music Connect the live streaming smartphone, accompaniment smartphone, monitoring earphone and microphone to the mixer as shown in the above.
- Page 10 Microphone Connect the streaming/recording PC, accompaniment device, monitoring earphones, and microphone to the G4Pro mixer as shown in the above. Connect the PC and the mixer by USB-C cable.The PC generally automatically recognize the mixer ID. Enter the Sound settings panel of PC, and set the "G4Pro...
- Page 11 Turn on the BT function via BT button, and the BT button light starts to blink. Search the device in smartphone BT menu, find the BT device of "G4Pro SoundCard", and choose it to connect. After phone BT is connected successfully to the mixer, the BT button light is on always.
- Page 12 MON knob. The main output volume is the volume output to the recording or live streaming device and is controlled by the REORD knob 6. TECHNICAL PARAMETER Basic Parameter Interfaces Parameter Type-C USB USB-C charging port Name G4Pro SoundCard Dimension Type-C USB USB-C OTG port 778g L248*W178*H52mm Environment Temperature 0℃ ~ 45℃/0℉-113℉...
- Page 13 7. TROUBLESHOOTING(FQA) 1. Q: The device does not work, or there is no sound suddenly. Answer: The battery is dead, please connect to USB cable to charge before use; 2. Q: There is a lot of noise during the live streaming. Answer: a.
- Page 14 Low input and high output Reduce the input volume of the microphone on the G4Pro (to no noise), and then amplify the output volume (Main Output fader), similar to the compression effect.
