Summary of Contents for tenlamp V10

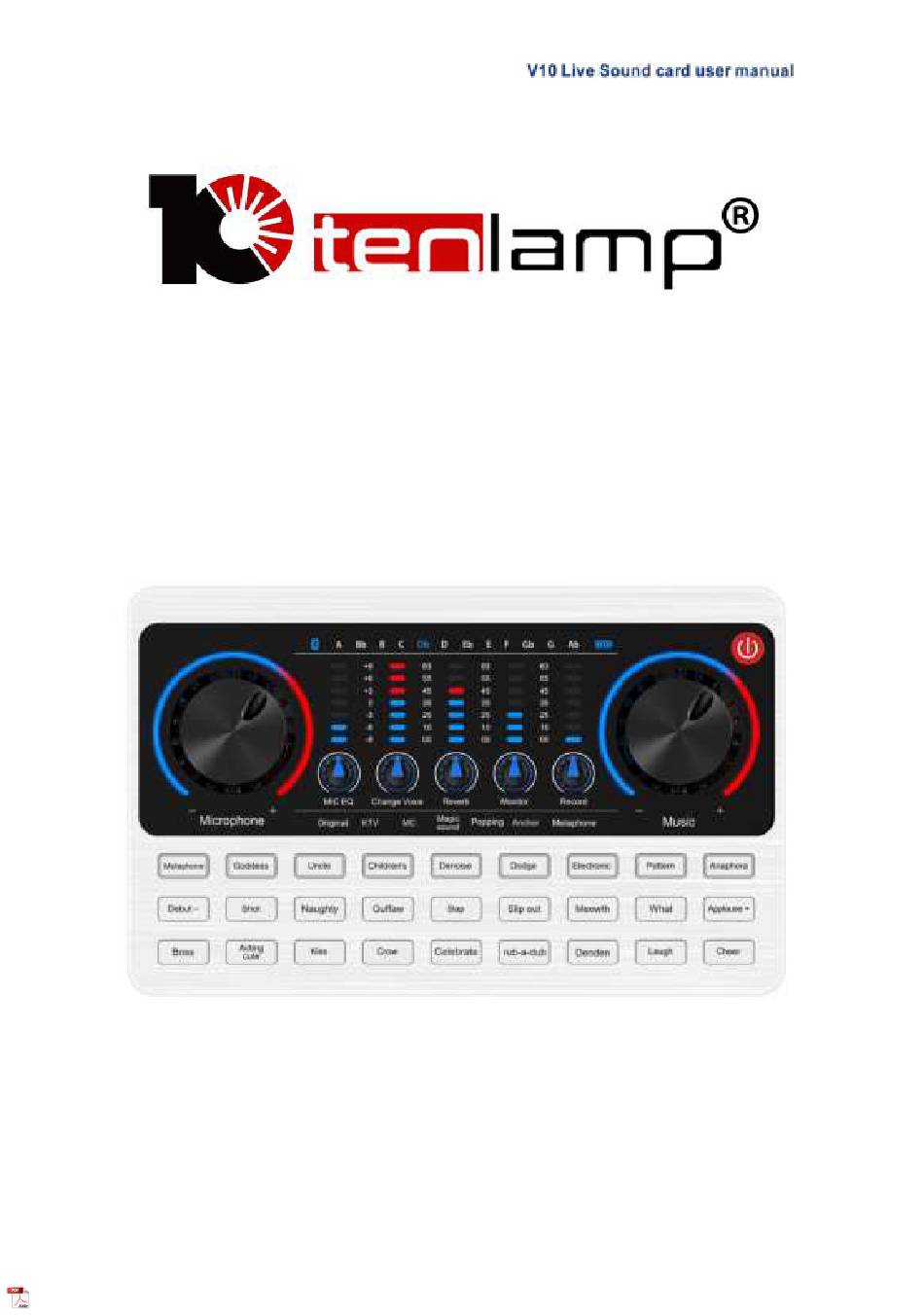

- Page 1 Audio Console Professional Live Sound Card for Streamer...
-
Page 2: Table Of Contents
Live Sound Card Operation Manual Product Model: V10 Catalog 1. Product Overview..............3 2. Product Appearance............. 3 3. Wiring & Panel Definition............. 4 4. Application................7 5. PC Setting................9 6. Connection..............10 7. BT Connection.............11 8.Technical Parameters ............9. Common troubleshooting:..........12 10. -
Page 3: Product Overview
1. Product Overview The V10 sound card is a professional recording and live streaming digital audio mixer, built-in high-performance digital DSP reverberation processing, supports high-definition digital recording, noise reduction, dual mobile phone live streaming, BT wireless accompaniment, real-time earphone monitoring. Provides a variety of microphone interface inputs, a variety of interesting voice changer, 12 professional electronic tone tone, popular live streaming atmosphere sound effects. -
Page 4: Wiring & Panel Definition
3.1 V10 Live Sound Card Wiring Diagram ①PC/Charging: DC+5v input; OTG port; Used for data transmission; Also used as a computer live streaming interface and computer accompaniment interface; The V10 serves as an external audio console for the computer, laptop, smartphone and tablet while live streaming, recording or singing on the computer. - Page 5 3.2 V10 Live Sound Card Panel Definition 1. Power Switch/Loopback：Long press 2 seconds to turn on/off; When working, short press to turn on/off the Loopback function； 【Loopback function: When the "Loopback" Function is ON, the accompaniment or voice can be uploaded to the computer or...
- Page 6 background music, and highlight the voice of the human, suitable for live chat scenes. 9. Denoise button: can automatically reduce the ambient sound from the microphone input. Press the button to turn this function on/off, corresponding button lights on and off.
-
Page 7: Application
Application Phone1 Live Streaming + Phone2 Play Music+ Headset Input & Monitoring Phone1 Live Stream + Phone2 Live Stream + Phone3 Play Music + Mic Input + Headphone Monitoring... - Page 8 PC Live Stream & Play Music + Mic Input + Earphone Monitoring PC1 Live Stream+ PC2 Live Stream + PC3/Phone Play Music + Two Mic Input + Two Headphone Monitoring NOTE: Loopback...
-
Page 9: Pc Setting
Then set both the input and output (or speaker on the playback page and the microphone on the recording page) to: "Tenlamp V10 SoundCard" or "MV-AP82X". After setting, click Apply to confirm. The software used by the computer also needs to be set, such as accompaniment software and live stream software. -
Page 10: Connection
② Can support live streaming up to two smartphones at the same time. 6-2. Live Streaming on Computer or Laptop: ： One end insert into V10 sound card "PC/Charging" jack, other ① end insert the USB jack of computer or laptop (The suggestion is to connect the black USB2.0 interface). -
Page 11: Bt Connection
” , Playing music on smartphones and transmitting it to the device via BT can be used as music accompaniment. Tip: 8. Technical Parameters 1 Basic parameter Name V10 Sound Card Size L225*W140*H40mm Product weight 431g Environment Temperature 0℃ ~ 45℃/0℉-113℉... -
Page 12: Common Troubleshooting
Answer: a. This device has a variety of tone-shifting effects, please switch the sound effect to original sound mode; b.The earphone is incorrectly inserted in the headset position, please unplug it and insert it to the earphone mark position. 10. Accessories List of V10 sound card... -
Page 13: Note
11. NOTE: • Please not use during while charging. • Please charge the audio mixer before using for the first time. • If not used for a long period, please charge the podcast console every 3 months. • Charging is also possible when the power is off. •... - Page 14 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
