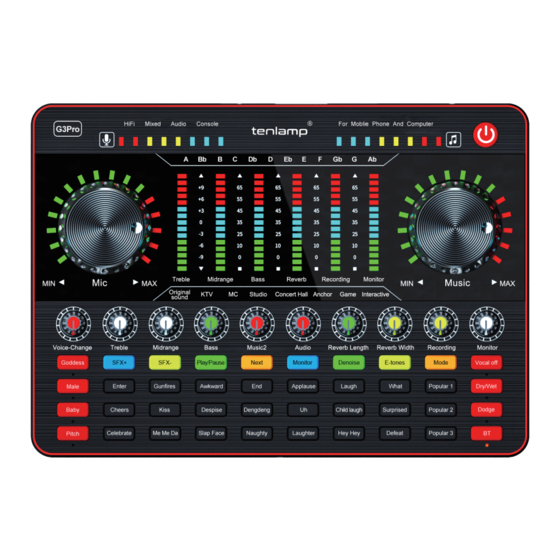

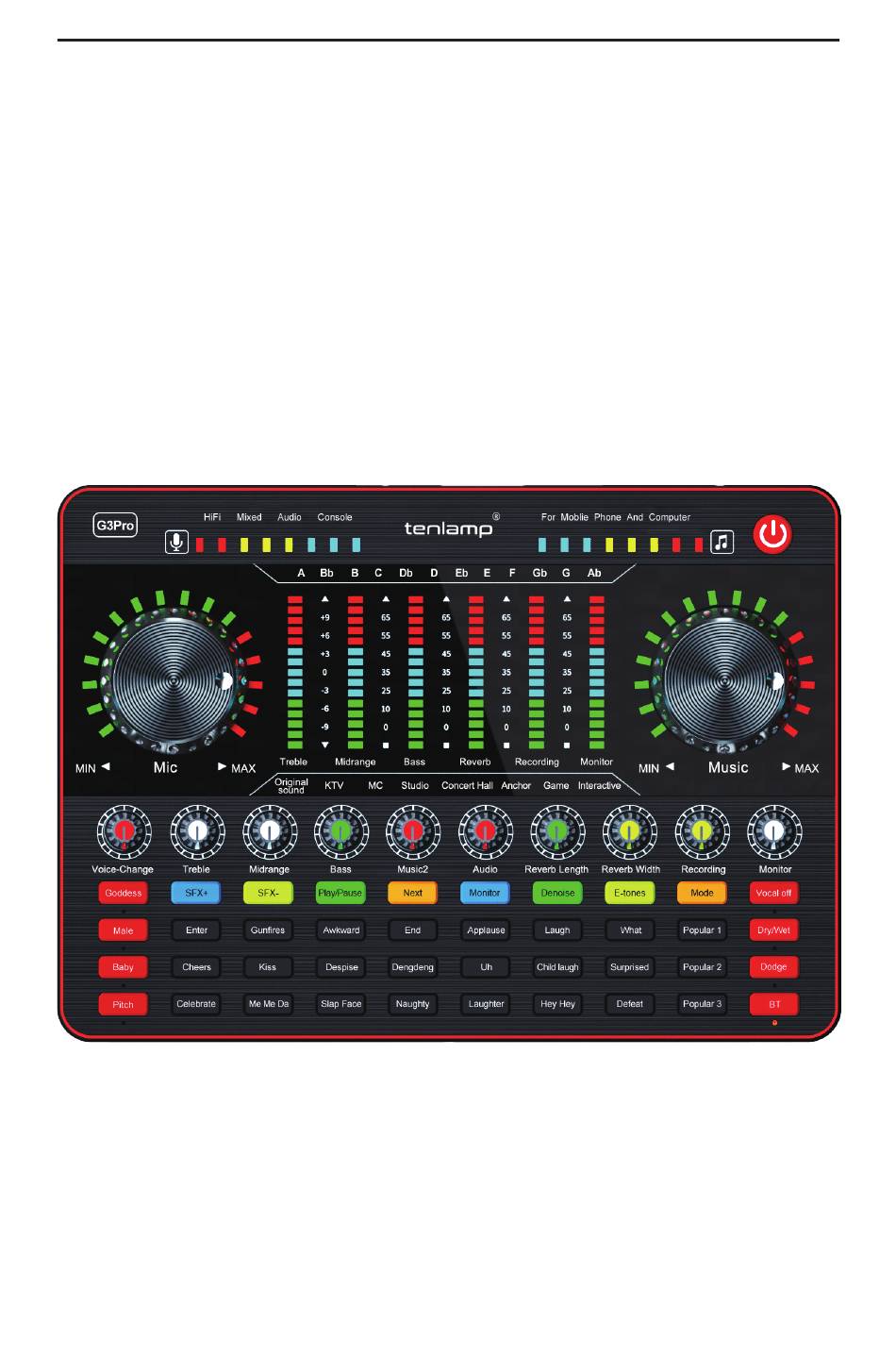

- Page 1 G3 Pro audio console user manual G3 Pro Audio Console For Live Streaming, Podcasting, Recording, Karaoke...
-
Page 2: Table Of Contents
G3 Pro audio console user manual G3 Pro audio console user manual Audio Console Operation Manual Product Model: G3 Pro Catalog Product Overview·········································2 Product Appearance······································2 Wiring & Panel Definition·······························3 A p p l i c a t i o n s · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6 C o m p u t e r S e t t i n g s ·... -
Page 3: Product Overview
G3 Pro audio console user manual 1. Product Overview The G3 Pro sound card is a professional digital vocal effect processor for live streaming, built-in high-performance digital DSP audio processor, supports high-definition digital recording, noise reduction, dual mobile phone live streaming, BT wireless accompaniment, real-time earphone monitoring. -
Page 4: Wiring & Panel Definition
⑩ Mic: 3.5mm input port; Connect a 3.5 mm condenser microphone or dynamic micro- phone, and the microphones does not require external power supply. [48V microphone need a phantom power then use XLR to 3.5mm mic cable to connect the G3 Pro audio console]. - Page 5 G3 Pro audio console user manual 3.2 G3 Pro Audio Console Panel Definition 1.Power/Loopback button: Long press for two seconds to power on/off, while working, short press to turn on/off the "Loopback" function; 2. Music level indicator breathing light: when the music volume is adjusted, it indicates the current volume level, and when it is static, it is the breathing light display.
- Page 6 G3 Pro audio console user manual 【"Dry sound" is the original mic vocals recording without any post-processing, which can be understood as the sound recorded by the microphone. "Wet sound" is the post-processed vocal recording.】 10.Dodge button/status light: Auto-ducking mic input; When turned on, it dodges the microphone sound for the current response accompaniment song.
- Page 7 G3 Pro audio console user manual 4. Application Live Streaming on mobile phones Dynamic mic USB-C USB-C Mic1 Live1 Live2 Music1 Music2 Audio Monitor1 Monitor2 Headset Mic2 Charging smartphone 1 smartphone 2 Condenser microphone smartphone 3 monitoring headset Condenser microphone...
- Page 8 G3 Pro audio console user manual Live Streaming With Headset Dynamic mic USB-C USB-C Mic1 Live1 Live2 Music1 Music2 Audio Monitor1 Monitor2 Headset Mic2 Charging smartphone 1 smartphone 2 smartphone 3 PC earphone jack headset with mic Live Streaming With Dynamic Microphone...
-
Page 9: Connection Ways
Then set both the input and output (or speaker on the playback page and the micro- phone on the recording page) to: "Tenlamp G3 Pro SoundCard" or "MV-AP82X". After setting, click Apply to confirm. - Page 10 6. Connection While Live Streaming 6-1.Live Streaming on Smartphone: ① Using the 3.5mm to 3.5mm TRRS audio cable: One end insert into G3 Pro sound card "Live" jack, other end insert smartphone 3.5mm headphone jack (lightning or USB-C jack need adapter but not included).
-
Page 11: Recharging
G3 Pro audio console user manual 7. Recharging Dynamic mic USB-C USB-C Mic1 Live1 Live2 Music1 Music2 Audio Monitor1 Monitor2 Headset Mic2 Charging 8. BT pairing and connecting The BT ID number of this machine is: G3Pro soundcard When using this audio console for the first time, the audio console will automatically wait for the BT to be searched after turning on it. -
Page 12: Common Troubleshooting
G3 Pro audio console user manual G3 Pro Interfaces Parameters Headset Standard 3.5mm plug Four-section 3.5mm plug Standard 3.5mm plug Live Four-section 3.5mm plug Music Type-C USB Monitor Standard 3.5mm plug USB-C Audio Dynamic mic Standard 6.35mm plug Standard 3.5mm plug 10. -
Page 13: Warm Tips
G3 Pro audio console user manual 11. Warm Tips: • Please do not charge the audio console during live streaming. • Please charge the audio console before using for the first time. • If not used for a long period, please charge the audio console every 3 months. - Page 14 Product Name: Professional Live Sound Card Model: G3 Pro Brand: tenlamp Executive Standard: Q/SZD 009-2018 TEL: 0755-28919761 URL: www.shizhandeng.com Brand Owner: Shenzhen Shizhandeng Trading Co., Ltd. Address: Room 601, Block C, 310 Wuhe Avenue, Luhu Community,Guanhu Street, Long- hua District, Shenzhen Manufacturer: Shenzhen Shizhandeng Technology Co., Ltd.
