USER MANUAL
G3
AUDIO CONSOLE
Streaming Podcast Recording
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for tenlamp G3

Summary of Contents for tenlamp G3

  • Page 1 USER MANUAL AUDIO CONSOLE Streaming Podcast Recording...

  • Page 2: Table Of Contents

    User Manual Model: G3 Content PRODUCT OVERVIEW..............3 PRODUCT APPEARANCE.............3 G3 PORTS CONNECTION..............4 BUTTONS FUNCTION..............5 USING CONNECTION..............7 BT CONNECTION................9 TECHNICAL PARAMETER.............9 SETTINGS RECOMMEND............10 TROUBLESHOOTING..............11 WARM TIPS..................12 Thank you for using the audio interface with mixer and sound card, for live streaming, podcast, recording, or other content creations. In order to let you experience the product better, we provide the detailed instruction which you can find the product’...

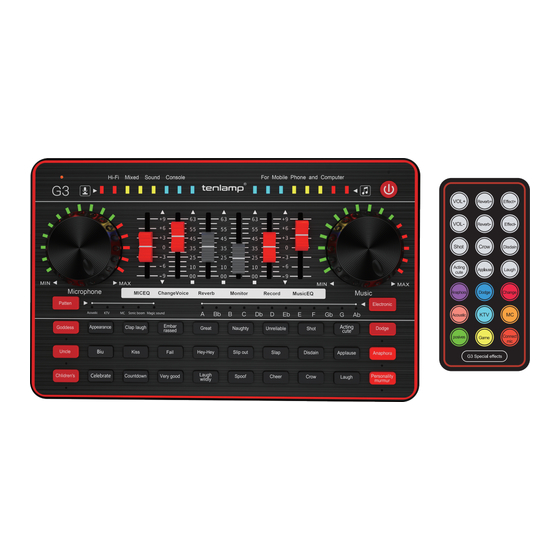

  • Page 3: Product Overview

    PRODUCT OVERVIEW The G3 sound card is a digital audio interface with mixer and sound card, a one-stop workstation for live streaming, podcast, recording and other content creations. Built-in high-performance digital DSP reverberation processing, supports high-definition digital recording, 3 interesting voice changers, 5 preseted reverb modes, PC digital transmis- sion,dual mobile phone live streaming, BT wireless accompaniment, real-time earphone monitoring.

  • Page 4: G3 Ports Connection

    ⑦ ⑦ ① PC/Charging: DC+5V; OTG port; Used for G3 charging and data digital transmission; Computer live streaming/recording port and computer input accompaniment music port; The audio console serves as an external audio processor for the computer/smartphone while live streaming, recording or singing.

  • Page 5: Buttons Function

    Turn on/off auto ducking microphone audio function. When on, the mixer automatically lower the volume of background music while streamer speaking, recover background music volume while streamer stop speaking. 8. Anaphora button/state lamp: when turn on the function, G3 will eliminate 85% the singer's vocals in current accompaniment...
  • Page 6 9. Personality murmur button /status light: Turn on special voice function, and the 6 voice modes can be cyclically switched by Chan- geVoice fader adjusting. 10. Interesting sound effect buttons area: 24 buttons in total. 11. Voice changer button: Three preseted interesting voice changer buttons: Goddess, Uncle and Children’ s. 12.

  • Page 7: Using Connection

    Broadcast port, you can hear the sound of live audiences, guest, followers and other streamers in monitoring headphone, but the sound volume from live audiences, guest, followers and other streamers depend on the other side, G3 can not control the volume of the sound.
  • Page 8 2. Connect the PC and the mixer by USB cable.The PC generally automatically recognize the mixer. 3. Enter the Sound settings of PC, and set the "G3 SoundCard" as PC system default input and output device, or playback device in "Playback" and recording device in "Recording" option, as shown in the down 4.

  • Page 9: Bt Connection

    5. Open the live streaming software on the smartphone or computer for live streaming. Warm Tips BT connection is limited by distance(10 meter), do not place the too far away from the G3. Be far away from strong signal interference place.

  • Page 10: Settings Recommend

    SETTINGS RECOMMEND Live Streaming Setting 0 35 45 63 +3 Recommend Original sound mode Singsing Setting +6 35 55 55 63 -3 Recommend KTV sound mode Warm Tips Everyone's voice is different. It is recommended to use a monitor headphone to adjust voice with the sound card.

  • Page 11: Troubleshooting

    TROUBLESHOOTING(FQA) 1. Q: The device does not work, or there is no sound suddenly. Answer: The battery is dead, please connect to charging cable to charge before use; 2. Q: There is a lot of noise during the live streaming. Answer: a.

  • Page 12: Warm Tips

    WARM TIPS • Please do not charge the sound card during live streaming. • Please charge the sound card before using for the first time. • If not used for a long period, please charge the audio console every 3 months. •...
