NEPTUNE X-PRO

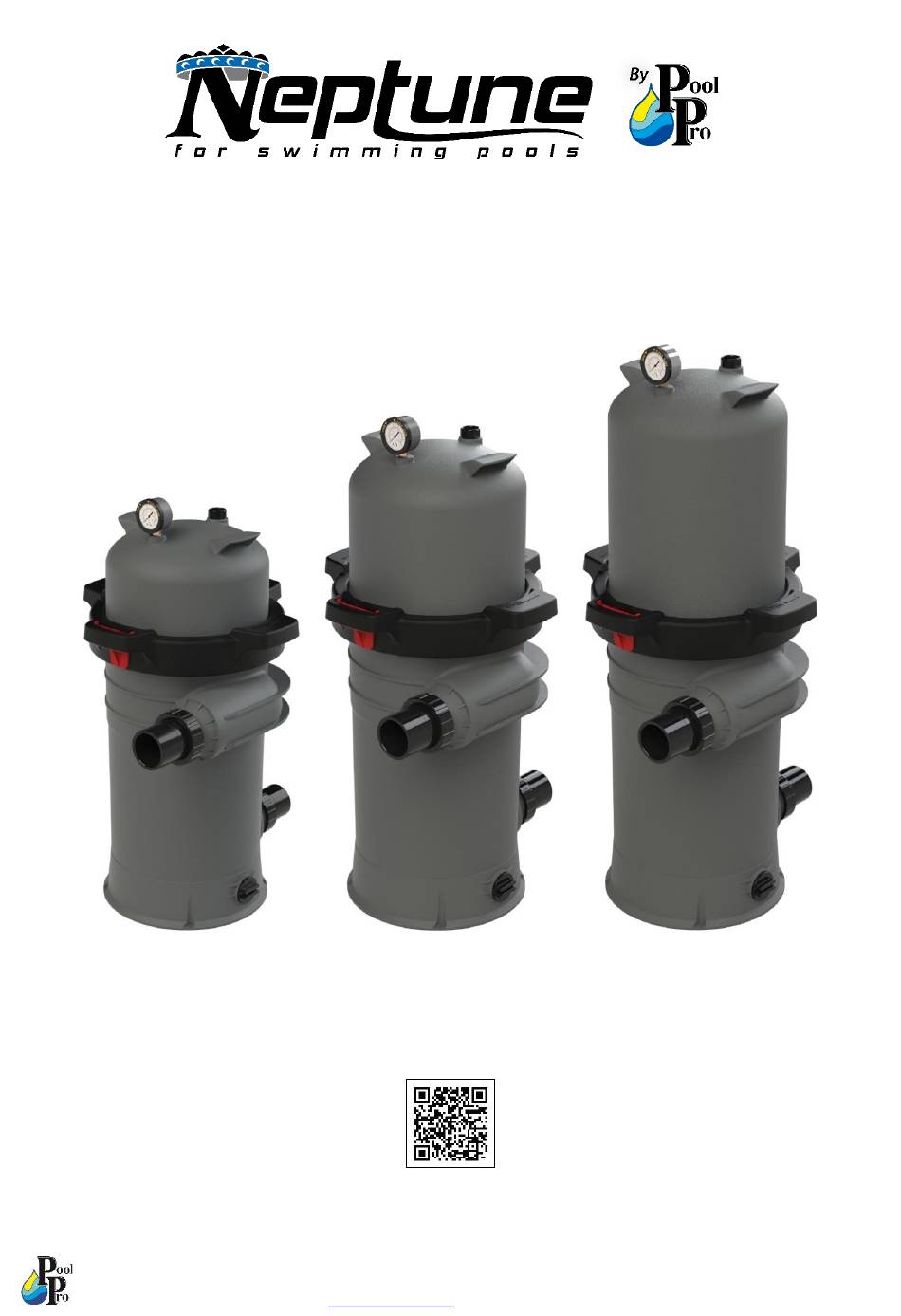

SINGLE ELEMENT CARTRIDGE FILTER
INSTALLATION & OPERATION
MANUAL
THANK YOU FOR PURCHASING A NEPTUNE CARTRIDGE FILTER.
Please read the manual thoroughly before installing or using the product.
Only qualified technicians must install the product. Keep this manual for future reference.
Visit
www.poolpro.com.au
for more information
Page 1 of 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pool Pro NEPTUNE X-PRO
Summary of Contents for Pool Pro NEPTUNE X-PRO
- Page 1 NEPTUNE X-PRO SINGLE ELEMENT CARTRIDGE FILTER INSTALLATION & OPERATION MANUAL THANK YOU FOR PURCHASING A NEPTUNE CARTRIDGE FILTER. Please read the manual thoroughly before installing or using the product. Only qualified technicians must install the product. Keep this manual for future reference.
- Page 2 Neptune Single Element Cartridge Filters have been specifically designed for the filtration of spa and swimming pool water. They should not be used for any other purpose without first consulting your Neptune X-Pro dealer or the manufacturer. DISCLAIMER Information in this manual is intended to provide general information on a particular subject(s) in good faith and is not an exhaustive treatment of such subject(s).
- Page 3 SECTION 1: IMPORTANT WARNINGS AND SAFETY INFORMATION This manual contains important information about the installation, operation, and safe use of this product. This information should be given to the installer, owner and/or operator of the cartridge filter. When installing and using the cartridge filter, basic safety precautions should always be followed. Failure to follow safety warnings and instructions in this manual can result in serious injury and/or damage to your equipment.
- Page 4 Use only genuine replacement parts supplied by the manufacturer for service and repair. SECTION 2: WATER CHEMISTRY Consult your local Pool Pro Professional to correctly balance your pool water. Follow instructions on the packaging of each chemical. Always add chemicals to water, never add water to chemicals.
- Page 5 SECTION 3: PRODUCT SPECIFICATIONS FILTRATION INFORMATION Effective Filtration Area Max. Flow Rate Model L/min Sq.ft CF100X 9.29 CF150X 13.94 CF200X 18.58 PRODUCT DIMENSIONS Model inch inch inch inch CF100X 53.05 20.90 23.00 9.05 46.40 18.30 8.20 3.20 CF150X 53.05 20.90 31.50 12.40 46.40 18.30 8.20 3.20 CF200X...
- Page 6 1. Check the cartridge filter and the pipe connections are installed and plumbed correctly. 5.2: BEFORE STARTING THE PUMP 1. Use ONLY genuine Neptune X-Pro components. Non-genuine Lock Rings may fail in use and cause explosive component separation. Verify that upper and lower filter bodies are properly secured with the Lock Ring and that the Lock Ring is tightened until the latch is locked in position.
- Page 7 Note: you may find some debris on the cartridge pleats, which may not have been removed with hosing. You can also use Pool Pro Cleaner and Degreaser for Filters to help clean and revitalise the cartridge element.
- Page 8 Place the upper body on the O-Ring and the lower body. Use a Neptune X-Pro Lock Ring only. Tighten the Lock Ring (clockwise) until the latch is locked in position. Ensure that upper and lower bodies are properly secured with the Lock Ring.
- Page 9 7.7: VACUUMING THE POOL Vacuuming can be performed directly into the filter whenever needed. Clean cartridge after vacuuming if required. 7.8: REMOVING THE AIR RELEASE VALVE The filter comes with a preinstalled Air Release Valve. Servicing the Air Release Valve should be carried out by qualified pool technicians only.
- Page 10 SECTION 9: SCHEMATICS Ref # Code Description PGCFX Pressure Gauge 60psi, Plastic Casing Upper Body CF100X Upper Body CF150X Upper Body CF200X CFX01 Nut for Pressure Gauge D22X5 CFX02 Lock Ring CFX03 Lock Ring Latch OR640 Filter Tank / Lid O-Ring D306Xd7.5 Union Nut 2"...
- Page 11 • The warranty for the Neptune X-Pro Single Element Cartridge Filter (models CF100X, CF150X and CF200X) covers manufacturer’s defects in materials and workmanship under normal use during the warranty period for: 5 years on the filter tank 1 year on all other parts The above warranty periods apply to both residential and commercial applications.
