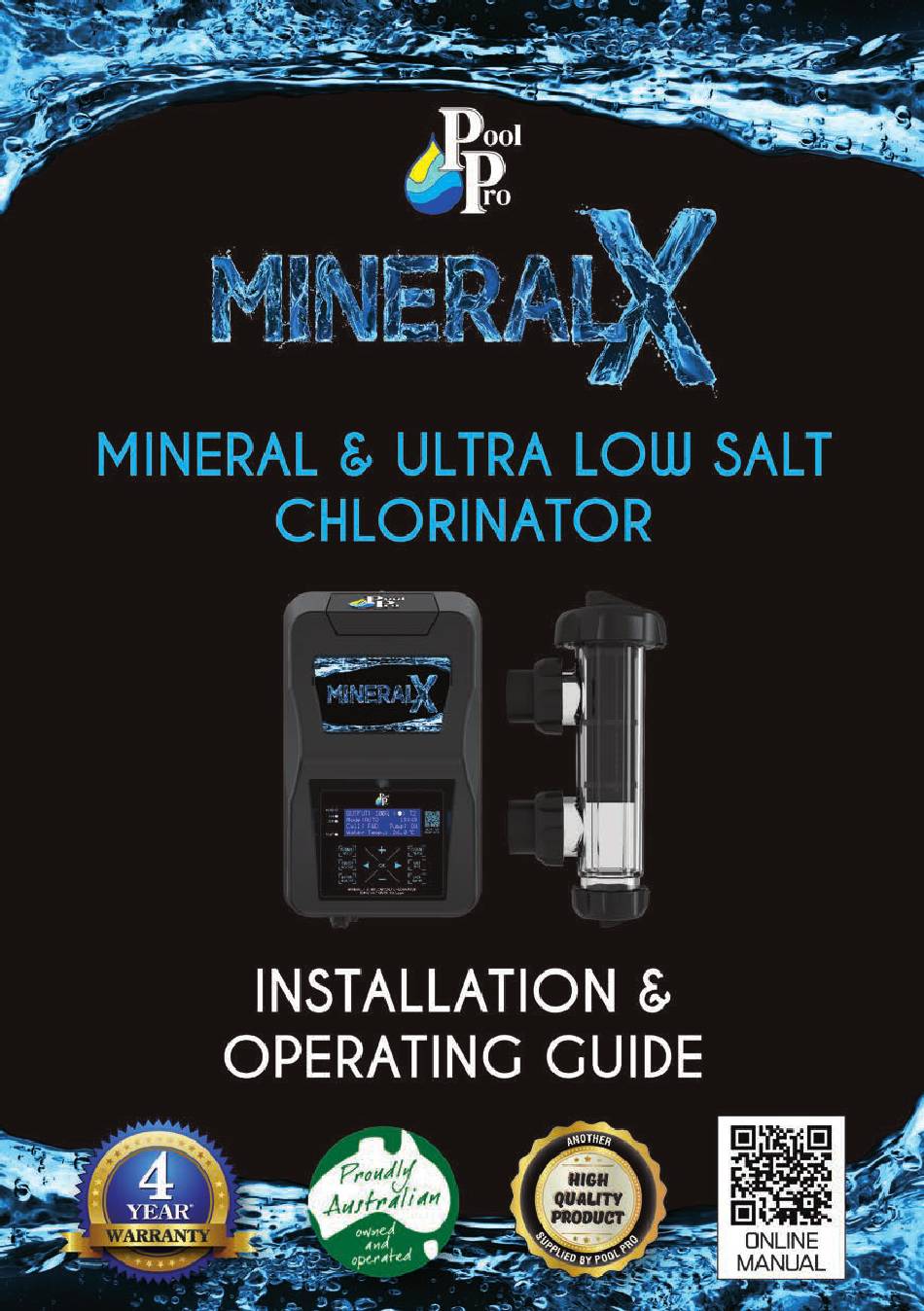

Pool Pro MINERALX Installation & Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINERALX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pool Pro MINERALX

Summary of Contents for Pool Pro MINERALX

  • Page 2: Table Of Contents

    CONTENTS Section Page # Important Warnings/Safety Instructions ............3 - 4 Packaging Contents .................... 4 Tools Needed ...................... 4 Preparing the Pool ....................5 Recommended Water Balancing ................. 6 Installation Diagram ..................7 - 8 Installing the Chlorinator Power Pack ..............8 Installing the Cell ....................

  • Page 3: Important Warnings/Safety Instructions

    This change of polarity causes the calcium to dislodge and keep the cell plates clean. Occasional cleaning of the electrode plates may still be necessary. Thank you again for choosing a Pool Pro MineralX Chlorinator. We wish you many happy years of swimming in your crystal-clear pool.

  • Page 4: Packaging Contents

    ● Use Stabiliser to stabilise chlorine in the swimming pool. ● For Pool Pro MineralX Chlorinator models NDCMX25 and NDCMX35, maintain your salt level at 1500ppm for optimum performance. ● Decrease production when temperature goes down - see Section 12.3 WINTER/ BLANKET MODE.

  • Page 5: Preparing The Pool

    There will always be less chlorine demand in colder water. For salt only: We recommend adding 1.5kg of pool salt per 1000 litres of pool water for the Pool Pro MineralX Chlorinator. For minerals/magnesium chloride: Allow an extra 20-30% of the product to achieve the correct TDS for these types of salts.

  • Page 6: Recommended Water Balancing

    Add Pool Pro MineralX or Partially empty the Salt Fortnightly Pool Pro Ultrafine Salt pool and refill it (1500ppm ideal) This is a guide only, does not constitute and should not be used as an alternative to specific professional advice. Pool Pro and The POPS Group Pty Ltd accept no liability for any damage, loss or harm associated with the use of this guide. Page 6 www.poolpro.com.au...

  • Page 7: Installation Diagram

    6. INSTALLATION DIAGRAM Ref # Item Ref # Item Ref # Item Pool Filter Pool Pump Cell Housing Heat Pump Chlorinator pH Controller IMPORTANT NOTES The pump rating must not exceed 8amps. Saltwater may damage electrical components in the Power Pack. WARNING: We DO NOT recommend the use of valves on the inlet or outlet of the cell housing.

  • Page 8: Installing The Chlorinator Power Pack

    7. INSTALLING THE CHLORINATOR POWER PACK The Pool Pro MineralX Chlorinator has an Ingress Protection Rating of IP23 enabling it to be installed outdoors. Regulations require that the Power Pack shall be installed outside the pool zone. The Power Pack shall be installed according to AS/NZS 3000 wiring rules.

  • Page 9: Control Panel Operation

    9. CONTROL PANEL OPERATION IMPORTANT NOTES After 60 seconds of inactivity in any display, the display will return to the Main Screen. After 10 minutes of inactivity in any display, the LCD screen will dim. Simply press any button on the control panel to wake the screen.

  • Page 10: Initial Start-Up

    10. INITIAL START-UP On initial startup of your Pool Pro MineralX Chlorinator the screen will run through a start-up sequence. Please wait until “START UP CLOCK SET” is displayed. SETTING THE CLOCK (time of day) 1. “START UP CLOCK SET” will display on the LCD screen.

  • Page 11: The Main Screen

    11. THE MAIN SCREEN The Main Screen displays the current settings for the chlorinator. Output = The output percentage. (●) symbol = Normal operation. T1 or T2 = “Single Timer Cycle” or “Dual Timer Cycle” is selected. Mode = ON, OFF or AUTO. HH:MM = The time of day in 24 hour format.

  • Page 12: Shortcut Button: Winter/Blanket

    2. The cycle will automatically begin and run for 8 hours by default. 3. Press to adjust the run time. You cannot use any other functions while the Chlor Boost function is running. 4. Press to stop the cycle if needed, otherwise the chlorinator will revert back to normal settings once the cycle has finished.

  • Page 13: Shortcut Button: Salt Test

    12.5 SHORTCUT BUTTON: SALT TEST This function measures the salt level in the pool water. This function is a guide only. Have your pool water tested by your local Pool Pro Professional in order to add correct www.poolpro.com.au Page 13...

  • Page 14: Shortcut Button: Backwash

    levels of salt/minerals, depending on the test results. 1. Ensure the cell is clear of calcium deposits (which may affect test results). 2. Press the shortcut button or enter Salt Test via the Main Menu. 3. The chlorinator will run a salt test, allow at least 30 seconds for an accurate reading. The LCD screen will display the test results and any action needed to be taken.

  • Page 15: Main Menu

    NOTE: In areas where the water’s calcium hardness is low (less than 200ppm) cleaning of the cell may not be necessary. Where calcium levels exceed 200ppm, regular inspection of the cell is necessary. Cleaning with Pool Pro Cell Cleaner may be necessary.

  • Page 16: Main Menu: Chlor Boost

    13.4 MAIN MENU: CHLOR BOOST See Section 12.2 on pages 11-12 (SHORTCUT BUTTON: CHLOR BOOST). 13.5 MAIN MENU: CHLOR SETTING This function controls the chlorine output of the chlorinator. Used for running the pump for longer hours (i.e. with a variable speed pump or for additional filtration). 1. Press the button to enter the Main Menu. Press to scroll through the menu.

  • Page 17: Main Menu: Salt Test

    3. Press to return to the Main Menu. Press again to return to the Main Screen. Contact your distributor or your local Pool Pro Professional for further information regarding the Service Menu. 13.12 MAIN MENU: SPA MODE This function allows you to adjust the settings for a spa.
  • Page 18 2. Press to adjust the setting between ON or OFF, then press to save. To set the run time of the pH Controller: The run time is programmed automatically when setting up the volume of the swimming pool in the chlorinator. The system calculates how many minutes per day your Neptune pH Controller runs based on the volume of your pool.

  • Page 19: Chlorinator Maintenance

    4. Check for pool debris, especially after backwashing. Check for calcium build-up on the electrode. Do not scratch or bend the cell plates. 5. If calcium build-up is present, use Pool Pro Cell Cleaner to clean the cell. We do not recommend the use of Hydrochloric Acid to clean the cell.

  • Page 20: Troubleshooting

    Air in the cell housing/water not covering water flow. the water sensor, check for closed valve, pump fault, burst pipe, etc. If none detected contact your local Pool Pro Professional for diagnosis. Low speed pump not Increase the speed of the pump until supplying sufficient housing is filled.
  • Page 21 Fault Indication Potential Cause Remedy No current flow Faulty Control or Main Check circuit breaker, possible faulty PCB - – no output. PCB. call for service. Everything Incorrect timer Press Power/Mode button until in ON displays OK but settings. mode. Does it work now? not turning on.
  • Page 22 Fault Indication Potential Cause Remedy Cell not Excessively high 1. See Calcium Hardness levels in Water cleaning, calcium, change of Balancing table (Page 6) and adjust water excessive direction time set too accordingly. 2. Change the Cell Cleaning calcium build high or faulty PCB.

  • Page 23: Schematics

    16. SCHEMATICS www.poolpro.com.au Page 23...
  • Page 24 CODE DESCRIPTION NDCMX25PP MineralX 25g Power Pack NDCMX35PP MineralX 35g Power Pack Wire Loom SL-12 Multi PCB TB-GND Pin 1 to LCD PCB PPN00895 RB-GND Pin 1 Black PPN00364 Front Case PPN00365 Top Vent Cover PPN00367-2 Front Flap 6A PPN01457-2...

  • Page 25: Chlorine Production And Specifications

    36 PPN00485 Ribbon Cable with Red line and Header Sockets - PPN00008 Wire Loom CC-05 - Earth Wire - PPN00036 Cable Tie 3mm - PPN00560 Green Wall Plugs - PPN00217 Screws Wall SS M5x25 - PPN00052 Screw Stainless M3x6 S/S (Triac Connection & PCB) 61 PPSL-CELL25RP-LS 25g/hr Low Salt Cell Only 61 PPSL-CELL35RPB-LS 35g/hr Low Salt Cell Only...

  • Page 26: Technical Support

    19. WARRANTY 1: Pool Pro warrants the Pool Pro MineralX Chlorinator range (domestic models) only for the original purchaser and is non-transferable. Pool Pro warrants the power pack and cell to be free of manufacturer’s defects in materials and workmanship for a total period of four (4) years or up to 10,000 hours (whichever comes first) from the date of original purchase;...

  • Page 27: Product Registration

    7: Products sold by the manufacturer are designed for use with swimming pool water balanced in accordance with the Langelier Saturation Index (AS 3633-1989) with a pH range of 6.8-7.8. The chlorine level should not exceed 4ppm and the salt level should not exceed 4500ppm.
