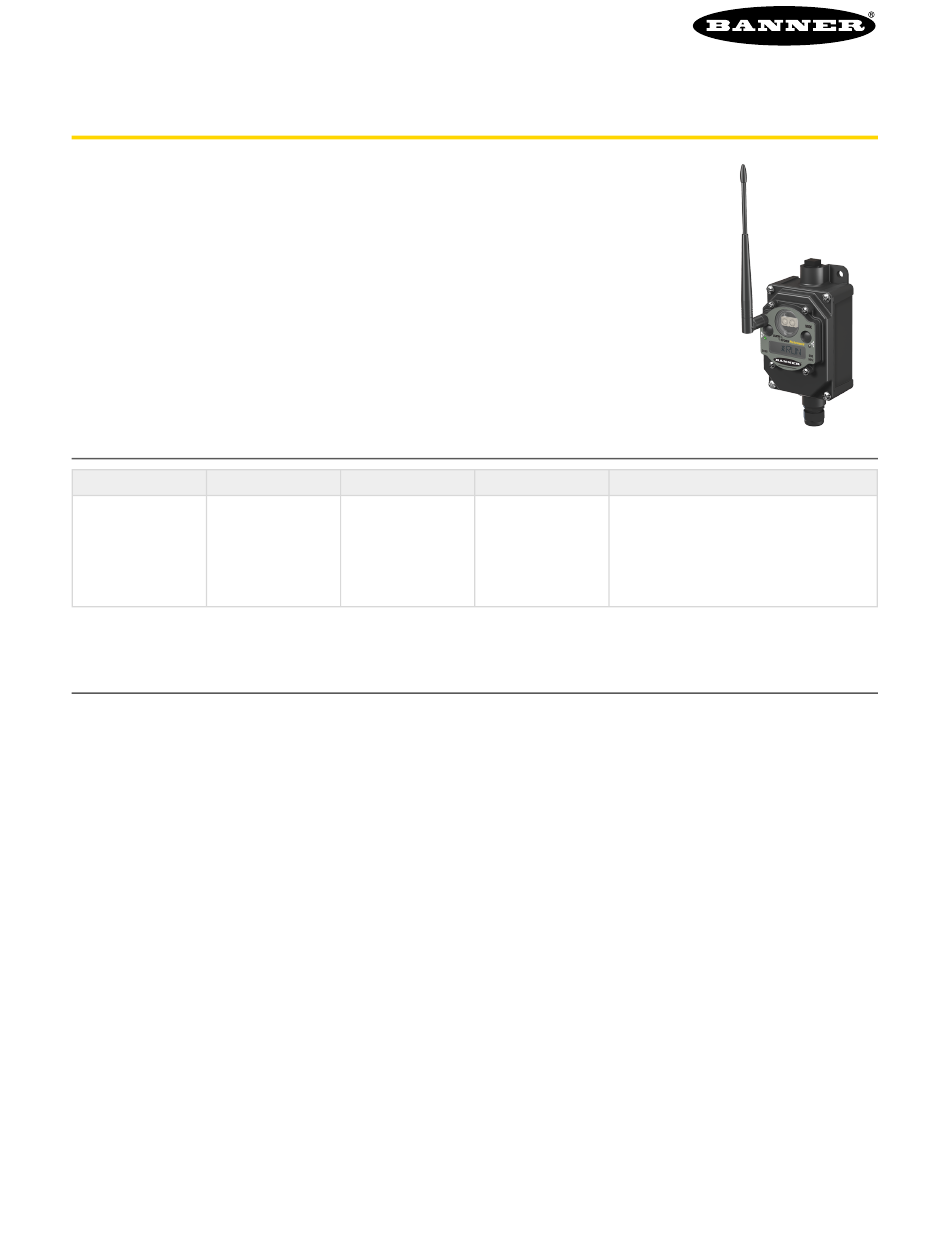

MultiHop H12 Data Radio
M-H12 Features
The Sure Cross® wireless system is a radio frequency network with integrated I/O that operates in most
environments to eliminate the need for wiring runs. Wireless MultiHop data radio networks are formed around a
MultiHop master and one or more slaves and extend the range of a Modbus or other serial communication
network.
• Wireless industrial I/O device with two NPN discrete inputs, two NMOS discrete outputs, two 0 to 20 mA
analog inputs, one thermistor input, two SDI-12 inputs, and two switch power outputs
• Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models and 65 mW for 2.4 GHz
models
Flex Power® power options allow for 10 V DC to 30 V DC, solar, and battery power sources for low-
•
power applications.
• Self-healing, auto-routing radio frequency network with multiple hops extends the network's range and
improves radio link performance
• Serial and I/O communication on a Modbus platform
• Message routing improves link performance
• DIP switches select operational modes: master, repeater, or slave
• Built-in site survey mode enables rapid assessment of a location's RF transmission properties
• Frequency Hopping Spread Spectrum (FHSS) technology ensures reliable data delivery
M-H12 Models
Model ISM Radio Band
DX80DR9M-H12E 900 MHz
The following models are no longer available for order but are covered by the contents of this document: DX80DR9M-H12, DX80DR2M-H12,
and DX80DR2M-H12E
Configuration Instructions
Set Up Your MultiHop Network
To set up and install your wireless MultiHop network, follow these steps:
1. If your radios have DIP switches, configure the DIP switches of all devices.
2. Connect the sensors to the MultiHop radios if applicable.
3. Apply power to all devices.
4. If your MultiHop radio has rotary dials, set the MultiHop Radio ID. If your MultiHop radio has no rotary dials, continue to the next
step.
5. Form the wireless network by binding the server and repeater radios to the client radio. If the binding instructions are not included in
this datasheet, refer to the quick start guide or product manual.
6. Observe the LED behavior to verify the devices are communicating with each other.
7. Configure any I/O points to use the sensors connected to the Sure Cross devices.
8. Conduct a site survey between the MultiHop radios. If the site survey instructions are not included in this datasheet, refer to the
product manual.
9. Install your wireless sensor network components. If the installation instructions are not included in this datasheet, refer to the product
manual.
For additional information, refer to one of the following documents:
• MultiHop Data Radio Quick Start Guide: 152653
• MultiHop Data Radio Instruction Manual: 151317
• MultiHop Register Guide: 155289
Original Instructions
February 15, 2024
Supply Voltage Housing
10 to 30 V DC or
IEC IP65; NEMA 4X
integrated battery
© Banner Engineering Corp.
Inputs and Outputs
Inputs: Two NPN discrete, two 0 to 20
analog, one thermistor, and two SDI-12
Outputs: Two NMOS discrete
Switch Power: Two (for SDI-12)
Serial interface: RS-485
p/n: 151365 Rev. Q
