HITWAY H5 Manual

PACKAGE CONTENTS

Assembled electric scooter

Accessories:

TOOL KIT USAGE

This document describes the use of each of the tools in the included tool kit.

Hex head wrench S2.5

1. Adjust left and right handle covers. M3X10 Stainless Steel socket head cap screws.


Hex head wrench S3

1. Adjust horn and headlight switch assembly screws. M4X20 socket head cap screws.

2. Adjust left and right turn signal assembly screws. M4X25 socket head cap screws.


Hex head wrench S4

1. Adjust folding handle bar attachment screws.

2. Adjust Display assembly screw. M5X20 socket head cap screw.

3. Adjust kickstand attachment screw. M5X10 socket head cap screws.

4. Adjust bottom cover attachment screws. M5X10 Stainless Steel socket head cap screws.

5. Adjust side cover attachment screws. M5X12 flat head socket head screws.

6. Adjust stem clamp screws. M5X25 Stainless Steel socket head cap screws.

7. Adjust brake disc screws. M5X12 socket head cap screws.


Hex head wrench S5

1. Adjust controller housing attachment screws. M6X16 socket head cap screws.

2. Adjust connector base attachment screws. M6X16 socket head cap screws.

3. Adjust front and rear disc brake screws. M6X16 socket head cap screws.

4. Adjust seat base attachment screws. M6X16 socket head cap screws.

5. Adjust T-bar folding assembly attachment screw. M6X20 socket head cap screws.

6. Adjust headlight mounting screw. M6X16 socket head cap screw.

7. Adjust left and right hand brake levers. M6X20 socket head cap screws.

8. Adjust stem clamp screw. M6X30 Stainless socket head cap screw.


Hex head wrench S6

1. Adjust shock absorber attachment screws. M8X35 & M8X45 socket head cap screws.


Hex head wrench S8

1. Adjust front wheel axle screw. M10X160 socket head cap screw.

2. Adjust rear wheel fork assembly screws. M10X150 socket head cap screw.


Open end combo wrench S17-S19 (17mm x 19mm)

1. Adjust front wheel axle nut.


Open end combo wrench S18-S21 (18mm x 21mm)

1. Adjust motor nut.

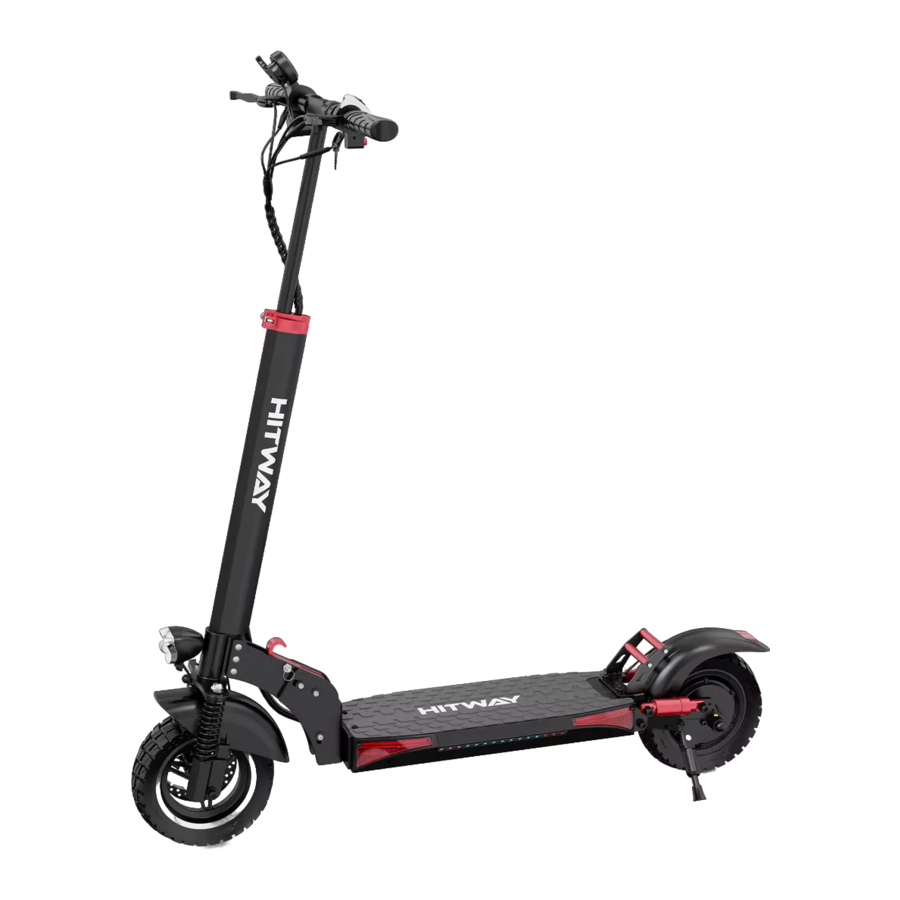

PRODUCT OVERVIEW

Power Switch

Warm reminder: To make folding more convenient, the ferrule and shaft are not fully tightened, it is normal if there is a gap. Please be assured that this will not affect driving safety.

If necessary, you can adjust it by yourself: adjusting the screw clockwise will loosen the handle, adjusting the screw counterclockwise will tighten the handle.

Intelligent Accelerator & Dashboard

Version Number: 2016020
Model Number: JX-168
Working Voltage: 8-80V

Function:

1. Display Function
   Speed Display, Battery Indicator, Fault Indicator, Headlight Indicator, Cruise Indicator, Gear Indicator, Total Mileage, Single Mileage, Real-time Voltage, Operating Current, Operating Time, Start Mode
2. Communication Protocol: UART
3. All display will be displayed within 1s after power on


Icon Display Introduction

1. Battery Bar
2. Multifunction Icon
   Total Mileage ODO;
   Single Mileage TRIP;
   Real-time Voltage V;
   Running Current A;
   Running Time TIME;
   Fault Code E
3. When the symbol is flashing, short press the ON/OFF button to adjust the display interface to Fault Code E interface.
   The corresponding number represents different fault, the details are as follows:
   E01. Motor Hall Wire Status
   E02. Brake Failure E06. Undervoltage
   E07. Motor Failure
   E08. Handlebar Failure
   E09. Controller Failure
   E010. Receiving Delay
   E011. Sending Failure
4. Speed IconMPH, KM/H

5. Gear Icon

   Short press the MODE button to switch the gears cyclically.
   The scooter is in low speed mode from the factory.(gear icon without frame)

   1st gear 10km/h, 2nd gear 15km/h, 3rd gear 25km/h.
   Short press the M key 5 times in a row to switch to high-speed mode. (gear icon with frame) 1st gear 15km/h, 2nd gear 30km/h, 3rd gear 45km/h.
   You can adjust it according to your needs.
6. Cruise Icon

   After the motor is running, keep the speed for 5 seconds and then the cruise indicator lights up. After releasing the speed control handle, the motor keeps running at the original speed. When you brake or accelerate again, the cruise mode will end.
7. Start Method

   Non-zero Start: NON indicator lights up

   Zero Start: ZERO indicator lights up

8. USB Charging Icon

   When USB is connected and generated exceed 100 mA current, the USB icon lights up.
   The icon flashing indicates intermittent charging or the load current exceeds 500mA, at this time it will automatically turn on the protection mode.
9. Parameter Setting and Definition
   P02: Mileage Unit, 0: Km; 1: Mile;
   P04: Sleep Time, 0: no sleep; Other Numbers: sleep time; Range, 1-60 minutes;
   P09: Zero Start, Non-zero Start, 0: zero start; 1: non-zero start;
   P16: Real-time Cruise: 1: with this function; 0: without this function;
   P99: One-key Reset, (long press the MODE button for 5-6 seconds, all parameters are reset to the initial settings of the first start)
   ODO: ODO Reset (short press the MODE button and then long press for 5-6 seconds until the number is zero)

Brief Introduction of Key Functions

2.1 Long press the power button to power on, and then short press the power button, the interface will switch between ODO, TRIP, V, A, E, TM.
2.2 Long press the power button to power off.
2.3 Long press the M button and the power button to enter the mode setting. In the setting interface, short press the power button to switch parameters.
Short press the M button to change the speed, the gear shifts from 0 to the highest gear cyclically. (The gears default to 3 gears, 0 gear motor will not run, 3 gears is highest speed.)

Parameter Modification:
Long press the power button and M button to enter the parameter setting, the same way to exit the parameter setting. The parameter modification will be completed after power off and restart.
2.4 Adjust the accelerator to speed up; Release it to return to the zero position. 2.5 The headlight switch button controls the headlights and rear taillights, long press the M button for 3 seconds to control the side lights of the pedal.

CHARGE YOUR SCOOTER

Charging condition description:
The scooter is fully charged when the LED on the charger changes from red to green

HOW TO RIDE

Wear a helmet, elbow pads and knee pads. Please read the instruction carefully before using. Do not touch the brake system. Refer to the instruction for more information.

1. Turn on the scooter, and check the power indicator.


2. Step on the deck with one foot, and slowly kicks off the other on the ground. When the scooter starts to coast, put both feet on the deck and press the accelerator (the accelerator initiates once the coasting speed exceeds 5km/h).

3. When the scooter is at a full stop, the accelerator automatically turns off. To restart the scooter, it is necessary to repeat step 2.

4. Release the accelerator and the kinetic energy recovery system initiates automatically to brake slowly; And squeeze the brake lever for a sudden brake.

5. Tilt your body to the steering direction as you turn, and slowly turn the handlebar.


FOLDING AND CARRYING

The scooter needs to be turned off before folding. Pull the latch ring outwards, pull down the red handle and press down, then grab the pole and pull down to fold.pole up. Then lift the red handle, pull the latch ring and press the handle to lock the latch.

Hold the handlebar stem with either one hand or both hands to carry.

SPECIFICATIONS

NOTE: data and specifications may vary due to different models, and are subject to change without notice.

TROUBLESHOOTING

SAFETY INSTRUCTIONS

Do not ride in the rain

Do not accelerate when you go downhill

Look out for doors, elevators and other overhead obstacles

Do not press the accelerator when you're walking alongside the scooter

Always steer clear of obstacles

Do not hang bags or other heavy stuff on the handlebar

Keep both feet on the deck all time

Keep your speed between 5–10 km/h when you ride through speed bumps, elevator door stills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.

Do not ride in traffic lanes or residential areas where vehicles and Pedestrians are both allowed

Do not turn the handlebar violently during high-speed riding

Do not ride through puddles or any other (water) obstacle. In such a case please lower your speed and bypass the obstacle.

Do not ride with anyone else, including children

Do not keep your feet on the rear mudguard

Do not touch the disc brake

Do not keep your hands away from handlebar

Do not try riding up or down stairs, and jumping over obstacles

SAFETY REMINDER!

1. The scooter is intended for riders older than 16 years. Do not ride the scooter if you suffer from reduced physical, sensorial or mental capabilities. Riders with a lack of experience or knowledge should drive carefully.
2. This electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles, subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic laws and regulations set forth by government and regulatory agencies.
3. At the same time, you should understand that risks cannot be entirely avoided as others may violate traffic regulations and drive incautiously, The faster the scooter is, the longer it takes to stop. On a smooth surface, the scooter may slip, lose balance, and even result in a fall. Thus it is crucial that you use caution, keep proper speed and distance, especially so when you're unfamiliar with the place.
4. Riding with high speed or a speed that is not appropriate or adequate forthe situation (bad weather conditions, bad surface conditions, or the like) may lead into a potential loss of stability or loss of control. To reduce any risk, you must follow all instructions in this user manual. Be careful when folding and unfolding the product, it may fall and cause injury.
5. Check the scooter before every use. When you note loosen parts, lowbattery alerts, flat tires, excessive wear, strange sounds, malfunctions and other abnormal conditions, stop riding immediately and call for professional support.
6. When riding a scooter, you need to hold the handle with both hands toavoid shaking and falling down.
7. Always place the scooter on its stand on a flat and stable surface. Thescooter must be placed with the stand against the slope to prevent it from tipping over. Never place the scooter with the front facing down the slope, as the stand may close and tip the machine.

DAILY CARE AND MAINTENANCE

Cleaning and storage

If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put on some toothpaste, and brush them with a toothbrush, then wipe them off with a damp cloth. If you see scratches on plastic parts, use sandpaper or other abrasive materials to polish them.

Notes:

• Do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to prevent dire damage.
• Do not wash the scooter with a high-pressure water spray.
• During cleaning, make sure that the scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major problems.
• When the scooter's not in use, keep it indoors where it is dry and cool. Do not put it outdoors for long time. Excessive sunlight, overheating and overcooling accelerate tire aging and compromise the scooter and the battery pack's lifespan.

Maintenance

Always charge before exhausting the battery to prolong the battery's lifespan. The battery pack performs better at normal temperature, and poor when it is below 0°C. For instance, when it is below -20°C, the riding range is only half or less at normal state. When the temperature rises, the riding range restores.

Scooter shall be only be used with original batteries and charging of the Scooter shall only be done by the original charging adapter supplied with the Scooter (or any battery model or charging adapter model approved by the manufacturer as compatible).

Do not place the battery in an environment where the ambient temperature is higher than 50°C or lower than -20°C (e.g., do not leave the scooter or the battery pack in a car under direct sunlight for an extended time).

If the scooter is expected to be left idle for more than 30 days, please fully charge the battery and place it in a dry and cool place. Keep in mind to recharge it every 60 days to protect the battery from potential damage which is beyond limited warranty.

WARRANTY

We provide warranty service and lifetime after-sales consulting service for our electric scooters. Please contact our Customer Service Team to help if you have any problems, we'll reply you at the earliest and provide satisfied solutions for you as soon as possible.

EMAIL: SUPPORT@HIT-WAY.COM

QR code:
