Summary of Contents for HITWAY BK29M

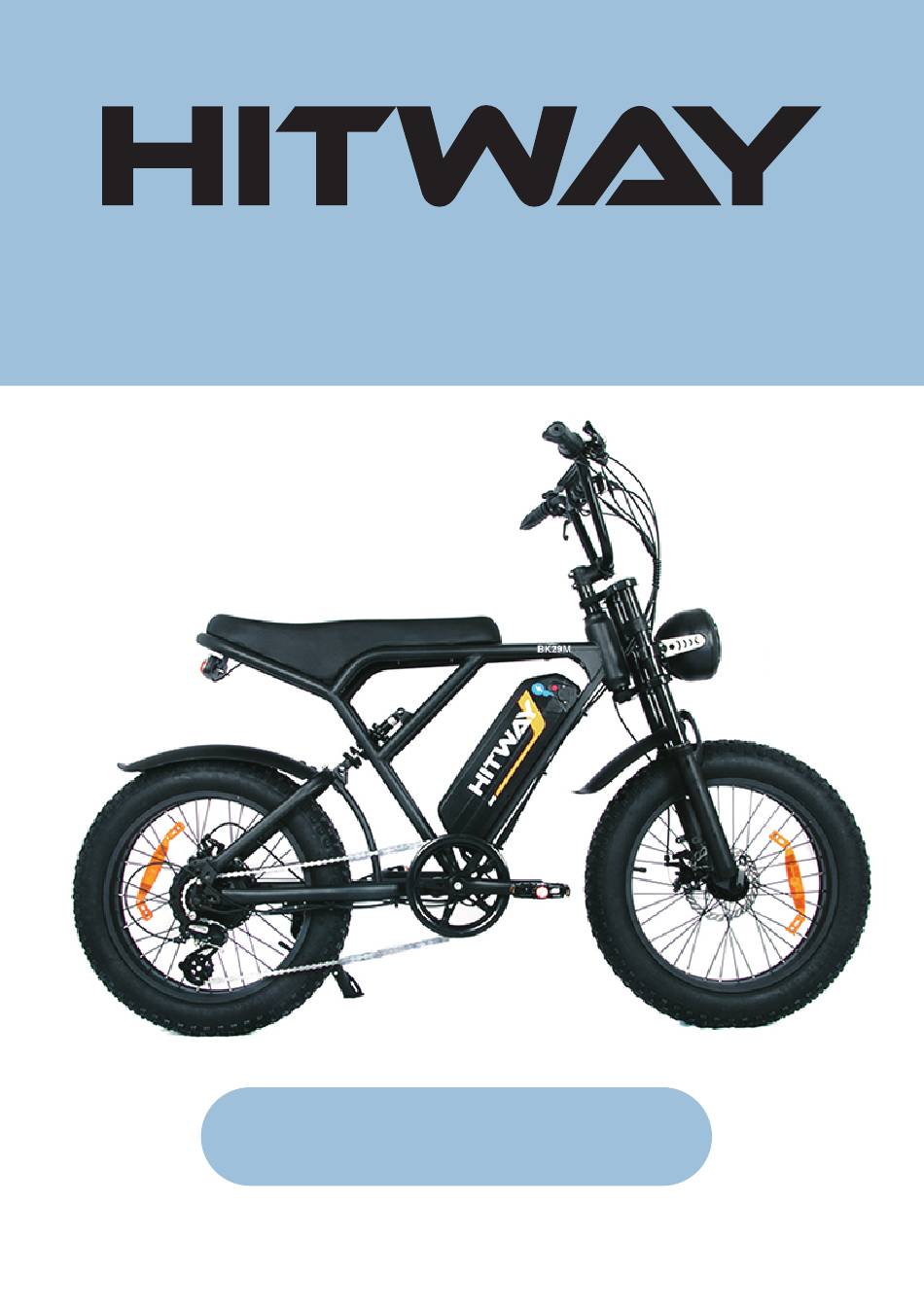

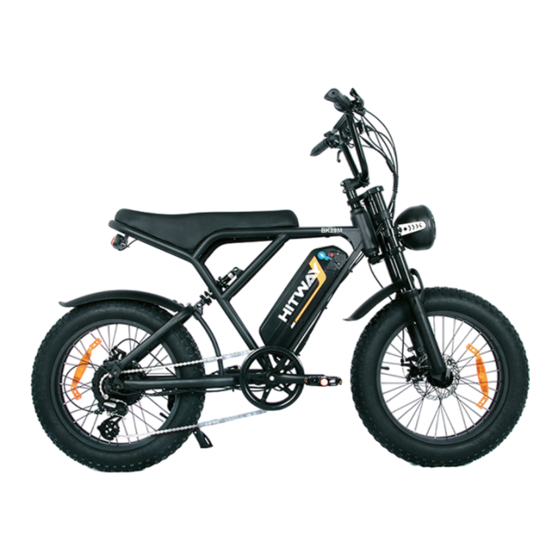

- Page 1 Electric Bike Model: BK29M User's Manual UNK V 3.04.24...
- Page 2 Step 3: Click the "Ask a Question" button. Choose your topic from list displayed. Step 4: Select Contact seller. *If you purchased HITWAY products by other platforms or channels, please also find the corresponding seller contact support. Thanks for your support and patience!
-
Page 3: Battery And Charging
ATTENTIONS Battery And Charging： Charge af Oc~45℃, discharge at -20℃~60℃. keep the battery dry. Do not put the battery in acidic or alkaline liquid. Avoid rain and keep away from fire, heat and high temperature environment. It is strictly forbidden to connect the positive and negative poles of the battery reversely. -
Page 4: Function Introduction
(Model:BK7) Product Function Diagram Product Function Diagram 1. Display 2. Brake lever 3. Handlebar 4. Front fork 5. Front light 6. Tire 7. Wheel reflector 8. Disc brake 9 Battery 10. Pedal 11. Chainring 12. Chain 13. Rear derailleur 14. Flywheel 15. -
Page 5: Product Parameters
PRODUCT PARAMETERS Parameter Standard Version Aluminum alloy Body Material Color Matte Black L*W*H:1630*660*1110mm Unfolding Size Outlook & Dimension Wire Spoke Wheel Hub Form Wheel Size 20 inches Package Size 1360*300*850mm Gross/Net 41.2kgs/33kgs (90.83lbs/72.75lbs) Maximum Load 120kg(264.55lbs) 20MPH Maximum Speed Performance 55-80km(Affected by load, Parameters temperature, road conditions, riding... - Page 6 Multifunctional LCD screen Instrument Display Front Lighting Front disc brake + Braking Method Rear disc brake Features Tire Style Pneumatic tires Tire: 20×4.0 Tire Specifications Valve: American air valve(AV ) Front Fork Front Fork Transmission Remarks: The factors, including Battery power capacity, load, tire pressure, road environment, chain and wheel axle lubrication, etc., will affect the maximum speed;...
- Page 7 Display content introduction 1.Headlight 2.Battery level display 3.Multifunctional display area Total mileage “ODO” , single mileage “TRIPA” , current voltage “VOL” , single riding time “TM” 4.Power assist gear adjustment 0-3 gears adjustable; 0-3 gears digital display 5. Riding mode Cruise: Cruise mode Walk：...
-
Page 8: Error Codes
Error codes: Meaning Normal Battery Under-voltage Motor Failure Controller Failure Instrument Communication/Receiving failure Instrument Communication/Transmission failure Ⅱ. Button introduction: The specific combination of buttons is as follows Introduction to button usage The key operation is divided into short press and long press. Specific operation explanation: 1. - Page 9 2. Modify the assist gear In power-on state: 1） Short press "+", assist gear + 1 2） Short press "-", assist gear - 1 3. Switching speed display area content 1. In the power-on state, short press the " " key to complete the display switching between average speed, maximum speed and instantaneous speed and switch the display data in the multi-function area.
