Summary of Contents for TITAN ARMY P24H2P

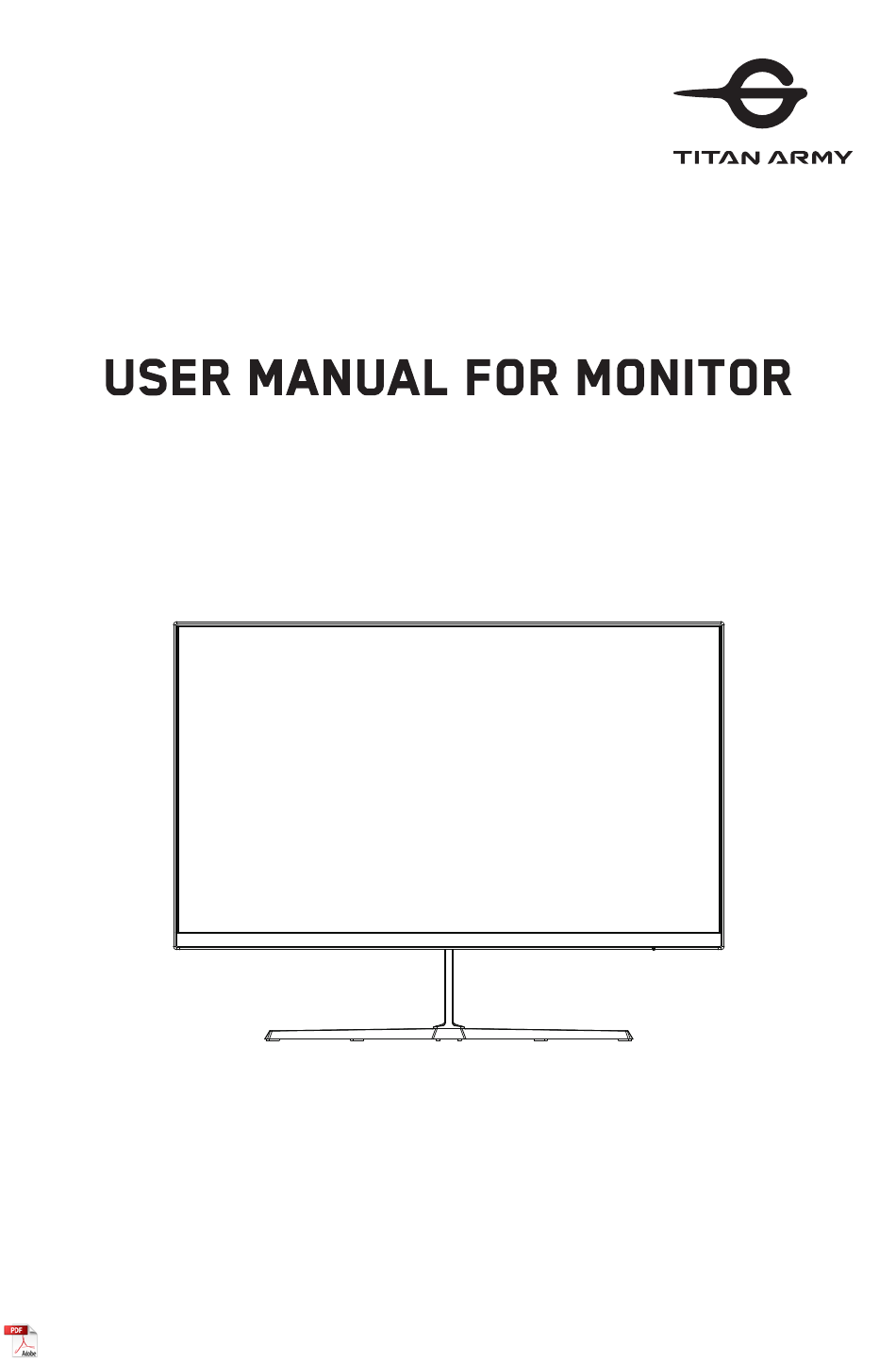

- Page 1 P24H2P...
- Page 3 Precautions Before using this product, please read this User Manual carefully and keep it well Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools. Make sure the monitor is placed on a flat surface. If the monitor falls down, it may cause human injury or device damage.
-
Page 4: Package Content
Package Content Packing list Please check that the package of the monitor contains all parts. If any part is lost, please contact the distributor. The color and shape of parts may vary with models. Figures in this User Manual are for reference only. Cables supplied may vary with purchased products. -
Page 5: Installation Of Base
Installation Installation of base 1.Open the carton package, take out the foam and put it flat on the table top. Keep the foam underneath the monitor before attaching the stand. 2. Take out the bracket and place it on the machine shaft and fix it with two screws. Screws x2 （KM4x10）... - Page 6 Installation of mount 1. Open the carton, take out the product with foam still attahed, and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. 2. Put the monitor in the lower foam cover. Take out the mount adapter and 2 KM4x10 screws and tighten the mount adapter with the screws.
- Page 7 Adjustment of monitor...
- Page 8 Instructions Power button: Turn on/of the monitor Exit/Left button: Enter the Input select. Return to the previous menu to the left, exit the current menu. Down button: Enter the game aiming. Move down the menu option or derease the function value. Right button: Enter the OSD menu.Dial right to selcect a submenu and enter the next menu.
- Page 9 * The bottom interface configuration at the back of the monitor varie with products. * Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department. HDMI interface Use the HDMI-DVI cable to connect the HDMI IN interface Use the HDMI cable to connect the...
-
Page 10: Menu Description
OSD menu Menu description The color and shape of the OSD menu of the actual computer may be slightly different from them shown in the figure. Specifications of the OSD menu may change with improvements of functions without prior notice. Press the menu button on the control panel to access the monitor menu. - Page 11 * Functions of the monitor vary with models, and the functions in this manual are for reference only. Standard FPS1 FPS2 Game Night Vision View Mode Black Stabiliza�on GAMER1 Advanced DCR GAMER2 Blue Light Filter Response Time GAMER3 Recall Movie Text Auto Image Adjust Horizontal Size...
- Page 12 * Functions of the monitor vary with models, and the functions in this manual are for reference only. Volume Audio Adjust Mute Off D-Sub Input Select HDMI 简体中文/繁体中文/한국어/日本語/Türkçe/ Pусский/Suomi/Italiano/Españo/Deutsch/ Language Select Français/English Resolu�on No�ce Resolu�on H Frequency Informa�on V Frequency Pixel Clock Model Number Setup Menu...
-
Page 13: Basic Parameters
Basic parameters Product Name Liquid Crystal Display Product model P24H2P Screen Size 23.8 inches Aspect Ratio 16:9 Viewing Angle 178°(H) / 178°(V) Pixel pitch 0.2745(H) × 0.2745V) mm Contrast ratio 1000:1 (TYP) Colors 16.7M Resolution 1920x1080 Maximum refresh rate 100Hz 2.0A... - Page 17 108.007.xxxxx P24H2P 24H2F-I 泰坦美国 2023.8.24 140*210mm 封面封底120G铜版纸，内页80G铜版纸，单色印刷，骑马钉 程海军 备注:如不够页数，可以在封面封底的内面插入空白页...
