Summary of Contents for TITAN ARMY P27A2R

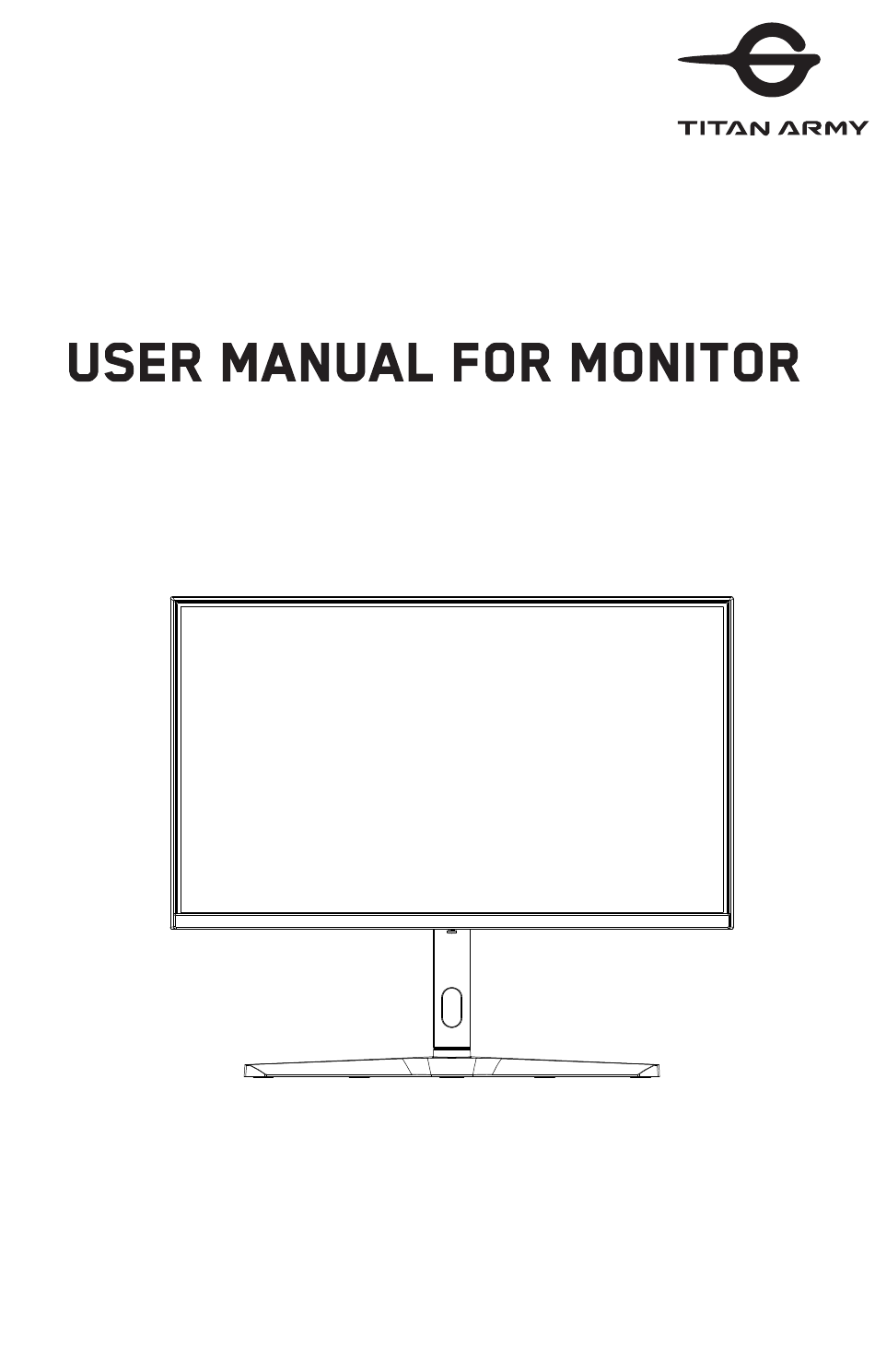

  • Page 1 P27A2R...
  • Page 3 Precautions Before using this product, please read this User Manual carefully and keep it well Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools. Make sure the monitor is placed on a flat surface. If the monitor falls down, it may cause human injury or device damage.

  • Page 4: Package Content

    Package Content Packing list Please check that the package of the monitor contains all parts. If any part is lost, please contact the distributor. The color and shape of parts may vary with models. Figures in this User Manual are for reference only. Cables supplied may vary with purchased products.

  • Page 5: Installation Of Base

    Installation Installation of base 1. Open the package to take out foams and put them on a at tabletop. Base Stand stem 2. Remove the upper foam cover and put it aside, take out the monitor lm bag and put the monitor in the lower foam cover.
  • Page 6 4. Align the base and stand components assembled in Step 3 to the slot of the machine and clip them. (Note: Slide the quick disassembly button up with ngers to take out the base and stand components) 5. Simply hold the stand with hand to stand the monitor upright. Note: During standing of the whole monitor, do not press the liquid crystal screen with hand to avoid damage to the screen.
  • Page 7 Installation of mount 1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Remove the extra parts and the foam covering the monitor. If the monitor was already attached to the stand, remove the stand.
  • Page 8 Adjustment of monitor -90° 90° -20° 20° Rotation angle Vertical angle -90°- +90° -20°(±2.0°)- +20°(±2.0°) -5° 20° 120mm Tilting angle Height angle -5.0°(±2.0°)- +20°(±2.0°) 0-120mm(±5.0mm)

  • Page 9: Description Of Buttons

    Instructions for use Description of buttons Button Function Up rocker button: Quickly enter the contextual mode. Rocker switch button: Press to turn on/o the monitor. Left rocker button:Press to return to the previous menu/ Exit. Down rocker button: The rocker is used to quick enter the Game Crosshair menu. Right rocker button: Press to enter sub-menus/ quickly enter the main menu.

  • Page 10: Cable Connection

    Cable connection: with products. * Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department. HDMI interface Use the HDMI-DVI cable to connect the HDMI IN interface Use the HDMI cable to connect the HDMI IN interface of the product to the DVI OUT interface of a PC.

  • Page 11: Menu Description

    OSD menu Menu description The color and shape of the OSD menu of the actual computer may be slightly di erent from them shown in the gure. Speci cations of the OSD menu may change with improvements of functions without prior notice. Press the menu button on the control panel to access the monitor menu.
  • Page 12 * Functions of the monitor vary with models, and the functions in this manual are for reference only. Standard Mode O /On RTS/RPG Mode O /On FPS Arena Mode O /On MOBA Arena Mode O /On Adaptive-Sync O /On 0-100 Shadow Balance Response Time O /Normal/Fast/Ultrafast...
  • Page 13 * Functions of the monitor vary with models, and the functions in this manual are for reference only. PIP/PBP mode O /PIP Mode/PBP 2Win 1:1 DP1/DP2/HDMI1/HDMI2 Sub-Signal Source Audio Source Auto/DP1/DP2/HDMI1/HDMI2 PIP/PBP PIP Position Top Right/Top Left/Bottom Right/Bottom Left Small/Medium/Large PIP Size O /On Window Swap...

  • Page 14: Basic Parameters

    Basic parameters Product Name Liquid Crystal Display Product model P27A2R Screen Size 27inches（68cm） Aspect Ratio 16:9 Viewing Angle 178°(H) / 178°(V) Pixel pitch 0.2331 (H) × 0.2331 (V) mm Contrast ratio 1000:1 Colors 16.7M Resolution 2560x1440 180Hz Maximum refresh rate Power Supply 12.0V...
  • Page 17 108.007.xxxxx P27A2R 27A2R 泰坦美国 2023.8.24 140*210mm 封面封底120G铜版纸，内页80G铜版纸，单色印刷，骑马钉 程海军 备注:如不够页数，可以在封面封底的内面插入空白页...
