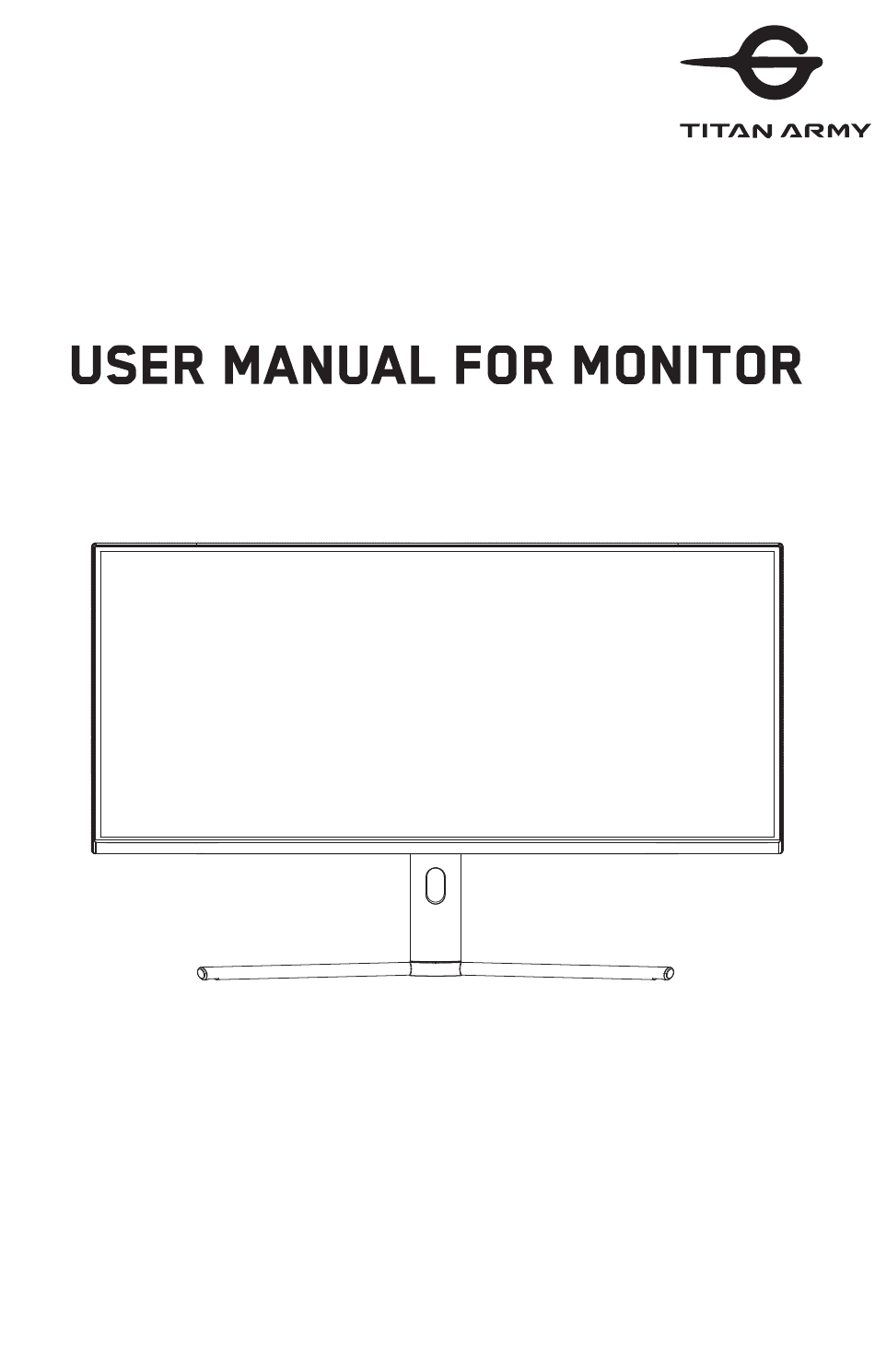

- Page 1 C34CHR...
- Page 2 Precautions Please read this manual carefully before using the product and keep it in a safe place. Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools. Make sure the monitor is placed on a at surface. If the monitor falls down, it may cause human injury or device damage.
-
Page 3: Package Content
Package Content Packing list Please check that the package of the monitor contains all parts. If any part is lost, please contact the distributor. The color and shape of parts may vary with models. Figures in this User Manual are for reference only. Cables supplied may vary with purchased products. -
Page 4: Installation Of Base
Installation Installation of base Open the package and take out the product with the foam still attached. Gently place it on a desktop or table. See picture fasten the stand stem and base with a screw. Press the button to remove the stand plate, Fix the stand plate into the stand stem with the supplied screws. Screw Quick-disassembly button Stand plate... - Page 5 Installation Stand the monitor up on the assembled base.((Note: Do not squeeze the screen directly with your hands during the process of standing up the monitor to prevent it from breaking) Installation of mount Open the package to take out foams and put them on a at tabletop. mount studs Press the button to remove the stand plate, then tighten the included four onto the...
- Page 6 Installation During hanging of the product, do not pinch the screen with hand to avoid damage to the screen. Tips: The mounting hole distance of the mount for the product is 75x75mm. Mount (not supplied) To prevent the monitor on the mount from failing, please install it rmly and protect it fully. Notes: Do not place or hang any object on the mount, and the using height of the mount should be less than 2 meters.
- Page 7 Adjustment of monitor Rotation angle ±15°(±2.0°) -5° 15° 100mm Height adjustment Tilting angle 100mm(±5.0mm) -5.0°(±2.0°) ~ +15°(±2.0°)
-
Page 8: Description Of Buttons
Description of buttons Explanation of indicator light 6. Indicator: Steady blue light indicates that power is on and the monitor is operating normally. A red light indicates no video source, no horizontal or vertical signal detected or low voltage. No light indicates a shutdown condition. - Page 9 Instructions Cabling The bottom interface con guration at the back of the varies with products. Note: lf the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department.
- Page 10 OSD Menu The color and shape of the OSD menu may be slightly di erent of shown. OSD menu may changed by function improvements. The screen display (OSD) menu can be used to adjust settings of the monitor and is shown on the screen after the monitor is powered on and the M button is pressed.
- Page 11 OSD Menu The functions list in this manual are for reference only. Main Menu Sub Menu Option Standard Mode O /On RTS/RPG Mode O /On FPS Arena Mode O /On MOBA Arena Mode O /On Adaptive-Sync O /On Shadow Balance 0-100 Game Settings Response Time...
- Page 12 OSD Menu Main Menu Sub Menu Option PIP/PBP Mode O /PIP Mode/PBP 2Win 1:1 Sub-Signal Source DP1/DP2/HDMI1/HDMI2 Audio Source Auto/DP1/DP2/HDMI1/HDMI2 PIP/PBP PIP Position Top Right/Top Left/Bottom Right/Bottom Left PIP Size Small/Medium/Large Window Swap O /On 简体中文 /English/한국어 / /Portugues do Brasilazil / Deutsch/Nederland/ 日本語...
- Page 13 Parameters Product name Liquid Crystal Display Screen size 34inch Aspect ratio 21:9 Viewing angle 178°(H) / 178°(V) Pixel pitch 0.2317(H)×0.2317(V)mm Contrast ratio 3000:1(TYP) Color 16.7M Resolution 3440 x 1440 Refresh rate 165Hz 100-240V~ 50/60Hz 2.0A Power supply The standard voltage and power supply may vary with countries, please refer to the label at the back of the product.
