Samsung UF-80DX Reference Manual

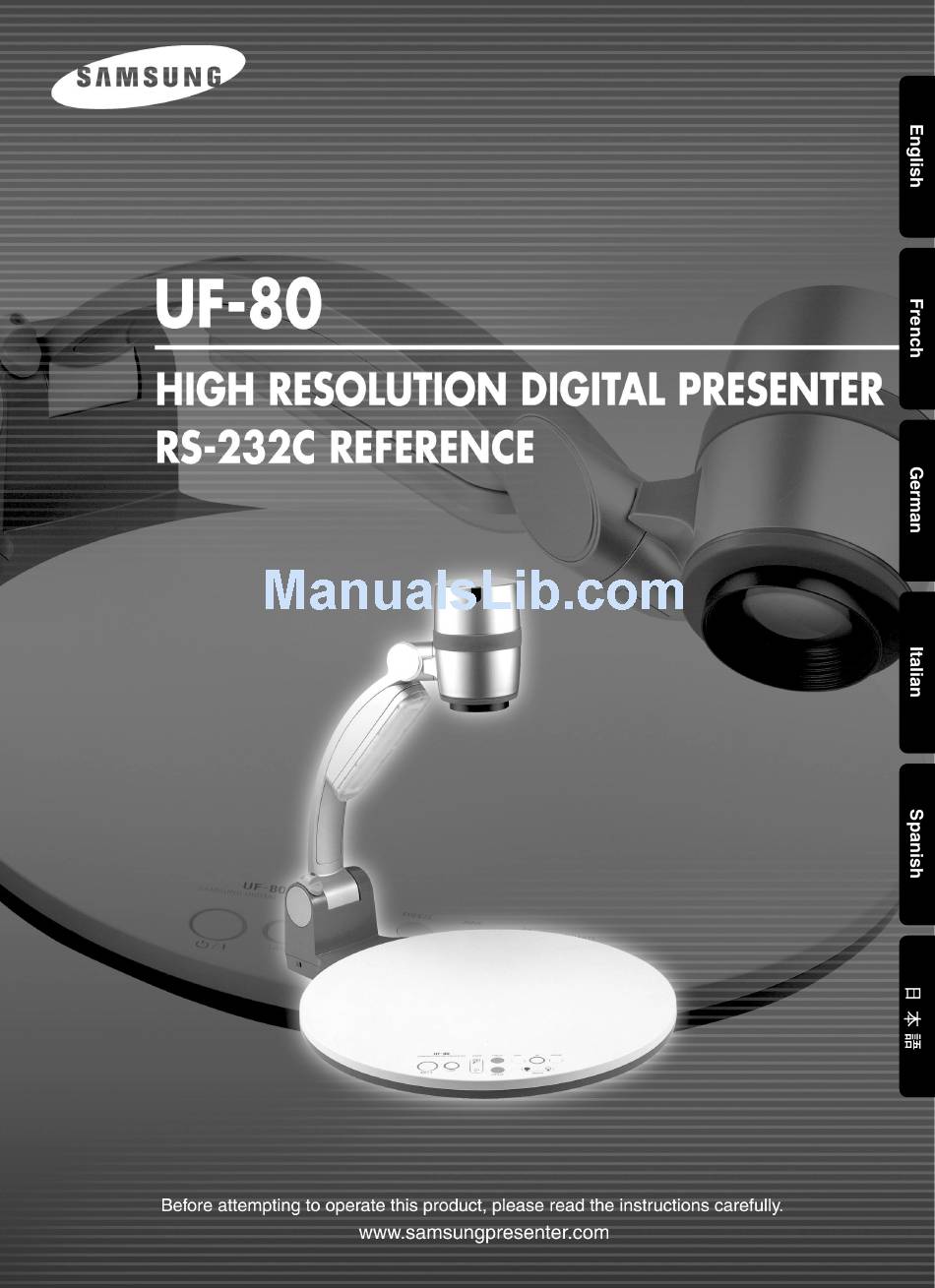

High resolution digital presenter rs-232c reference
Hide thumbs
Also See for UF-80DX:
- Software user's manual (57 pages) ,
- User manual (46 pages) ,
- Quick start manual (2 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Samsung UF-80DX
Summary of Contents for Samsung UF-80DX
- Page 2 UF-80 RS232C PC-side FlowChart Basic Flow - BaudRate: 9600bps - Parity Bit: No Parity Send 6-byte to MICOM - Stop Bit Length: 1-bit [start_code(0xB0)+command code - Character Length: 8-bit (4-byte)+stop_code(0xBF)] - Start Code: 0xB0 - Stop Code: 0xBF - Command Code: 4-byte Receive 6-byte from MICOM (1st Rx data==0xB0) &(6th Rx data==0xBF)
- Page 3 RS232C Command Code (UF-80) PC Transmit Data to MICOM PC Receive Data from MICOM Command Remark 0 x 01 0 x 00 0 x 05 0 x 00 0 x 01 "ACK data" 0 x 05 0 x 00 0 x 02 0 x 00 0 x 05 0 x 00...
- Page 4 RS232C Command Code (UF-80) PC Transmit Data to MICOM PC Receive Data from MICOM Command Remark Freeze ON 0 x 00 0 x 05 0 x 00 "ACK data" 0 x 05 0 x 00 0 x 12 0 x 12 Freeze OFF 0 x 00 0 x 0A...
- Page 5 RS232C Command Code (UF-80) PC Transmit Data to MICOM PC Receive Data from MICOM Command Remark Focus FAR 0 x 00 0 x 05 0 x 00 "ACK data" 0 x 05 0 x 00 0 x 25 0 x 25 Focus NEAR 0 x 00 0 x 0A...
- Page 6 RS232C Command Code (UF-80) PC Transmit Data to MICOM PC Receive Data from MICOM Command Remark Set-Status(Normal) 0 x 61 0 x 00 0 x 00 0 x 00 0 x 61 "ACK data" Status(MSB) Status(LSB) Bit definition of Status Set-Status(Digital) 0 x 62 0 x 00...
- Page 7 RS232C COMMAND CODE (UF-80) Bit Definition of "ACK data" (0,0,0,0,1): Set is executing command by panel-key (0,0,0,1,0): Set is executing command by remocon (0,0,1,0,0): Set is executing command by RS232C (0,1,0,0,0): Set is executing command by USB (1,0,0,0,0): Set is executing command by MOUSE Acknowledgement Bit ("0": no-ACK, "1": ACK) Status Bit Definition by Message-Status Command (0,0,0,0,1): Set is executing command by panel-key...
- Page 8 RS232C Command Code (UF-80) Status Bit Definition by Set-Status Command - LSB 8bit (0): lamp OFF (1): lamp ON (0,0,0): internal input (1,0,1): NO SYNC(EXT) (1,1,1): external input - MSB 8bit (0): System Power OFF (1): System Power ON (0): Aperture ON (1): Aperture OFF (0): Frequency 75Hz (1): Frequency 60Hz...
- Page 9 RS232C COMMAND CODE (UF-80) Status Bit Definition by Set-Status(Digital) Command - LSB 8bit Divide position information (0,0):shift1 (0,1):shift2 (1,0):shift3 Divide or Recall number information (0,0,0,1): number1 (0,0,1,0): number2 (0,1,1,1): number7 (1,0,0,0): number8 - MSB 8bit (0): image divide OFF (1): image divide ON (0): 3X3 multi-screen OFF (1): 3X3 multi-screen ON (0,0):image rotate OFF (0,1):image rotate 90°...
- Page 10 Memo...
