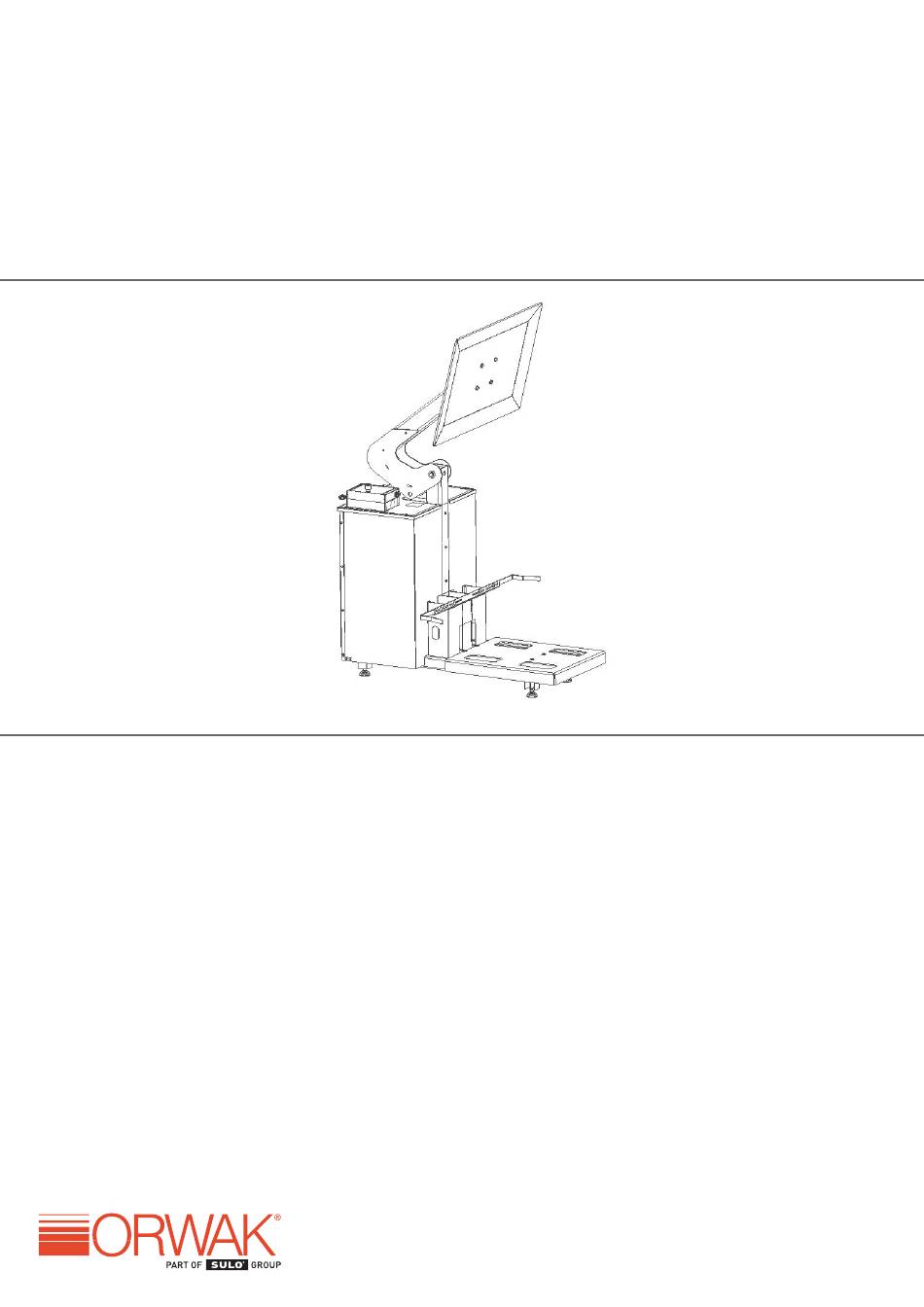

- Page 1 Edition 9, From serial no. 121200- Edition 1.0, From serial no. 170799- Publ. no 4872223-00 Publ. no 1000359-00 OM 3110, 2015-12 OM1100, 2024-12 ORWAK 1100 ORIGINAL OPERATING INSTRUCTIONS...
-
Page 3: Table Of Contents
English CONTENTS Safety information..Parts of the machine..Safety......Control panel ....Installation....Operating instruction..Weekly inspection and maintenance ....Technical specification.. Dimensional drawing..Transport ....... CE......Hydraulic diagram Electrical diagram IDENTIFICATION Svetsaregatan 4 Svetsaregatan 4 576 33 Sävsjö 576 33 Sävsjö Sweden Sweden Type... - Page 4 English OPERATOR WARNING & DUTY This manual must be available permanently near the machine. Each operator must read and follow the full instruction of this manual before being authorize. All operator must absolutely study and fully understand the operator’s manual, specifically pay a particular attention to the safety procedure section.
-
Page 5: Parts Of The Machine
English PARTS OF THE MACHINE Press plate Serial number Emergency stop, optional with key lock Operation selector Start button Vascular support Lifting table Electrical box can be placed at oposite side. Adjustable feet... -
Page 6: Safety
English SAFETY Please read the operating instructions BEFORE operating the machine. Our warranty/product responsibility requires that: • instructions are followed, and that no conversion or modification is carried out. • original spare parts, and hydraulic oils and lubricants recommended by the machine manufacturer are used. -
Page 7: Range Of Application
English RANGE OF APPLICATION The machine is a hydraulically operated baler intended for compacting bulky materials such as cardboard, paper and plastic. The machine may only be used in areas that have a roof, protection against wind, and normal lighting. The machine is intended for use within the temperature range -10°C to +40°C. -
Page 8: Installation
English INSTALLATION WARNING! Only the operator is 1. Remove the packaging. allowed in the working area of the machine! 2. Place the machine in the intended location and en- sure that it is on a level sur- face with sufficient working space all around. -
Page 9: Operating Instruction
English OPERATING INSTRUCTIONS Press the material by lowering Place the bin Raise the press plate to add the press plate. Hold down the and replenish materials. more material. start button and turn the knob down. ATTENTION! Be aware that material can end up above the press plate when it is in the lowest position. -
Page 10: Dimensional Diagram
English 1000 1000 DIMENSIONAL DIAGRAM TECHNICAL SPECIFICATIONS GENERAL DATA Total weight: 293 kg 1000 Transport height: 1600 mm Dimensions: Mini working height: 1700 mm Height ( 2080 mm Pressplate up Height ( 1563 mm Pressplate down Width: 1240 mm Depth: 1378 mm Recommended space for machine in operation (working area):... -
Page 11: Ec Declaration Of Conformity
English EC DECLARATION OF CONFORMITY Orwak AB Svetsaregatan 4 Sweden SE-576 33 Sävsjö, Tel: 46-382-15700 Tel: 46-382-15700 declare under our sole responsibility that the product model 4901100-00 4901100-100 4901100-S00 - 4901100-S100 to which this declaration relates is in conformity with the following standards or other normative documents in accordance with the provisions of Directives 2006/42/EEC (Machinery Directive) 2014/60/EU (EMC Directive) - Page 12 HYDRAULIKSCHEMA 3110 HYDRAULIKSCHEMA 3110 ydraulic diagram 85 bar Description Item Svenska English Deutsch Français Español 1 Elmotor Electrical motor Elektrischer Motor Moteur électrique Motor eléctrico 2 Pump Pump Pumpe Pompe Bomba 3 Sugfilter Suction filter Saugsieb Filtre Filtro 4 Överströmsventil Overload valve Ventil Soupape...
- Page 13 lEctrical diagram...
- Page 14 lEctrical diagram...
- Page 16 COMPACTION SOLUTIONS FOR MOST TYPES OF WASTE ORWAK develops solutions for sorting and recycling waste ORWAK develops solutions for sorting and recycling waste materials that improve business efficiency, contribute to a materials that improve business efficiency, contribute to a cleaner working and natural environment to provide the best cleaner working and natural environment to provide the best total waste handling economy.
