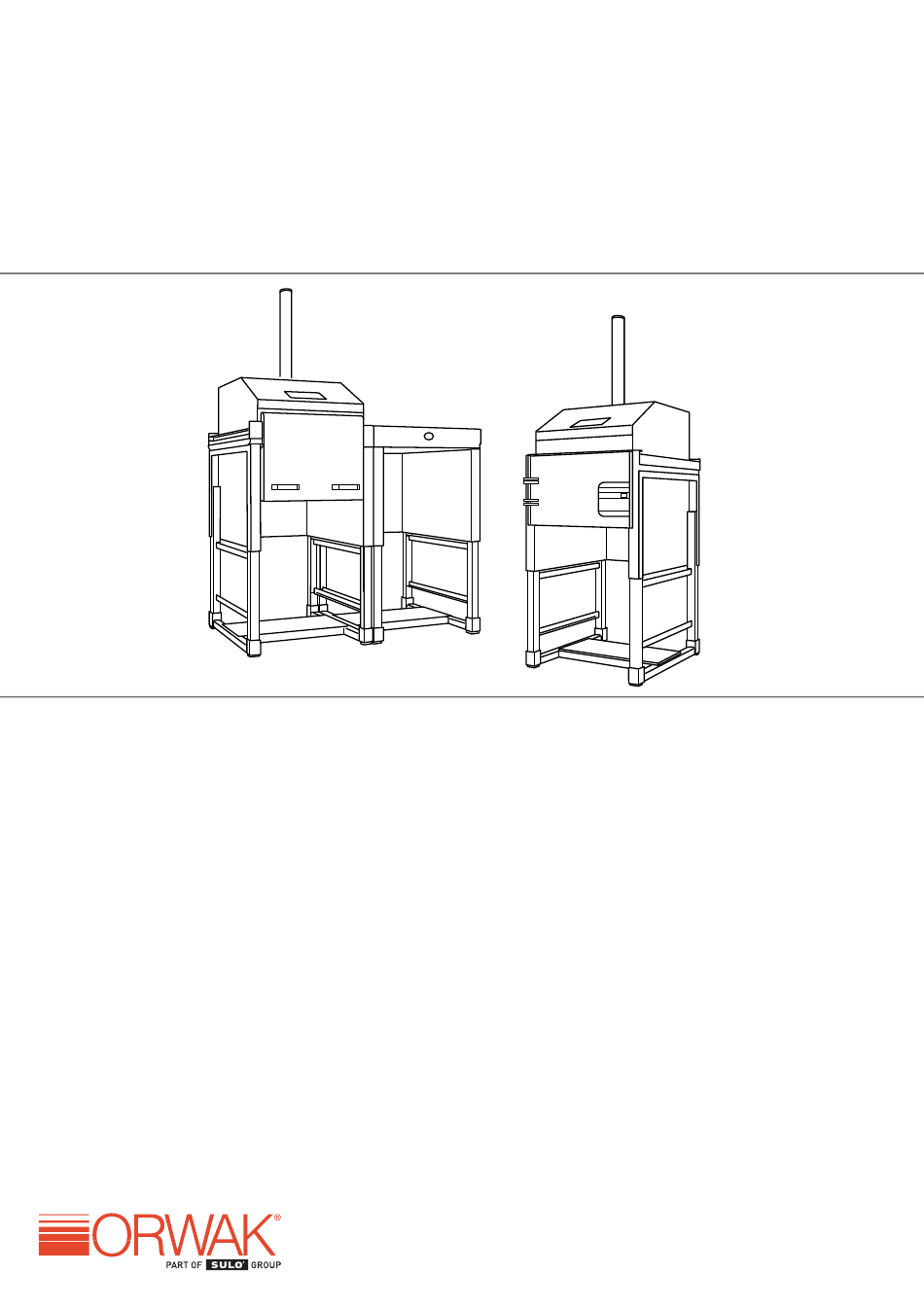

- Page 1 Edition 3.6, From serial no. 134235- Edition 9, From serial no. 121200- Publ. no 4875571-00 Publ. no 4872223-00 OM 4240 OM 3110, 2015-12 4360, 2023-02 • ORWAK 4240 • 4360 ORIGINAL OPERATING INSTRUCTIONS...
- Page 3 English English CONTENTS CONTENTS Safety information... Safety information... 14 Parts of the machine..Parts of the machine..15 Safety......Safety......16 Control panel ....Control panel ....Operating instruction..Operating instruction..18 Weekly inspection and Weekly inspection and maintenance ....maintenance ....
- Page 4 English OPERATOR WARNING & DUTY This manual must be available permanently near the baler. Each operator must read and follow the full instruction of this manual before being authorize. All operator must absolutely study and fully understand the operator’s manual, specifically pay a particular attention to the safety procedure section.
-
Page 5: Parts Of The Machine
English PARTS OF THE MACHINE Front shutter Emergency stop Press unit Control panel Shutter Indication plate Press plate Apron (double machine) Wheel Rear shutter Friction plate Foot Hydraulic unit 15 5... -
Page 6: Safety Features
English SAFETY Please read the operating instructions BEFORE operating the machine. Our warranty/product responsibility requires that: • instructions are followed, and that no conversion or modification is carried out. • original spare parts, and hydraulic oils and lubricants recommended by the machine manufacturer are used. -
Page 7: Range Of Application
English RANGE OF APPLICATION The machine is a hydraulically operated baler intended for compacting bulky materials such as cardboard, paper and plastic. The machine may only be used in areas that have a roof, protection against wind, and normal light- ing. - Page 8 English OPERATING INSTRUCTIONS WARNING! Only the operator is allowed in the working area of the machine! SINGLE Compaction Lock the front shutter before start. 1 Distribute the waste evenly inside the bin. 2 Place the bin in the machine and close the door. The start button will glow green - press the start button for a compaction cycle.
-
Page 9: Weekly Inspection And Maintenance
English WEEKLY INSPECTION AND MAINTENANCE NOTE! During inspection and maintenance, service and the removal of trapped waste etc: 1. Disconnect the power to the machine by removing the plug from the wall socket. 2. Do not work inside the machine. ANNUAL CONTROL The annual machine inspection should be performed by an authorized service technician approved by the manufacturer. -
Page 10: Technical Specifications
English TECHNICAL DIMENSIONAL DIAGRAM SPECIFICATIONS SINGLE 4240 4360 GENERAL DATA Total weight single: 220 kg 240 kg Total weight double: 320 kg 360 kg Transport height: 2,100 mm 2,100 mm Dimensions: A - Height, min: 2,100 mm 2,100 mm max: 2,275 mm 2,275 mm B - Width single:... - Page 11 English TRANSPORT SINGLE DOUBLE...
- Page 12 English 4240 4360 SINGLE INSTALLATION Box 58 576 22 Sävsjö Sweden Type Date Product No Weight Serial No Temperature range of use (standard oil): +5°C to +40°C +40 °C Temperature range of use (special oil): -10°C to +40°C +5 °C -10 °C ** = 55-85 mm Oil-...
-
Page 13: Ec Declaration Of Conformity
English EC DECLARATION OF CONFORMITY Orwak AB Svetsaregatan 4 SE-576 33 Sävsjö, Sweden Tel: 46-382-15700 Tel: 46-382-15700 declare under our sole responsibility that the product model 4904240-00 – 4904240-99 4904240-S001 – 4904240-S999 4904360-00 – 4904360-99 4904360-S001 – 4904360-S999 to which this declaration relates is in conformity with the following standards or other normative documents in accordance with the provisions of Directives 2006/42/EEC (Machinery Directive) 2014/30/EU (EMC Directive) - Page 14 lEctrical diagram...
- Page 15 lEctrical diagram...
- Page 16 lEctrical diagram...
- Page 17 3110 ydraulic diagram HYDRAULIKSCHEMA / HYDRAULIC DIAGRAM / HYDRAULISCHES SYSTEM / DIAGRAMME HYDRAULIQUE / ESQUEMA HIDRÁULICO Item Description English Electrical motor Item Description Pump Svenska English Deutsch Français Español Suction filter 1 Elmotor Electrical motor Elektrischer Motor Moteur électrique Motor eléctrico Overload valve 2 Pump Pump...
- Page 20 COMPACTION SOLUTIONS FOR MOST TYPES OF WASTE ORWAK develops solutions for sorting and recycling waste ORWAK develops solutions for sorting and recycling waste materials that improve business efficiency, contribute to a materials that improve business efficiency, contribute to a cleaner working and natural environment to provide the best cleaner working and natural environment to provide the best total waste handling economy.
