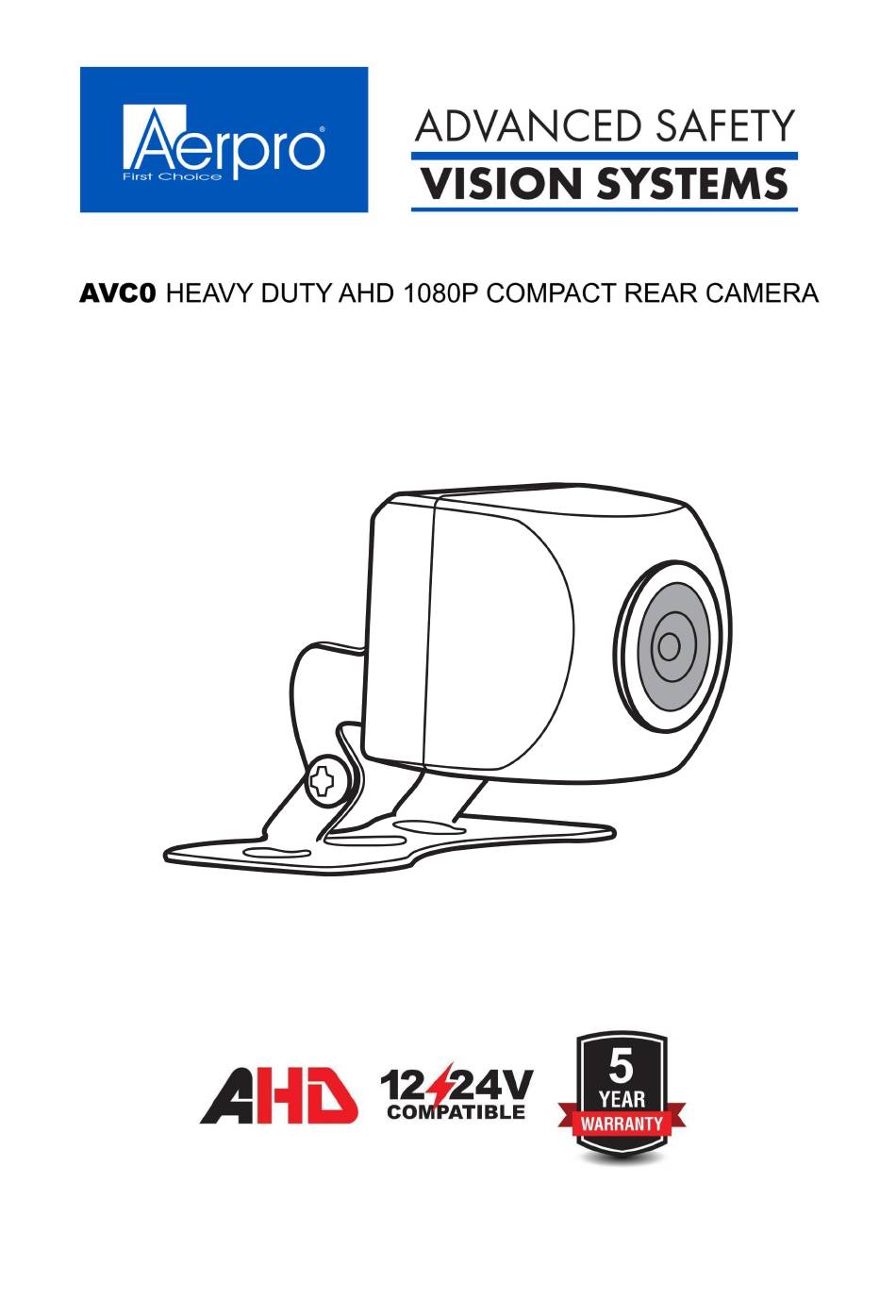

Aerpro AVC0 User Manual

Heavy duty ahd 1080p compact rear camera

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVC0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aerpro AVC0

  • Page 2: Table Of Contents

    7. Technical Support …………………………………………………………. page 7 8. Warranty and Support …………………………………………….………. page 8 Thank you for choosing the Aerpro AVC0 Heavy Duty AHD 1080p Compact Rear Camera. Aerpro Advanced Safety Vision Cameras are engineered to enhance driving safety by providing clear, high-quality images of the surrounding environment.
  • Page 3: Product Specifications

    ● Model Number: AVC0 ● Camera Type: Heavy Duty Compact Rear Camera (Butterfly) ● Resolution: 1080p Full AHD (Analog High Definition) ● Viewing Angle: ○ Horizontal 140° ○ Vertical 75° ○ Diagonal 158° ● Waterproof Rating: IP68 (dustproof and water-resistant) ●...
  • Page 4: Camera Viewing Angle And Orientation

    ● Ensure the camera lens is angled properly to capture a full side or rear view. Note: The correct orientation is determined by positioning the Aerpro logo towards the sky. - refer to Camera Viewing Angle and Orientation above. Note: Above images are examples of where the camera can be installed.
  • Page 5: Wiring Instructions

    Wiring Instructions 1. Connect the power cable to the vehicle's power system (12V or 24V DC). 2. Route the video cable to the dashboard monitor. Secure all connections and test the camera before finalizing installation. 4. Use cable clips to secure the wires and prevent loose connections. 5.
  • Page 6: Troubleshooting

    Issue Possible Cause Solution Check and secure all wiring No image on the screen Loose or disconnected wiring connections No 12volt blown fuse Inspect and replace fuse if necessary Camera not operating Test with another camera if possible Malfunctioning display Test display with another input source Flickering or distorted image Loose connections...
  • Page 7: Technical Support

    If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia. TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
  • Page 8: Warranty And Support

    TDJ Australia Pty Ltd (Aerpro) will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to TDJ Australia Pty Ltd (Aerpro), will be borne by you.
