Summary of Contents for Aerpro AVC8
-
Page 2: Table Of Contents

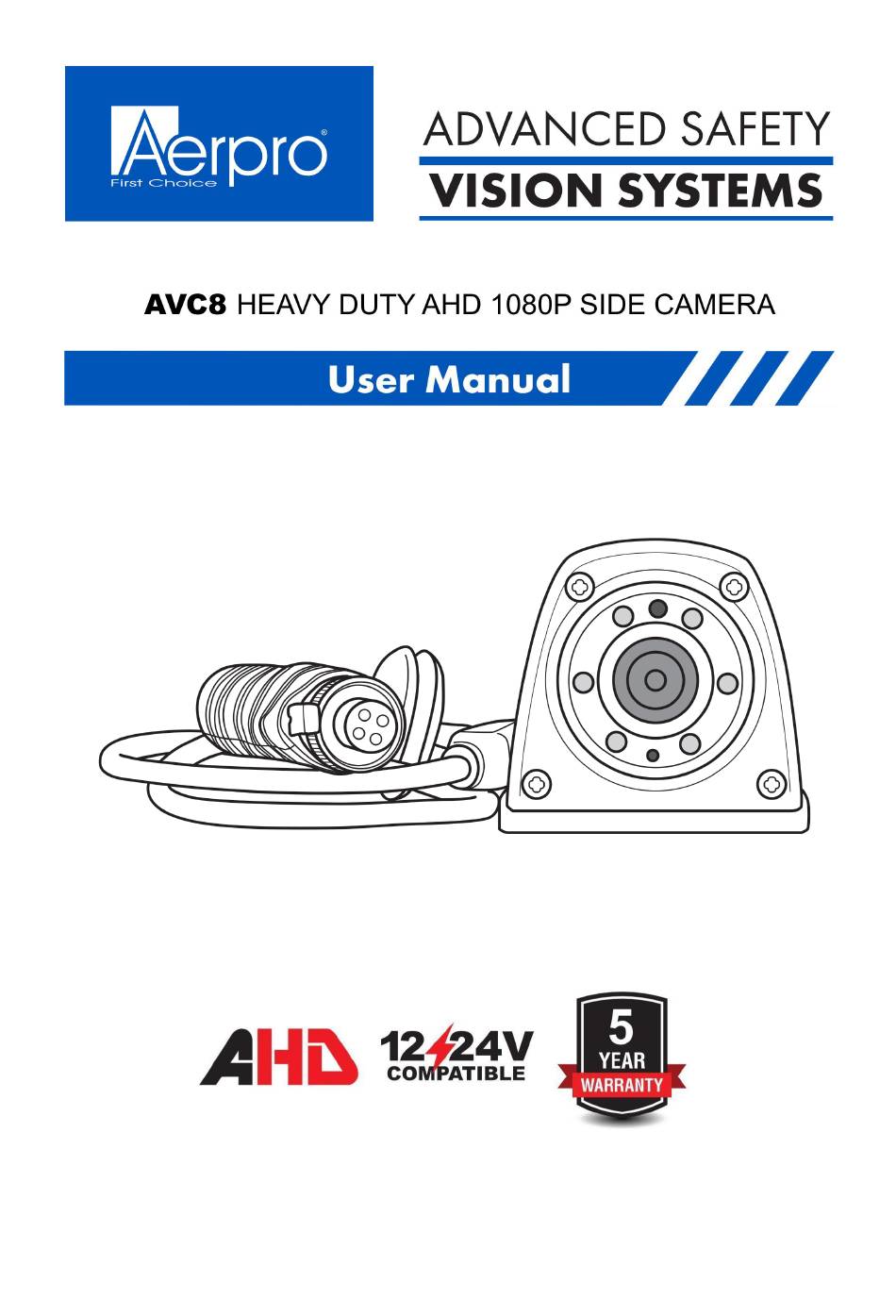

7. Technical Support …………………………………………………………. page 7 8. Warranty and Support …………………………………………….………. page 8 Thank you for choosing the Aerpro AVC8 Heavy Duty AHD 720p/1080p Side Camera. Aerpro Advanced Safety Vision Cameras are engineered to enhance driving safety by providing clear, high-quality images of the surrounding environment. -
Page 3: Product Specifications
● Model Number: AVC8 ● Camera Type: Heavy Duty Side Camera (Surface) ● Resolution: 720p/1080p Full AHD (Analog High Definition) ● Viewing Angle Degree: ○ Horizontal 110° ○ Vertical 60° ○ Diagonal 130° ● Night Vision: 6 IR LEDs for enhanced low-light performance ●... -
Page 4: Camera Viewing Angle And Orientation
Camera Viewing Angle and Orientation ● The camera should be adjusted to provide a 110° viewing angle for optimal visibility. ● Avoid obstructions that may block the camera’s field of view. ● Route cables along the vehicle’s existing wire channels, where possible to, prevent damage. ●... -
Page 5: Wiring Instructions
Wiring Instructions 1. Connect the power cable to the vehicle's power system (12V or 24V DC). 2. Route the video cable to the dashboard monitor. Secure all connections and test the camera before finalizing installation. 4. Use cable clips to secure the wires and prevent loose connections. 5. -
Page 6: Maintenance And Care
● Regularly clean the camera lens for clear visibility. ● Avoid exposing the camera to excessive force or impact. ● Check and secure all wiring connections periodically. Issue Possible Cause Solution Check and secure all wiring No image on the screen Loose or disconnected wiring connections No 12volt blown fuse... -
Page 7: Technical Support
If you need assistance setting up or using your Aerpro product now or in the future, call Aerpro Support Australia. TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference. -
Page 8: Warranty And Support
TDJ Australia Pty Ltd (Aerpro) will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to TDJ Australia Pty Ltd (Aerpro), will be borne by you.
